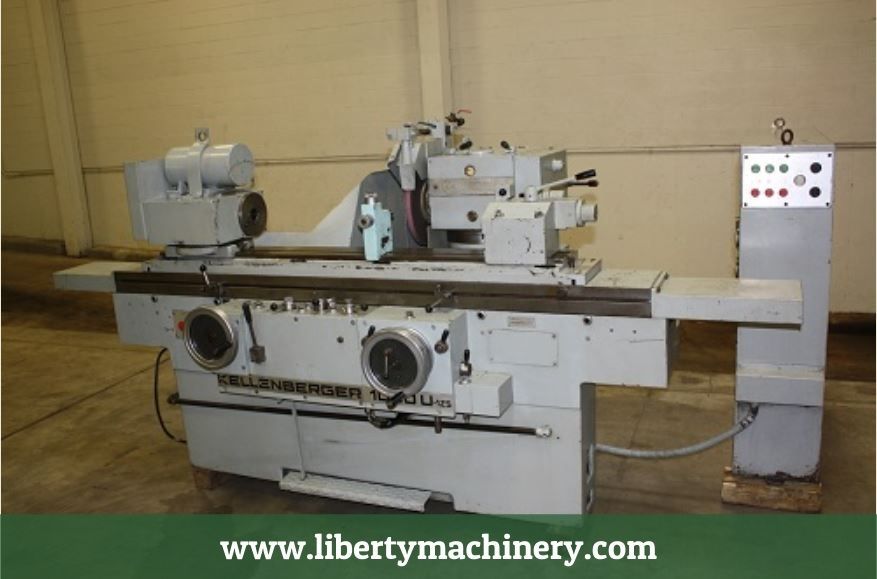

Kellenberger 1000U
If you have a Kellenberger 1000U-125 Cylindrical Grinder for sale, we hope you’ll follow this LINK and fill out a quick for sale form and we’ll contact you with a free quote.
We’re sorry, but this machine has been sold. Please click HERE and we’ll let you know when we have another available or click HERE to check our current inventory for similar machines.
Serial No. 32.461.2297
New – 1986
Distance Between Centers…………39-3/8″
Distance Between Centers w/ Tailstock Overhanging…………47-1/4″
Height of Centers…………4.96″
Swing Over Table…………10″
Longitudinal Table Travel…………51-13/16″
Longitudinal Table Travel Per Turn of Handwheel – Coarse…………25/32″Longitudinal Table Travel per Turn of Handwheel – Fine……………….3/32″
Longitudinal Table Speed – Hydraulic…………0.6 – 240 IPM
Table Swivels…………9 Degrees
Reversing Dwell…………0 to 5 Seconds
Actual Dimensions – Machine…………114″L X 72″W X 60″H
Actual Dimensions – Electrical Cabinet…………48″L X 12″W X 63″H
Actual Dimensions – Coolant System…………42″L X 20″W X 17″H
Actual Dimensions – Hydraulic System…………34″L X 18″W X 24″H
Actual Dimensions – Filter System…………10″L X 10″W X 34″H
Kellenberger 1000U Grinding Wheel Infeed:
Graduation of Feed Scale………………………………………0.0002″
Automatic Feed – Maximum…………………………………………0.036″
Automatic Infeed Per Table Reversal…………………….0.00005″ to .0012″
Infeed for Plunge Grinding……………………………..0.00004″ to .002″
Micrometer Stop, 1 Graduation…………………………………..0.00005″
Kellenberger 1000U Universal Grinding Spindle Head:
Transverse Movement of Wheel Slide……………………………….11-1/4″
Hydraulic Rapid Wheel Slide Advance/Retraction Stroke……………..1-37/64″
Grinding Wheel Head Motor………………………………………….4 HPGrinding Wheel Speeds (4)………………………1500, 1700, 2200, 3600 RPM
Grinding Wheel – Cylindrical Grinding……………………….16″ X 2″ X 5″
Grinding Wheel – Surface Grinding…………………………10″ X 3/4″ X 3″
Swivel of Grinding Head w/Locking Every 90 Degrees……………..270 Degrees
Vert. Motion of Grinding Spdl. Head, Height of Centers….4-59/64″ – 13-25/32″
Workhead:
Variable Spindle Speed …………………………………….10 – 400 RPM
Workhead Swivles……………………………………………360 Degrees
Inside Taper of Work Spindle………………………………………#5 MT
Approximate Floor Space Required………………………106″L X 64″W X 66″H
Approximate Weight…………………………………………..6,500 Lbs.
Kellenberger 1000U EQUIPPED WITH:
Dual Left-Hand and Right-Hand Wheel Mounting
Internal Grinding Spindle
Table Mount Dresser
Hydraulic Connection for Tailstock
Infinitely Variable Table Traverse
Automatic Infeed
Plunge Infeed
Rapid Wheel Advance and Retraction Sparkout
Coolant System with Filtration (Paper Media Cloth)
*Preliminary Specifications Kellenberger 1000 Subject to Verification.
Click HERE and HERE if you would like to read more about cylindrical grinding machines.
