New – 1989
Serial No. 32.467.2911
SPECIFICATIONS:
Distance Between Centers………………………………………..39-3/8″
Distance Between Centers w/ Tailstock Overhanging………………….47-1/4″
Height of Centers………………………………………………..4.96″
Swing Over Table ………………………………………………….10″
Longitudinal Table Travel……………………………………..51-13/16″
Longitudinal Table Travel Per Turn of Handwheel – Coarse…………….25/32″
Longitudinal Table Travel per Turn of Handwheel – Fine……………….3/32″
Longitudinal Table Speed – Hydraulic………………………..0.6 – 240 IPM
Table Swivels………………………………………………..9 Degrees
Reversing Dwell………………………………………….0 to 5 Seconds
Actual Dimensions – Machine…………………………..114″L X 72″W X 60″H

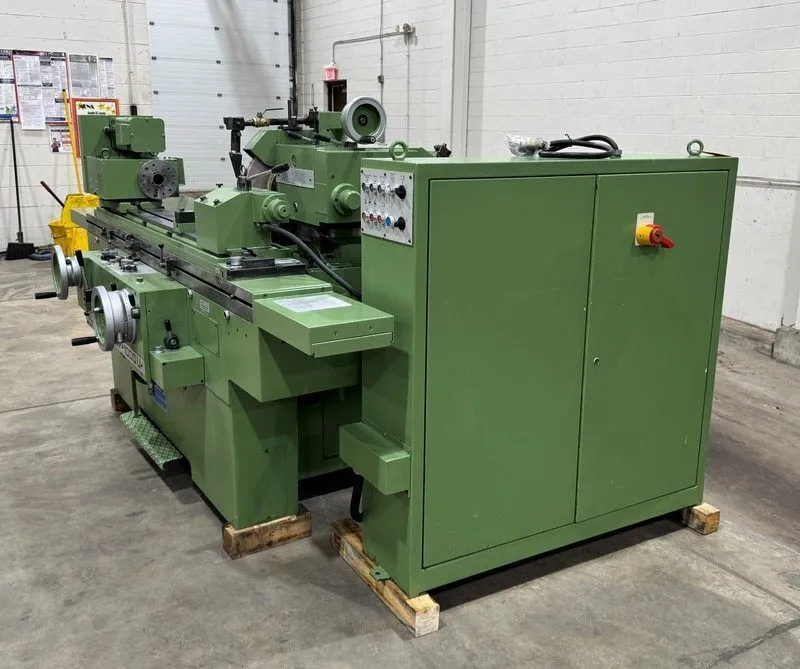

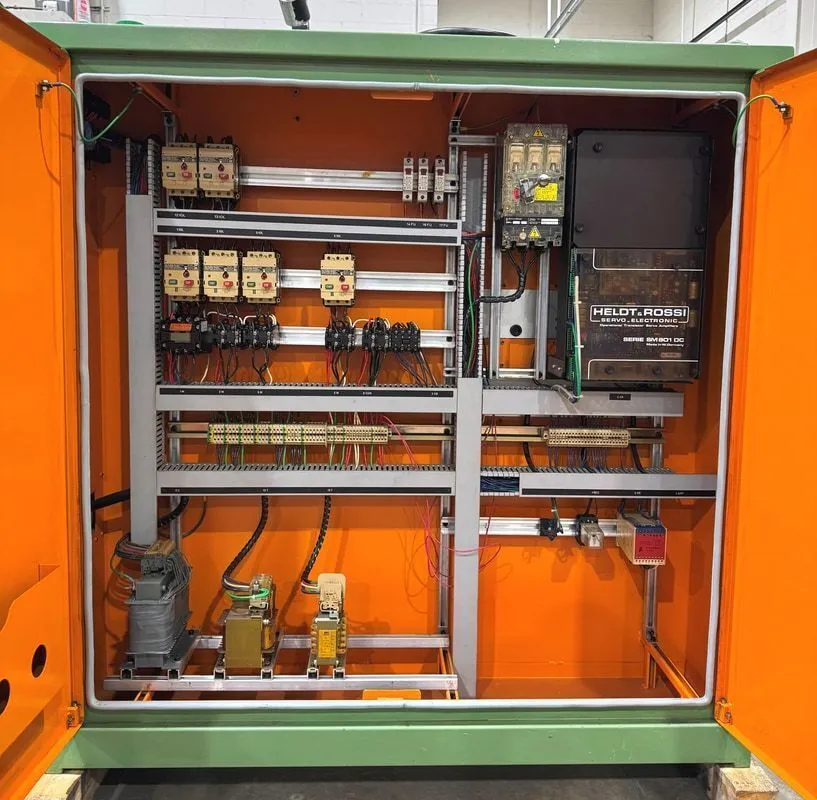

Actual Dimensions – Electrical Cabinet………………….48″L X 12″W X 63″H

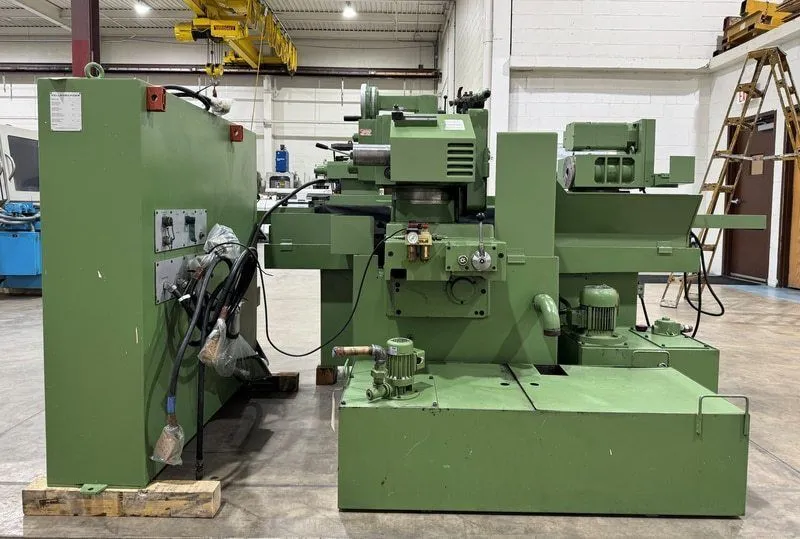

Actual Dimensions – Coolant System……………………..42″L X 20″W X 17″H
Actual Dimensions – Hydraulic System……………………34″L X 18″W X 24″H
Actual Dimensions – Filter System………………………10″L X 10″W X 34″H
Grinding Wheel Infeed:
1 Graduation of Feed Scale………………………………………0.0002″
Automatic Feed – Maximum…………………………………………0.036″
Automatic Infeed Per Table Reversal…………………….0.00005″ to .0012″
Infeed for Plunge Grinding……………………………..0.00004″ to .002″
Micrometer Stop, 1 Graduation…………………………………..0.00005″

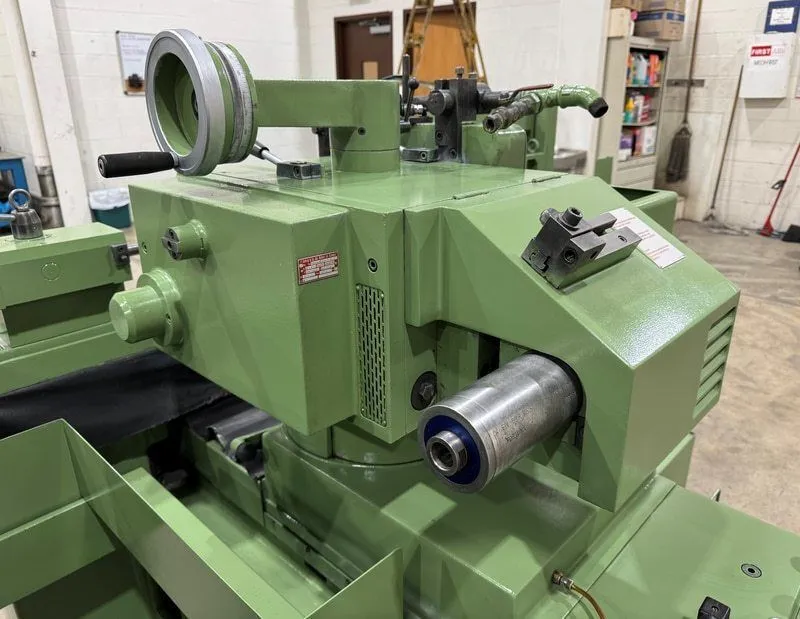

Universal Grinding Spindle Head:
Transverse Movement of Wheel Slide……………………………….11-1/4″
Hydraulic Rapid Wheel Slide Advance/Retraction Stroke……………..1-37/64″
Grinding Wheel Head Motor………………………………………….4 HP
Grinding Wheel Speeds (4)………………………1500, 1700, 2200, 3600 RPM
Grinding Wheel – Cylindrical Grinding……………………….16″ X 2″ X 5″
Grinding Wheel – Surface Grinding…………………………10″ X 3/4″ X 3″
Swivel of Grinding Head w/Locking Every 90 Degrees……………..270 Degrees
Vert. Motion of Grinding Spdl. Head, Height of Centers….4-59/64″ – 13-25/32″

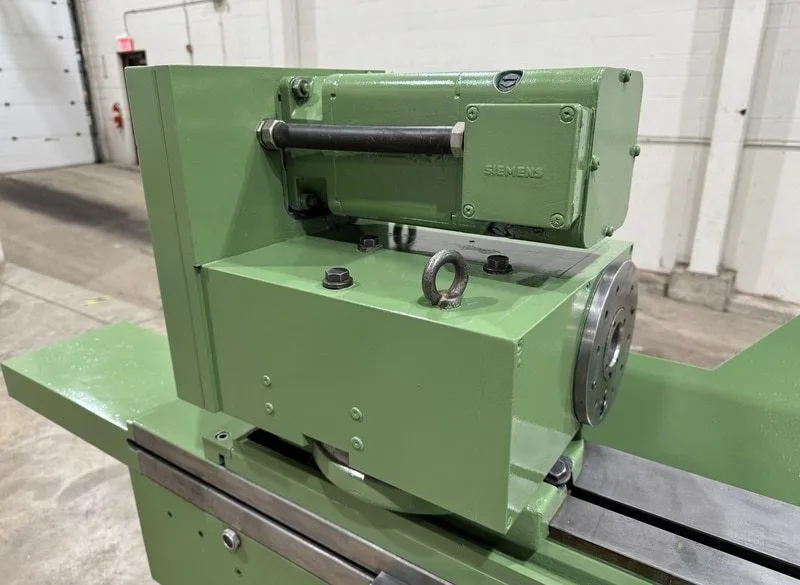

Workhead:
Variable Spindle Speed …………………………………….10 – 400 RPM
Workhead Swivles……………………………………………360 Degrees
Inside Taper of Work Spindle………………………………………#5 MT
Approximate Floor Space Required………………………106″L X 64″W X 66″H
Approximate Weight…………………………………………..6,500 Lbs.

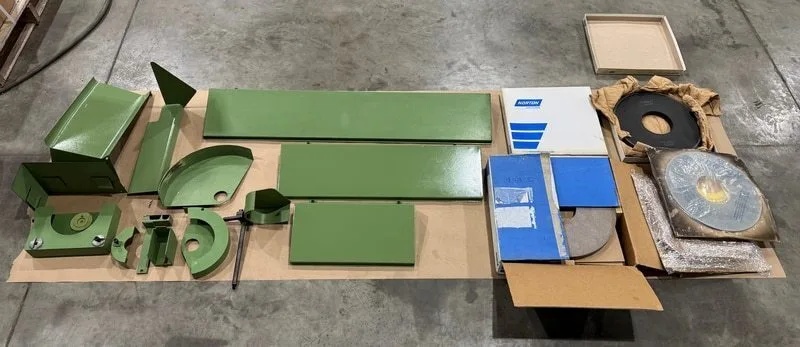

EQUIPPED WITH:
Three-wheel design
Belt driven ID spindle
ID spindle wheelguard

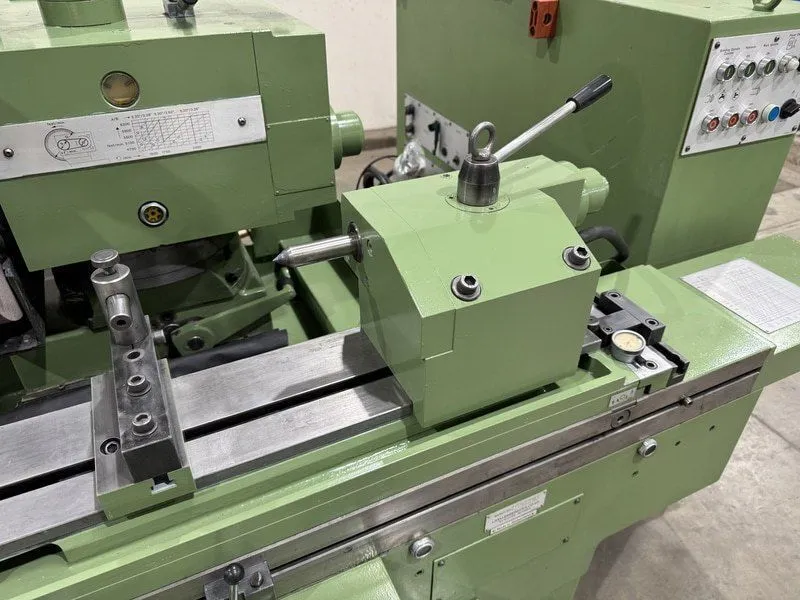

Hydraulic tailstock w/foot treadle
Table mount wheel dresser
Infinitely Variable Table Traverse
Automatic infeed
Plunge infeed
Dial guage stop for table swivel
Rapid wheel advance and retraction
Sparkout timer
Coolant system w/filtration
Hydraulic System
Grinding wheel balancing stand
Grinding wheel arbor
9.5″ Face Plate
Misc. Grind Wheels
*Preliminary specifications pending confirmation.
