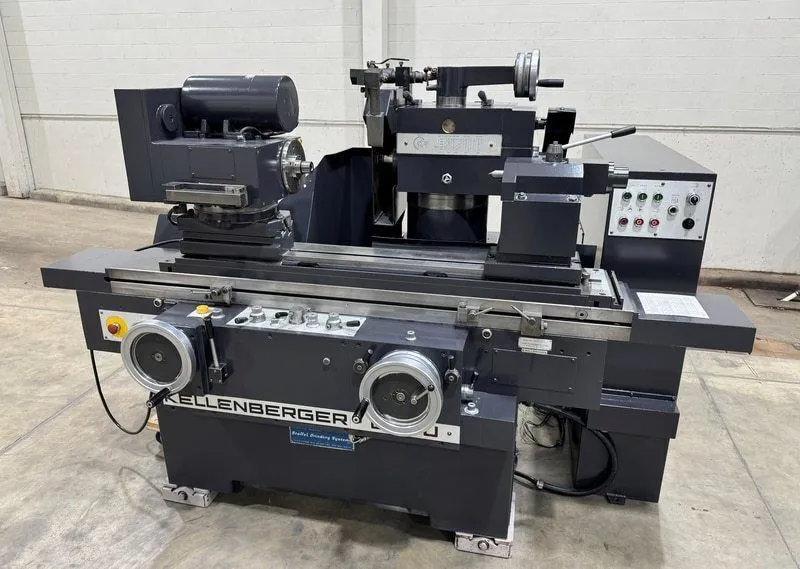

New – 1986
Serial No. 32460-2211
SPECIFICATIONS:
Height of Centers, as Presently Configured…………6.75″
Nominal Swing…………13″
Distance between Centers (Nominal)…………23-5/8″
Distance between Centers w/Tailstock Overhanging…………29-1/2″
Table:
– Longitudinal Table Travel…………27″
– Longitudinal Table Travel per Handwheel Turn – Coarse…………25/32″
– Longitudinal Table Travel per Handwheel Turn – Fine…………3/32″
– Longitudinal Table Speed – Hydraulic…………0.06 to 18′ FPM
– Table Swivels…………11 Degrees
– Reversing Dwell…………0 – 5 Seconds
Grinding Wheel Infeed:
– 1 Graduation of Feed Scale…………0.0002″
– Automatic Feed – Maximum…………0.035″
– Automatic Infeed Per Table Reversal…………0.00005″ – 0012″
– Infeed for Plunge Grinding…………0.00004″ – .002″
– Plunge Grinding – Infeed Speed…………10 – 1000 uIN/Second
– Micrometer Stop, 1 Graduation…………0.00005″
Universal Grinding Spindle Head:
– Transverse Movement of Wheel Slide…………11-1/4″
– Hydraulic Rapid Wheel Slide Advance/Retraction Stroke…………1-9/16″
– Grinding Wheel Speeds – RPM (4)…………1500, 1700, 2220 & 3600
– Grinding Wheel for Cylindrical Grinding…………16″ X 2″ X 5″
– Grinding Wheel – Surface Grinding…………10″ X 3/4″ X 3″
– Swivel of Grinding Head w/Locking Every 90 Degrees…………270 Degrees
-Vert. Motion of Grinding Spdl Head, Height of Centers…………4-59/64″ – 13-25/32″
Workhead:
– Spindle Speeds – Infinitely Variable…………10 – 400 RPM
– Workhead Swivels…………360 Degrees
– Inside Taper of Work Spindle…………#5 MT
Approximate Floor Space Required…………102″ X 64″ X 66″
Approximate Weight…………6,000 Lbs.
EQUIPPED WITH:
Hydraulic Operation Featuring: Single Lever Control, Infinitely Variable Table
Traverse, Automatic Feed, Plunge Feed, Rapid Wheel Advance & Retraction Sparkout Timer
Three Wheelhead Machine: Left-Hand (O.D.) & Right-Hand Wheel Mounting (Face Grinding) with Swing-Around I.D. Grinding Unit (Capability)
Coolant System with Paper Filtration
Hubs, Books, Manuals and Drawings.
*Preliminary Specifications, Pending Confirmation.
