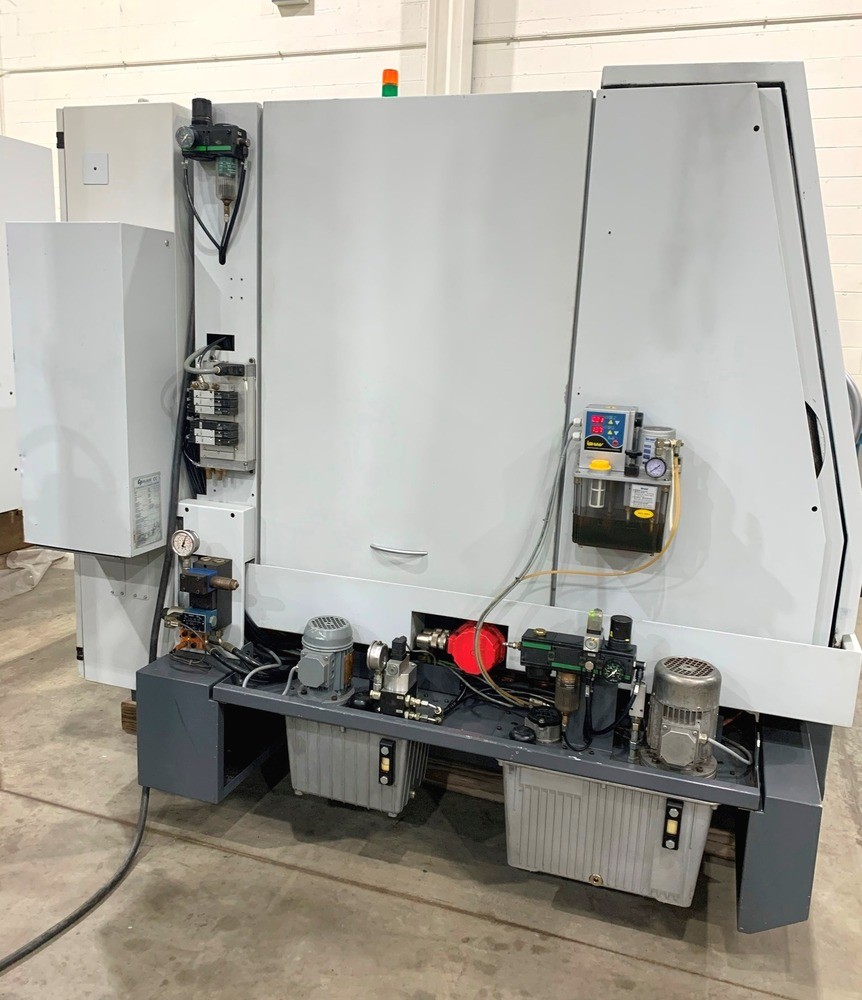

Kellenberger CNC Cylindrical Grinding Machine Kel-Vision URS 175/430 – 47493

Kellenberger CNC Cylindrical Grinding Machine Kel-Vision URS 175/430

New – 2006
Serial No. 665108
SPECIFICATIONS:
Swing……………………………………………………….13.75″
Distance between Centers…………………………………………30″
Grinding Length…………………………………………………17″
Part Weight – Maximum……………………………………….220 Lbs.
ID Spindle Speed – Maximum…………………………………42,000 RPM
Grinding Wheel:
– Mount………………………………………………….Right Side
– Width…………………………………………………………3″
– Diameter……………………………………………………..20″
– Center Hole……………………………………………………8″
– Motor Output………………………………………………..12 HP
– Peripheral Speed………………………………………….148 SFPM
Kellenberger CNC Cylindrical Grinding Machine Workhead:
– Spindle Speeds…………………………………………8 – 800 RPM
– Taper………………………………………………………..MT5
Tailstock 1 w/Air-Cushioning:
– Sleeve Stroke………………………………………………….2″
– Taper………………………………………………………..MT4
– Micro-Adjustment for Cylindricity Correction………………+/- 0.0060″
Tailstock 2:
– Sleeve Stroke………………………………………………….2″
– Taper………………………………………………………..MT4
– Micro-Adjustment for Cylindricity Correction………………+/- 0.0024″
High-Frequency Rotating Dressing Device:
– Speeds………………………………………….3,000 – 16,000 RPM
– Power……………………………………………………..1/2 HP
Dimensions – Approximate…………………..99″(L-R) x 79″(F-B) x 71″(H)
Weight – Catalog…………………………………………10,340 Lbs.

EQUIPPED WITH:

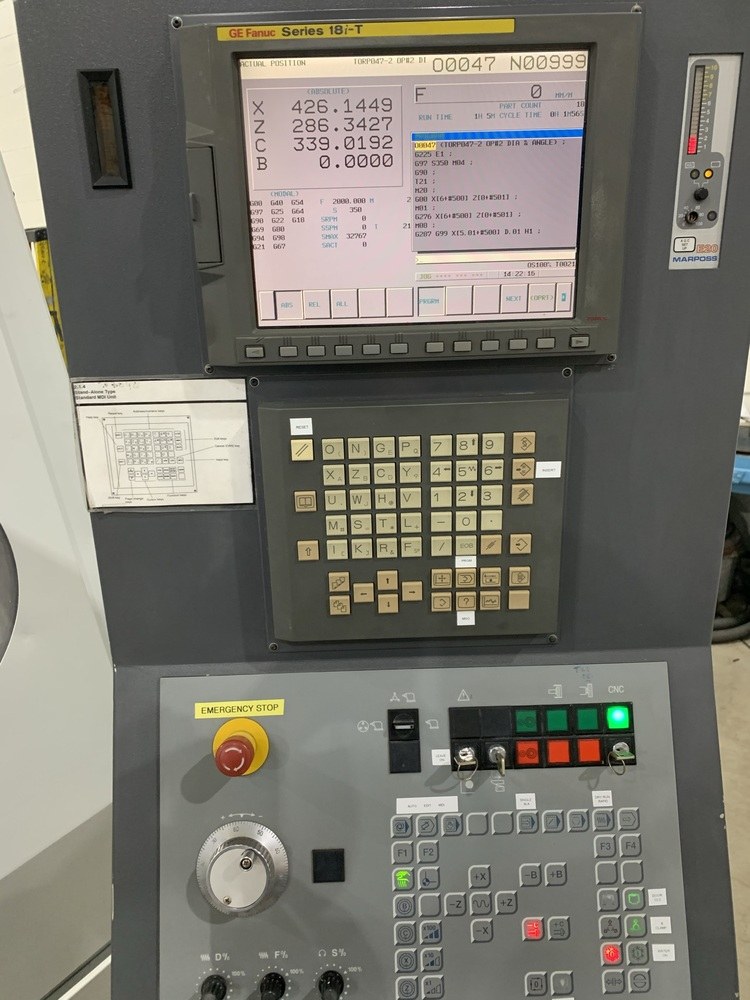

GE Fanuc 18i-T Control
Programmable B-Axis for Angle Grinding
Programmable C-Axis Headstock
Dressing Device Controlled by M-Commands
Marposs Gap Control Sensor

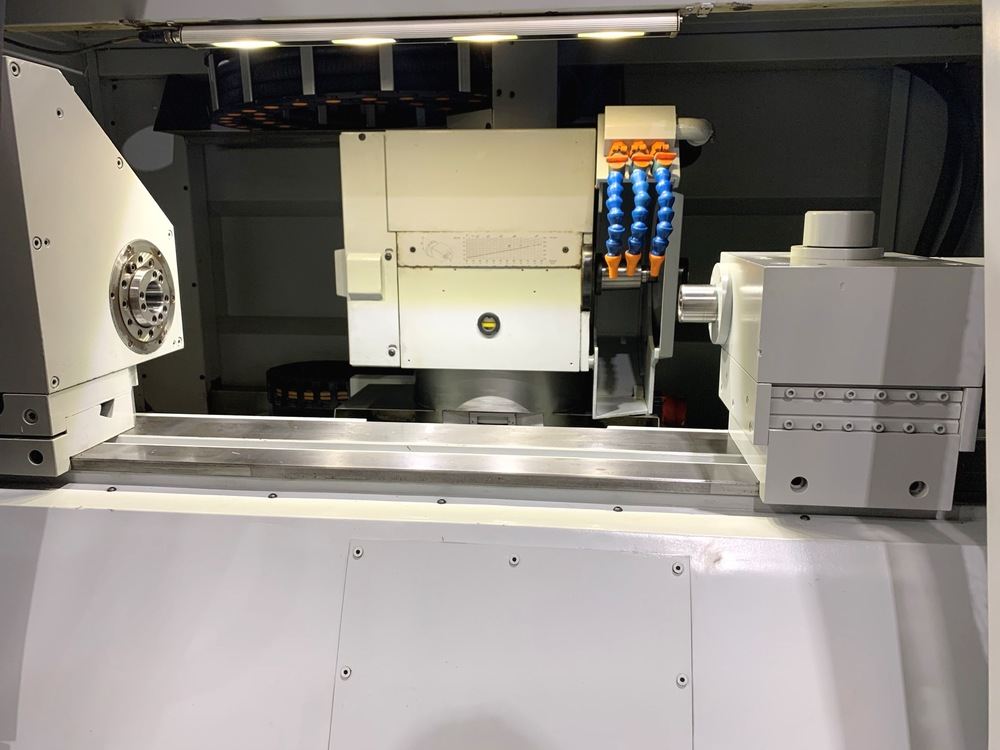

URS Grinding Head w/Hydrodynamic Wheelhead

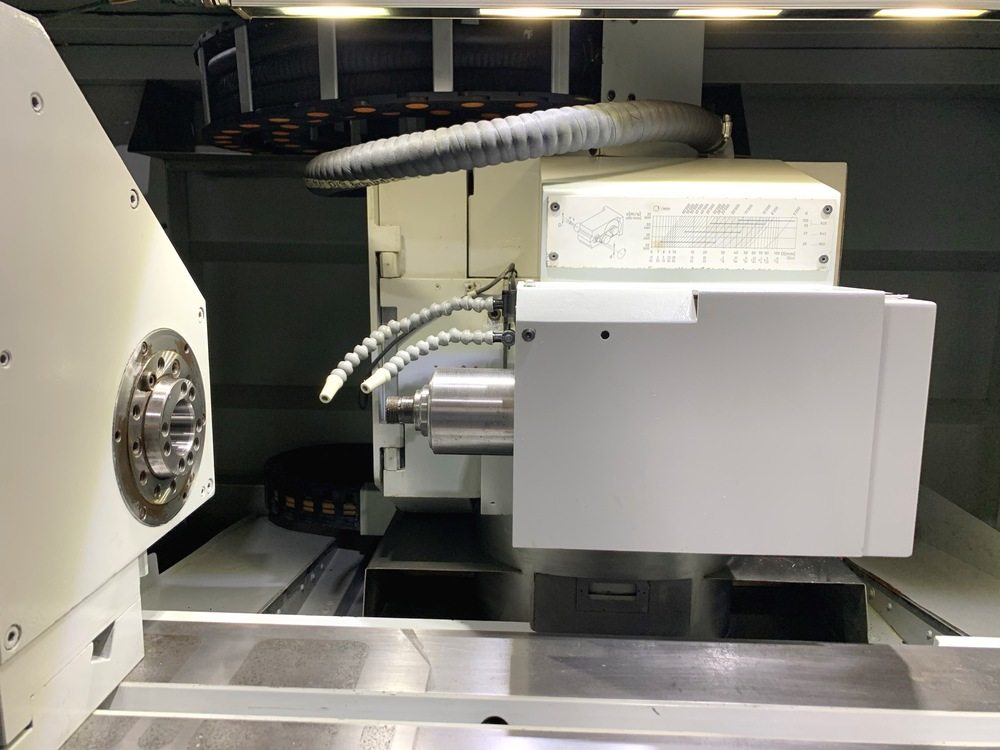

Fischer Model HJN842 ID Water Cooled Belt Driven Grinding Spindle

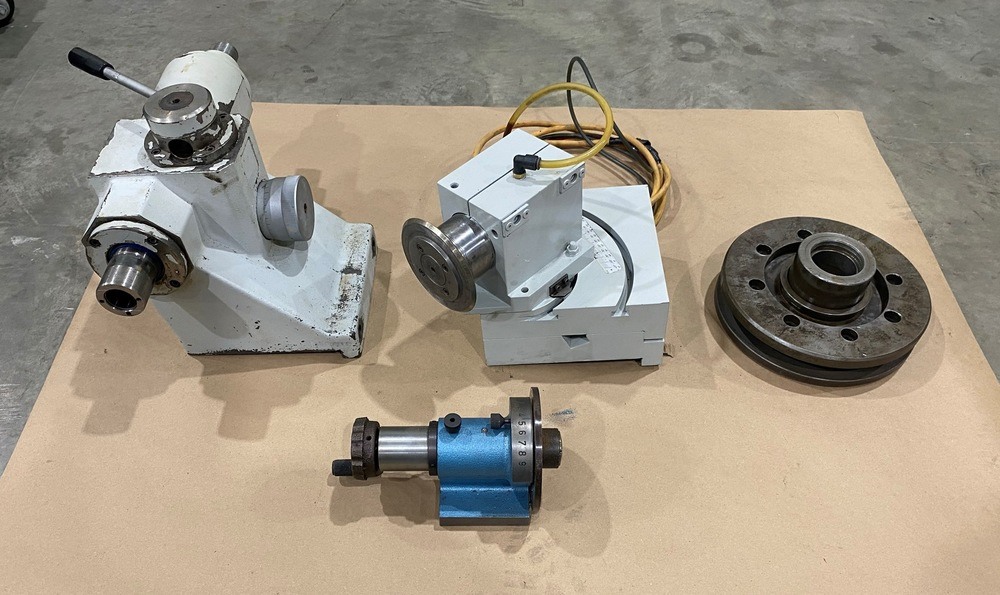

(2) Tailstocks

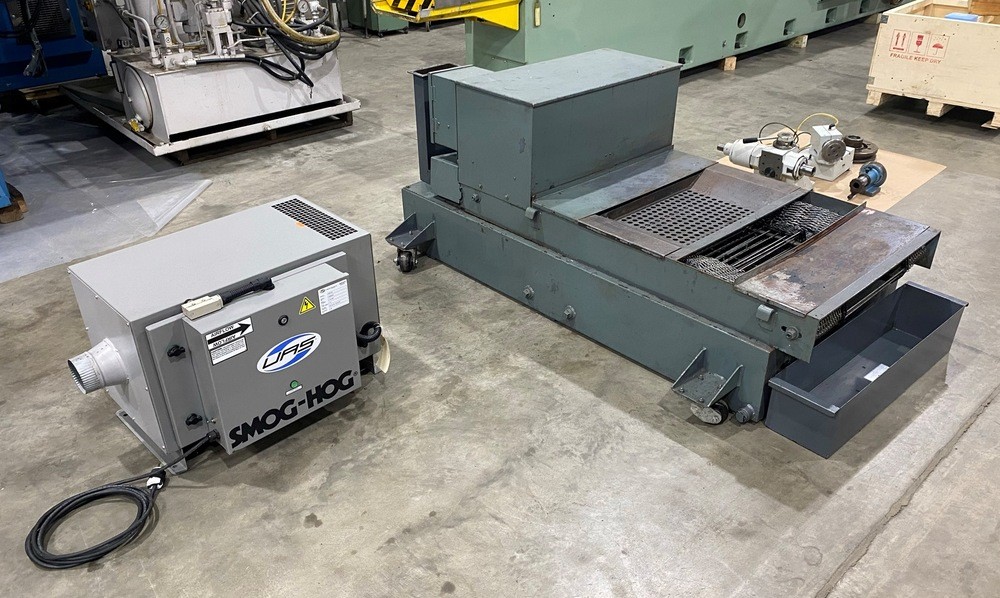

Paper Media Coolant Filtration System
Full Enclosure

*Preliminary Specifications on Kellenberger CNC Cylindrical Grinding Machine Kel-Vision URS 175/430 Subject to Verification

Cylindrical grinders are precision machining tools used to shape and finish the external surface of cylindrical workpieces with high accuracy. These versatile machines are widely employed in various industries, including automotive, aerospace, and tool manufacturing. Cylindrical grinders consist of a wheel or grinding head that rotates at high speed, removing material from the workpiece to achieve the desired shape, size, and surface finish. The workpiece is typically held in place between centers or in a chuck and can be rotated or remain stationary during the grinding process. Kellenberger CNC Cylindrical Grinding Machine offer flexibility in terms of grinding operations, allowing for tasks such as plunge grinding, traverse grinding, and shoulder grinding. With the ability to handle different materials and complex geometries, cylindrical grinders are invaluable for producing precision components like shafts, cylinders, and rods. These machines contribute to improved productivity, dimensional accuracy, and surface quality in manufacturing processes.
