Extrude Hone Vector 250 Abrasive Flow Machine (AFM) - #46920

Serial No. R12-1625
New - 2013

SPECIFICATIONS:
Media Cylinder Diameter...................................................10"
Media Cylinder Capacity...........................................981 Cu. In.
Media Stroke Length.....................................................12.5"
Hydraulic Cylinder Diameter................................................6"
Clamping Cylinders Stroke.................................................20"
Hydraulic Clamping Force.............................................29.4 Ton
Opening Between Tooling Plates - Maximum..................................22"
Worktable Height..........................................................41"
Distance Between Columns..................................................36"
Compressed Air Required................................................58 PSI
Media Extrusion Pressure (Minimum - Maximum)....................125 - 960 PSI
Media Delivery Rate (14 GPM)......................................0-981 Cu.In
Expansion Diameter - Maximum.............................................8.7"
Hydraulic Power Unit...............................10 HP, 208/460, 3/60 Cycle
Hydraulic System...............................................350 - 1500 PSI
Approximate Dimensions....................................42"L x 52"W x 104"H
Approximate Weight.................................................4,500 Lbs.

EQUIPPED WITH:

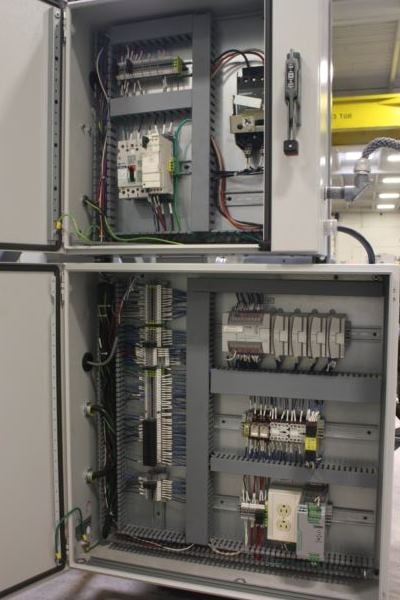

Allen-Bradley Micrologix 1200 Analog Input Module (Programmable Controller)
Magelis Operator Interface Terminal with Touch Screen Control with Graphics
Banner Opto-Touch Anti-Tie Down Safety Device, Light Curtains.
AFC AutoFlow Control (Option), stores and monitors all major process data.
Cooling Cuff, Water Cooled Media Cylinders (Option)
2-Ton Closed loop chiller, Integrated into the Machines Operator Interface.

HPU (Air Heat Exchanger Option)
Shuttle Feed for Fixture loading & Unloading (Option)
Standard functions include Remote Media Pressure Adjustment, Real Time Display
of Media Piston Position, Automatic and Manual Mode, A Displacement Counter,
a Cycle Counter and a Cycle Timer.
Machine Process Parameters are preset via the Opertor Interface Terminal and
can also be monitored on the Terminal once the Automatic Cycle has been
initiated.
Available Machine Documentation

*Preliminary Specifications Subject to Verification.
