New – 2003

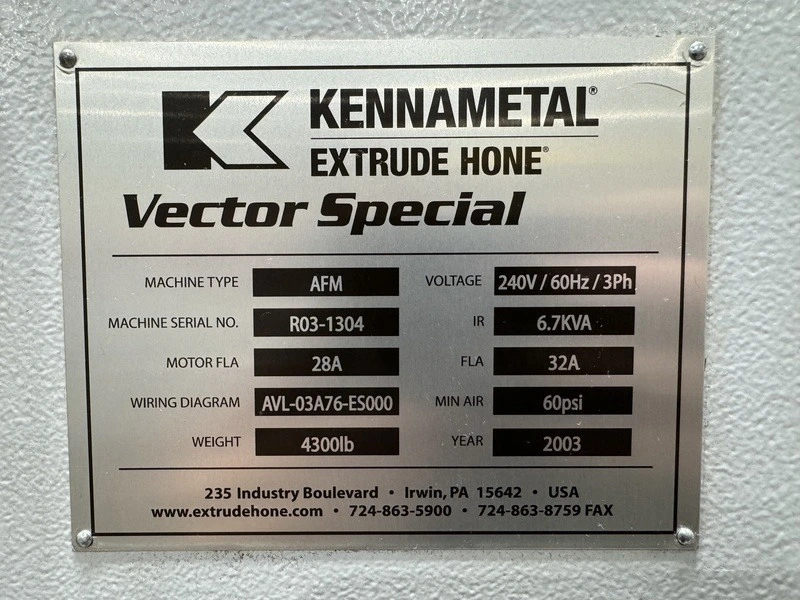

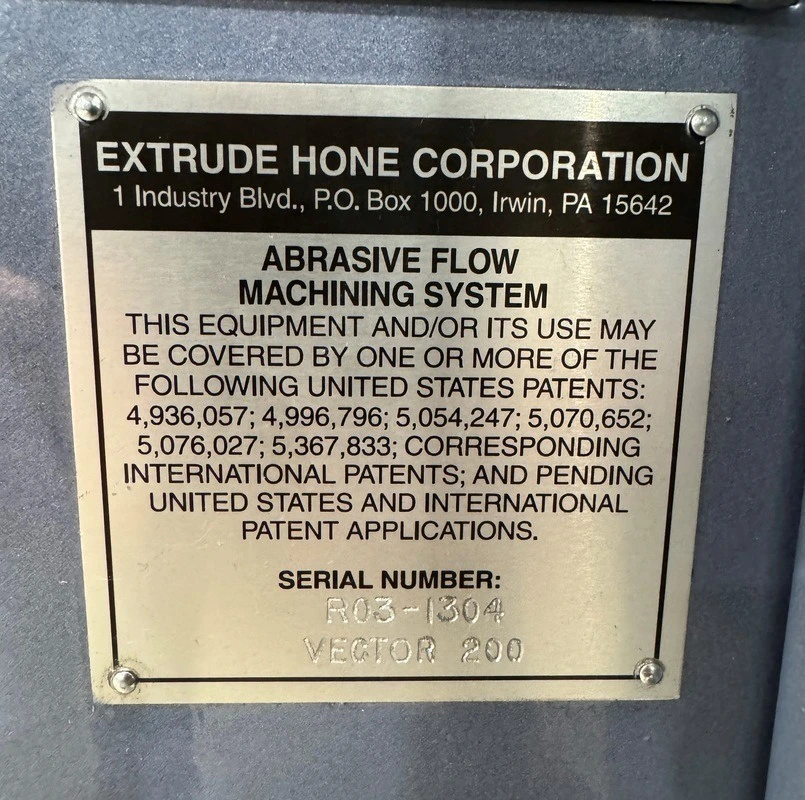

Serial No. R03-1304
SPECIFICATIONS:
Media Cylinder Diameter…………8″
Media Cylinder Capacity…………628.3 Cu. In.
Media Stroke Length…………12.5″
Hydraulic Cylinder Diameter…………6″
Clamping Cylinders Stroke…………20″
Hydraulic Clamping Force…………29.4 Ton
Opening Between Tooling Plates – Maximum…………22″
Worktable Height…………41″
Distance Between Columns…………36″
Compressed Air Required…………58 PSI
Media Extrusion Pressure…………200 – 860 PSI
Media Delivery Rate (8.8 GPM)…………0 – 2,053 Cu.In./Minute
Expansion Diameter – Maximum…………8.7″

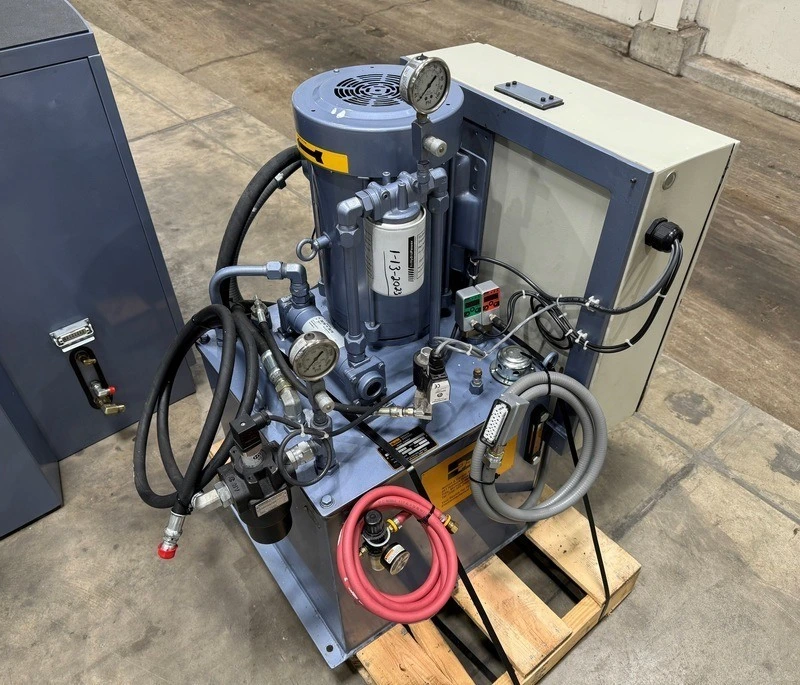

Hydraulic Power Unit…………5 HP, 208/230/460, 3Ph/60 Cycle
Pump Capacity @ 1750 RPM…………5 GPM
Approximate Overall Dimensions – Closed…………42″ L x 52″ W x 104″ H
Approximate Weight…………5,000 Lbs.
EQUIPPED WITH:
Allen-Bradley Micrologix 1200 Analog Input Module (Programmable Controller)

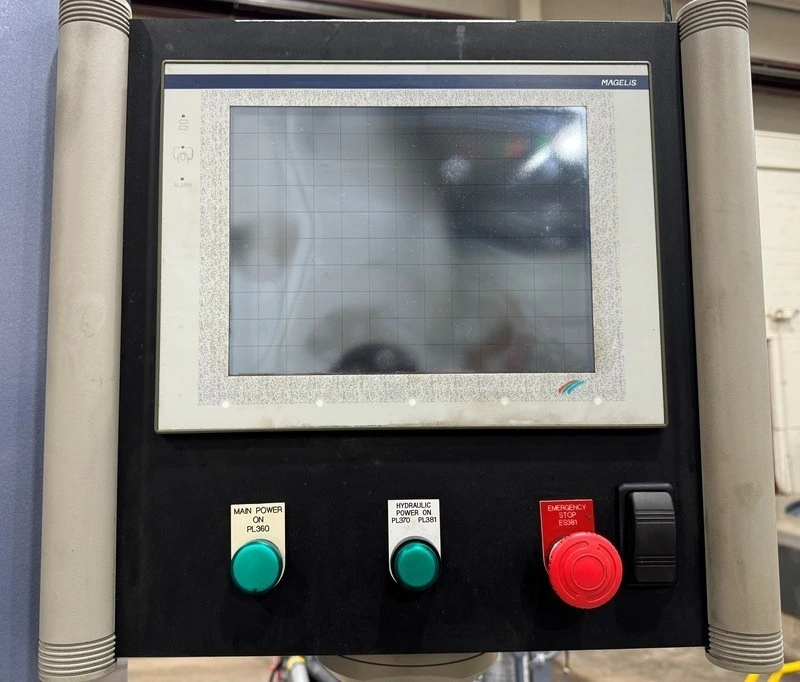

Operator Interface Panel & Screen
Standard functions include Remote Media Pressure Adjustment, Automatic and Manual Mode, a Displacement Counter, Cycle Counter and Timer.
Machine Process Parameters are preset via the Operator Interface Terminal and can also be monitored on the Terminal once the Automatic Cycle has been initiated.
Banner Opto-Touch Anti-Tie Down Safety Device

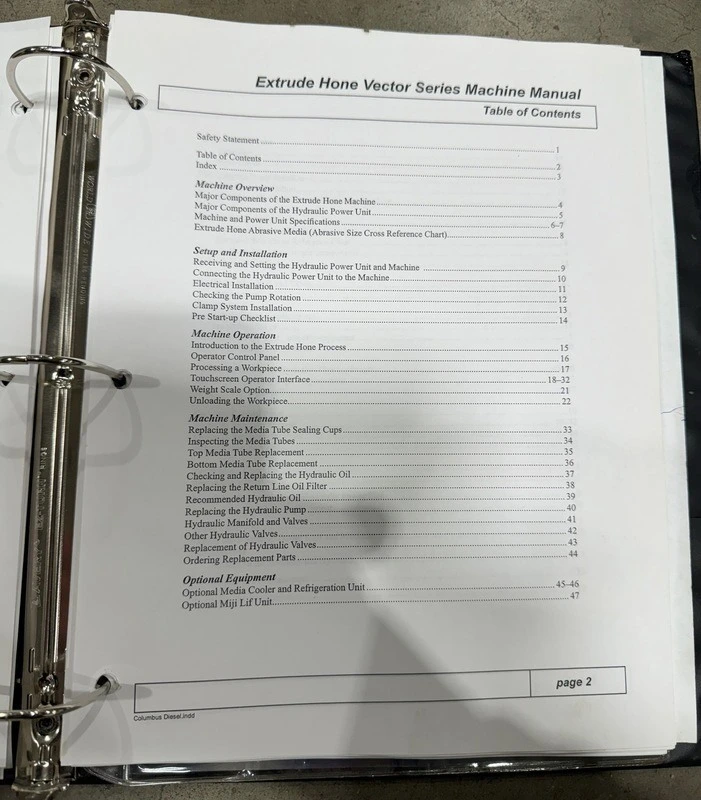

Books, Manuals, Drawings and Ladder Logic
*Preliminary Specifications Pending Confirmation.
