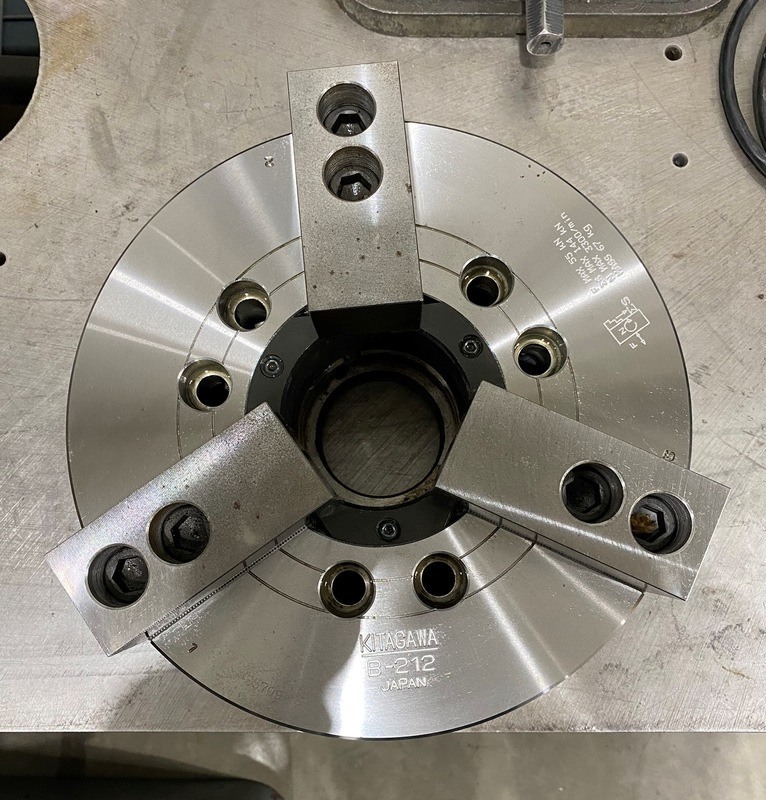

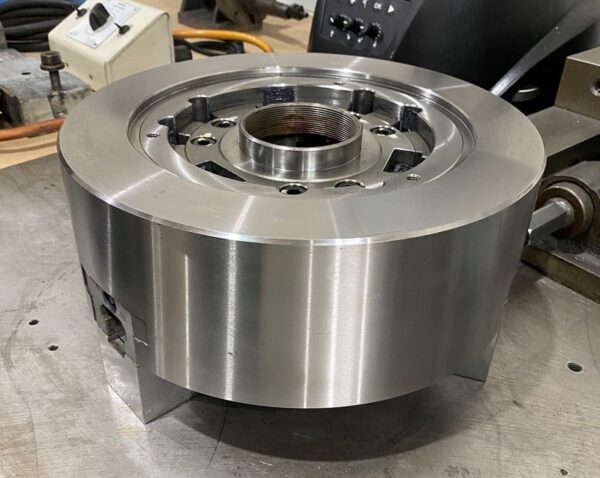

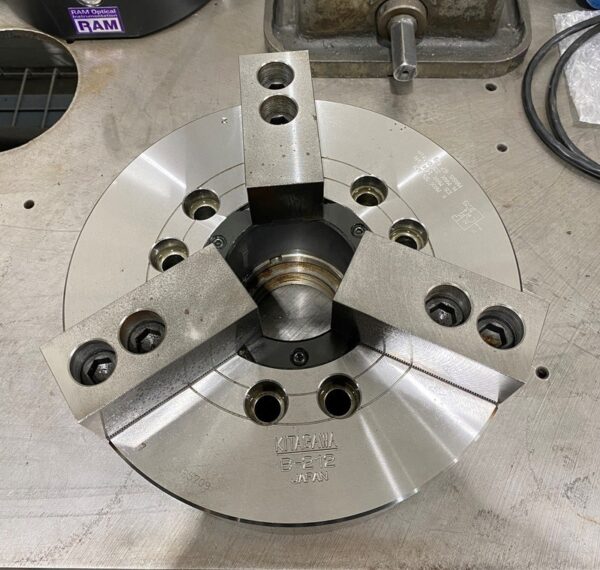

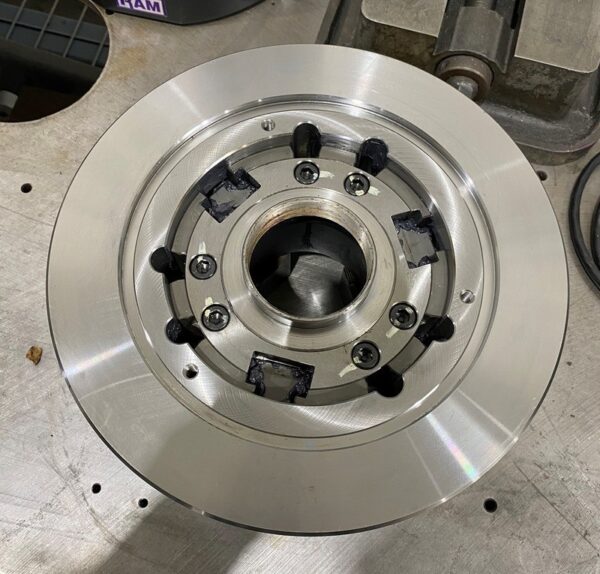

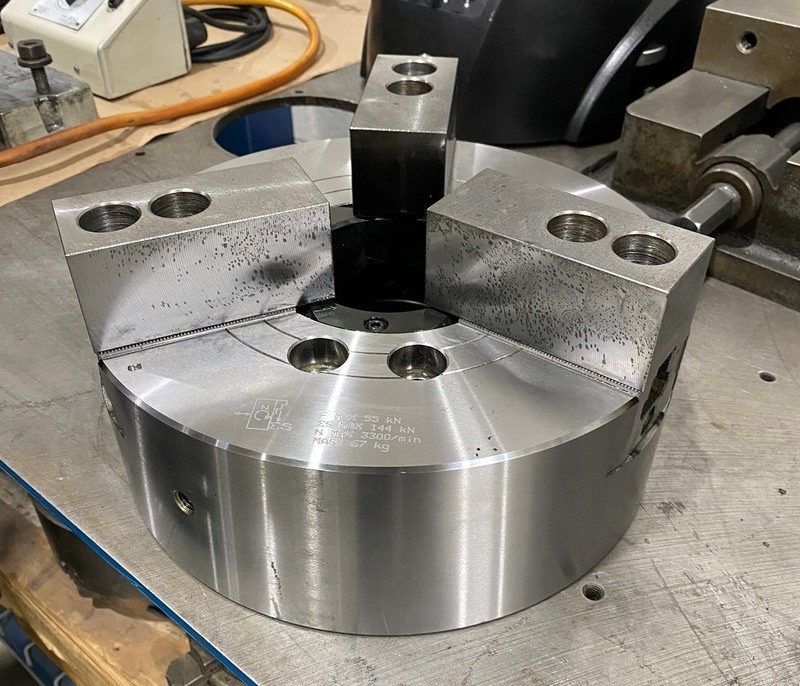

Kitagawa B212 Large Thru-Hole High Speed Power Chuck
SPECIFICATIONS:
Gripping range…………1.34″ – 12″
Speed – maximum…………3300 RPM
Through-hole………….. 3.6″
Spindle nose…………A2-8
Jaw stroke (diameter)…………0.4124″
Plunger stroke………….0.91″

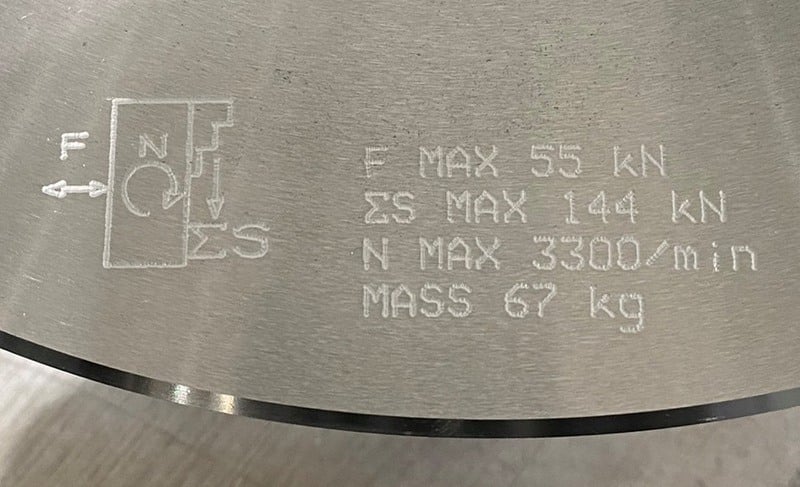

Draw bar pull force – maximum……………55kN, 5608 kgf
Gripping force – maximum…………144kN, 14684 kgf
Moment of inertia…………0.765 kg.m2
Matching cylinder…………S2091
Pressure – maximum…………MPa, 27.5 cm2
Dimensions (with top jaws) – actual…………12″ Dia. x 6.35″ H
Weight (with soft jaws) – catalog…………141 Lbs.
Kitagawa B212 EQUIPPED WITH:
Top jaws
Hardware
*Preliminary specifications, subject to verification.
Power chucks like the Kitagawa B212 are essential components used in conjunction with CNC lathes to securely hold and grip workpieces during machining operations. They are designed to provide a reliable and efficient means of clamping and releasing workpieces, enhancing productivity and accuracy in CNC lathe machining.
Power chucks utilize hydraulic or pneumatic power to exert gripping force on the workpiece. They typically consist of jaws or clamping fingers that move in a synchronized manner to hold the workpiece firmly in place. The gripping force can be controlled and adjusted to suit the specific requirements of the machining operation.
The advantages of power chucks like the Kitagawa B212 for CNC lathes are numerous. First, they offer quick and easy workpiece clamping, reducing setup time and improving overall efficiency. The automated operation of power chucks allows for rapid and reliable workpiece changes, minimizing downtime between machining tasks.
Second, power chucks provide a high level of gripping force, ensuring secure and stable workpiece holding during cutting, turning, and other machining operations. This stability leads to enhanced accuracy and precision in the finished parts.
Furthermore, power chucks like the Kitagawa B212 offer versatility by accommodating a wide range of workpiece sizes and shapes. They can be equipped with different types of jaws or attachments to handle various workpiece configurations, making them suitable for diverse machining applications.
