Serial No. B6055HD
SPECIFICATIONS:
Distance between Tailstocks…………32″
Distance between Workhead and Tailstock Centers…………26″
Distance between Workhead Collet and Tailstock…………27″
Distane between B946 Chuck Face and Tailstock…………25.5″
Table Working Surface…………5.25″ x 37.25″
Sub-Table…………8″ x 48″
Crossfeed Travel…………8″ (0.1″ per handwheel revolution)
Table:
– Traverse…………20″
– Fast Feed per Handwheel Revolution…………2-13/16″
– Slow Feed per Handwheel Revolution…………9/16″
Vertical Column Movement…………10.5″ (0.050″ per handwheel revolution)
Column Diameter…………6″
Swing Over Table…………12.25″
Centerline of Wheel Shaft to Top of Table…………5-3/8″ to 15-1/4″”
Centerline Height of Fixtures to Top of Table…………6.130″
Table T-Slot…………7/16″
Table Swivel…………225°
Wheel Head Swivel…………360°
Spindle Speed…………3,450 RPM
ID Depth Capacity w/ Standard Arbors – Maximum…………1.25″
Crossfeed Surface Grinding – Maximum…………3″ (5″ Wheel)
Grinding Wheel Hole Size…………5/8″
Machine Weight – Approximate…………1400 Lbs.
Dimensions – Approximate…………58″L x 68″W x 65″H
EQUIPPED WITH:
Optical Comparator

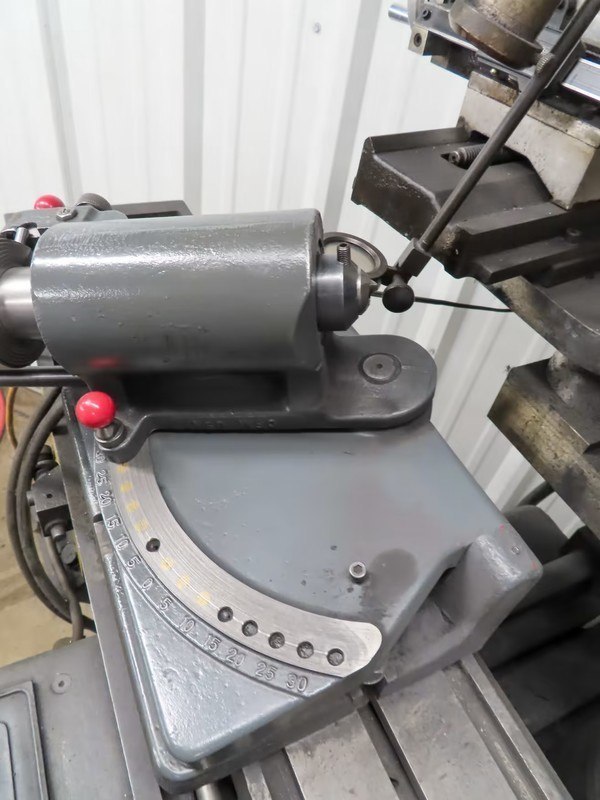

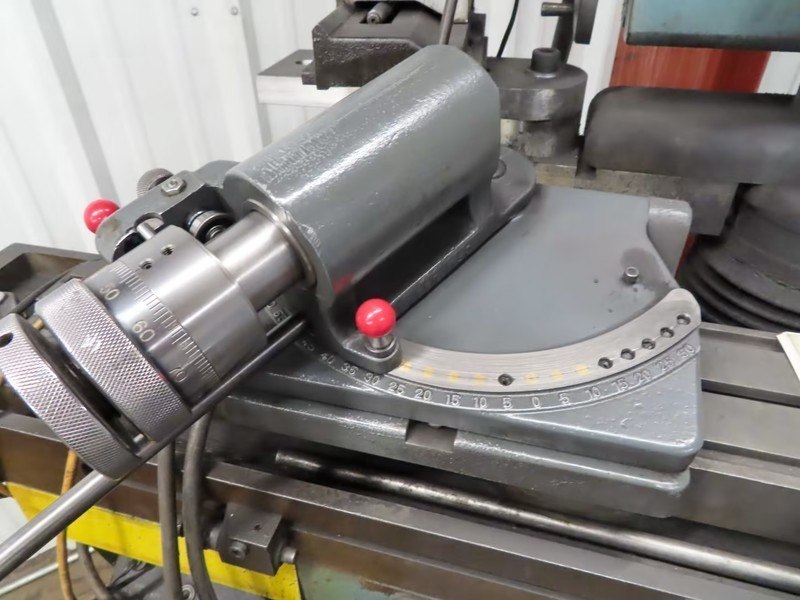

Eldorado Model B Gundrill Grinding Fixture
*Preliminary specifications, subject to verification.
