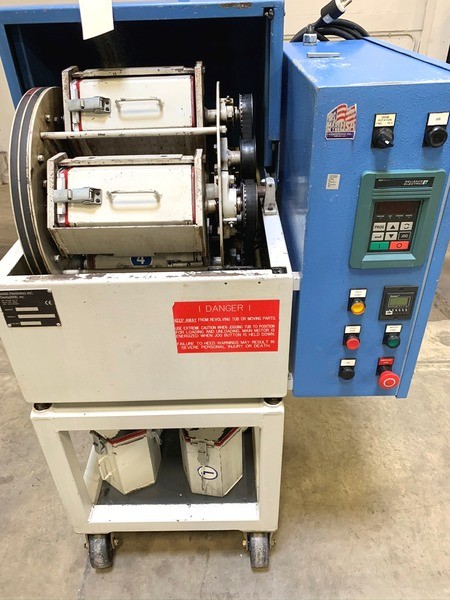

The Mass Finishing Inc (MFI) Centrifugal Barrel Finishing Machine is one of the fastest and most economical methods of deburring and finishing batches of many small parts at one time. It falls under the category of mass finishers.
New – 2000
Serial No. 25259H
Mass Finishing Inc HZ-12 SPECIFICATIONS:
Total Volume…………………………………………….1.6 Cu. Ft.

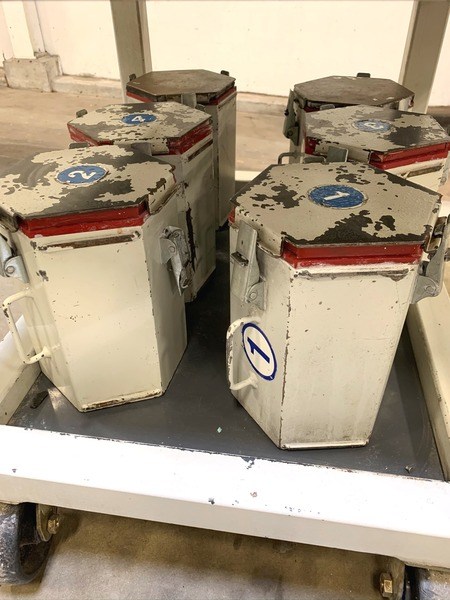

Barrels:
– Number…………………………………………………………4
– Capacity/Barrel………………………………………..0.4 Cu. Ft.
– Dimensions………………………………………………8.5″ x 5″
– Weight – Maximum/Barrel…………………………………….10 Lbs.
– Internal Temperature – Maximum……………………………200 Deg. F
– Rotation to Turret Rotation……………………………….1:1 Ratio
Speed – at Turret……………………………………….10 – 250 RPM
Motor…………………………………………………………1 HP
Electrics……………………………………………..120V/1Ph/60Hz
Dimensions – Catalog (On Rolling Stand)……..30″(L-R) x 30″(F-B) x 54″(H)
Weight – Approximate Weight (w/Rolling Stand)………………….525 Lbs.
EQUIPPED WITH:
(10) Finishing Barrels

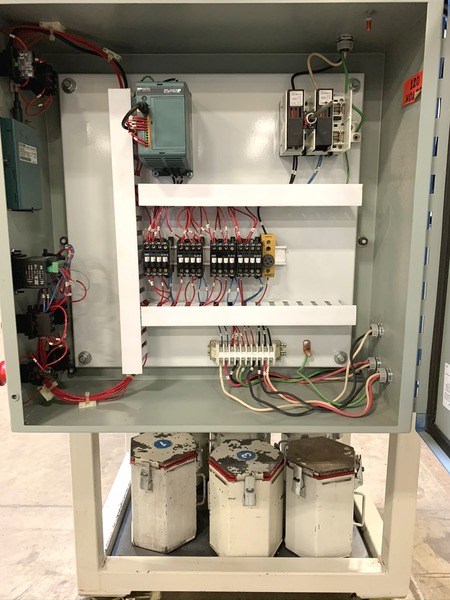

Reliance Electric SP200 Drum Speed Variable Frequency Control
Durant Programmable Cycle Timer
Forward and Reverse Switch

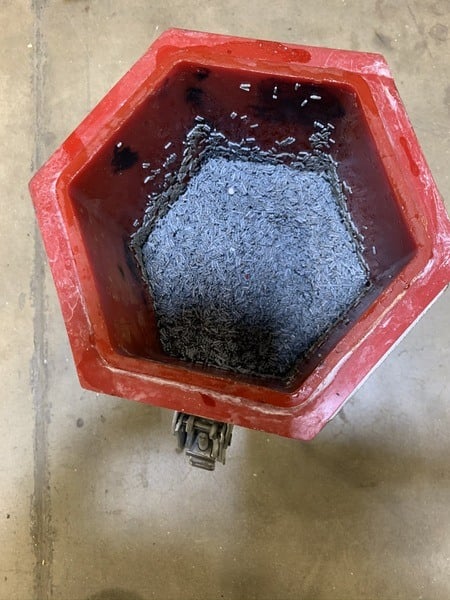

Removable Barrel Liner
*Preliminary Specifications Subject to Verification.
Centrifugal barrel finishing machines like the Mass Finishing Inc HZ-12 are advanced vibratory finishing systems used for high-quality surface finishing of various parts and components. These machines utilize centrifugal force generated by the rotating barrels to create a tumbling action, resulting in consistent and efficient finishing.
The barrels of centrifugal barrel finishing machines like the Mass Finishing Inc HZ-12 are loaded with workpieces, media, and finishing compounds. As the barrels spin, the centrifugal force causes the contents to move in a circular path, generating intense rubbing and sliding action between the workpieces and media. This action effectively removes burrs, sharp edges, and surface imperfections while producing a smooth and polished finish.
Centrifugal barrel finishing machines like the Mass Finishing Inc HZ-12 offer several advantages. They can handle a wide range of part sizes, shapes, and materials, making them versatile for various industries like automotive, aerospace, and jewelry. The process is highly controllable, allowing for precise control over finishing times and intensity.
Overall, centrifugal barrel finishing machines like the Mass Finishing Inc HZ-12 provide a fast and efficient method for achieving consistent and high-quality surface finishes. They are widely used for deburring, edge radiusing, surface smoothing, and polishing, enhancing the overall aesthetics and functionality of finished parts.
To find out more about finishing equipment click HERE and HERE.
