Mazak Integrex 100-IV ST CNC Turning Center - Multi-Tasking Machine | #50416

Liberty Machine # 50416 Category Make

Mazak Integrex 100-IV ST CNC Turning Center - Multi-Tasking Machine
New - 2008

SPECIFICATIONS:
Chuck Size Main/ Sub)............6” Hyd./ 6” Hyd.
Swing - Maximum............21.46”
Swing Using Y - Axis - Maximum............16.22” - 21.46”
Swing Over Cross Slide - Maximum............13.86”
Cutting Dia. Chucking - Maximum............21.46” Upper
Machining Length - Maximum............29.65”
Distance Between Chuck Faces - Maximum............28.9”
X - Axis Travel............16.14”
Y - Axis Travel............+/- 2.75”
Z - Axis Travel............31.69”
X2 - Axis Lower............8.66”
Z2 - Axis Lower............30.71”
B - Axis Travel Pendulum Head............225°
C - Axis Spindle Movement (Both Spindle)............0.0001°
W - Axis Travel (Sub Spindle)............31.3”
Spindle Nose/ Spindle Bore/ Bar Capacity............A2-5”/2.4”/1.69”
Main Spindle Speed............6,000 RPM
Main Spindle Motor............15 HP AC
Upper Turret............1 Pos. w/ ATC
Magazine Capacity............40 Positions - CAT 40
Rotary Tool Spindle HP/ Speed............7.5 HP/ 12,000 RPM
Lower Turret Positions............9 Position Turret
Lower Turret............Drum Type
Machine Dimensions - Approximate............12'(L-R) X 92”(F-B) X 89”(H)
Machine Weight - Approximate............18,078 LBS

Mazak Integrex 100-IV ST Equipped With:
- 4 Axis Milling and Lower Turret
- Both Able To Work On Either Spindle
- Both Main & Sub Spindles Equipped with 6” Chucks with 6,000 RPM and 15 HP Motors
- The 12,000 RPM Milling Spindle is Served By A 40 Position Tool Changer Magazine CAT 40 Tool Capacity
- Y-axis Capability
- Subspindle
- 9 Station Lower Turret
- Pendulum Style B Axis 225 Deg. w/ Contouring
- C Axis 0.0001 Degree Increment - Main & Sub
- Live Milling/Drilling Capability
- 40 Station Tool Magazine (CAT 40)
- LNS Quick Load Servo Barfeed System
- (2) 6" 3 Jaw Hydraulic Chucks
- Automatic Parts Catcher w/ Ejector
- Chip Conveyor

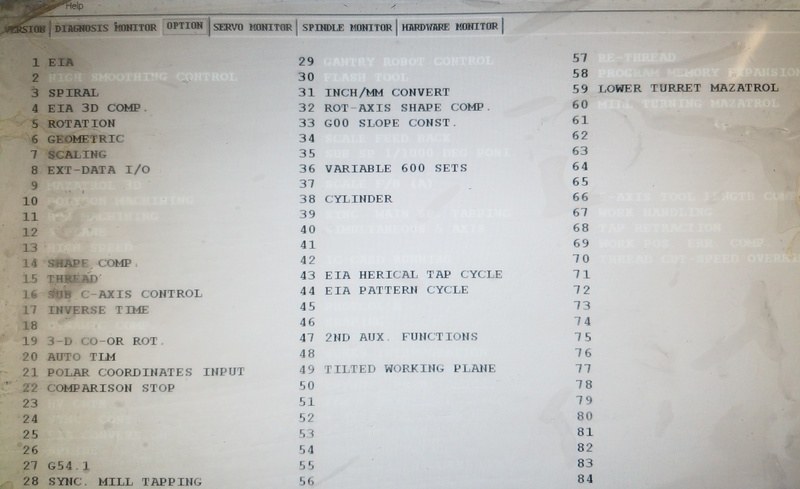

- EIA/ISO Input Function
- Milling Spindle Synchronous Tapping
- Automatic Tool Eye (no probe)
- Plumbed for 1,000 PSI Coolant (no pump)
- Cardbus I/F (2 slots)
- USB Port Interface
- Coolant Through Milling Head
- Auto Chuck Jaws Open and Close

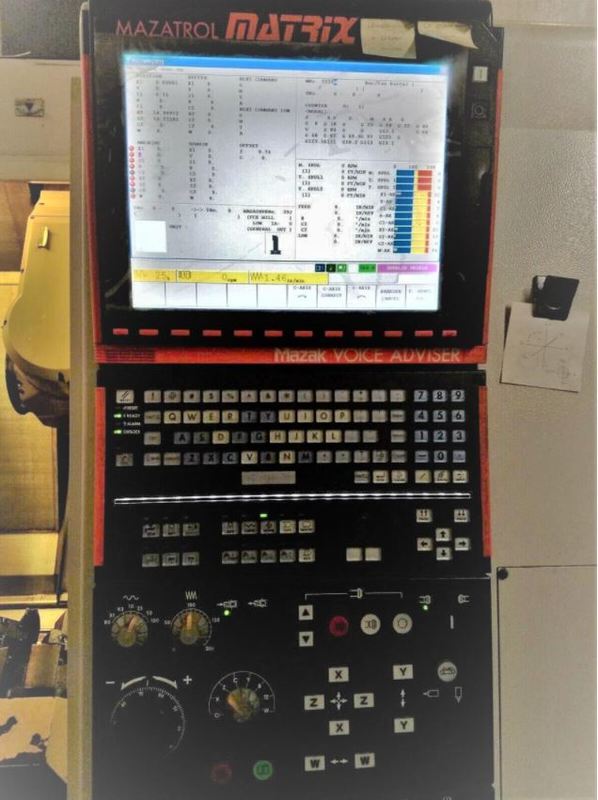

- Windows XP Operating System for Mazak
- Auto Power Off
- 15” Color LCD Monitor
- Inch/Metric Conversion
- LAN Port Interface

*Preliminary Specifications Subject to Verification
