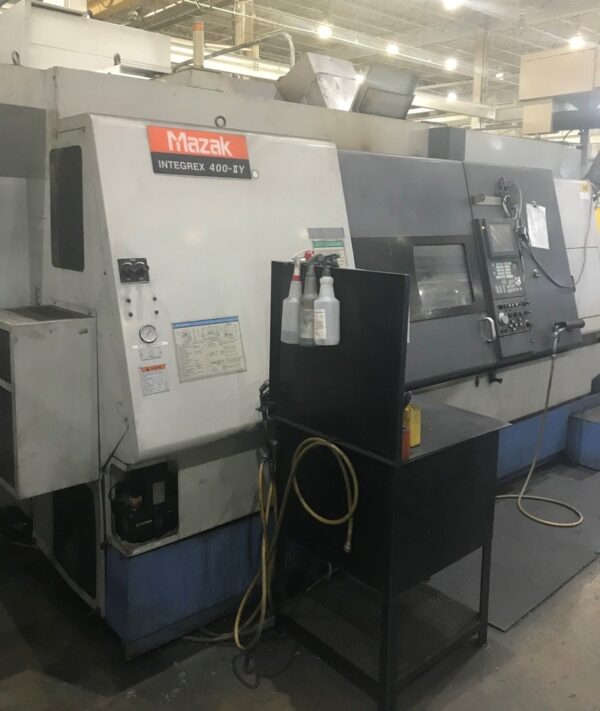

Mazak Integrex 400 IIY CNC Turning Center – Multi-Tasking Machine
New – 2003
SPECIFICATIONS:
Bar Capacity…………3″
Chuck Size…………12″
Spindle Speed…………3000 RPM
Spindle Motor…………40 HP
X-Axis Travel…………11.83″
Z-Axis Travel…………43.11″
Y-Axis Travel…………+/- 4.13″
B-Axis Movement…………225 Degrees – 1 degree
C-Axis Spindle Index…………0.001 Degree
Spindle Nose / Spindle Bore / Bar Capacity…………A2-8″ / 3.46″ / 3.46″
Rapid Rate Z Axis…………1181 IPM
Turret Tools…………40 Station ATC
Rapid Rate X Axis…………1181 IPM
Turning Diameter – Maximum…………24 ”
Turning Length – Maximum…………39.3″
Swing – Maximum…………24″
Rotary Tool Spindle Nose…………63mm short taper
Rotary Tool Spindle Speed…………6,000 RPM
Rotary Tool Spindle…………20 HP
Dimensions – Approximate…………155″(L-R) x 89″(F-B) x 107″(H)
Weight – Approximate…………20,000 LBS
Mazak Integrex 400 IIY EQUIPPED WITH:

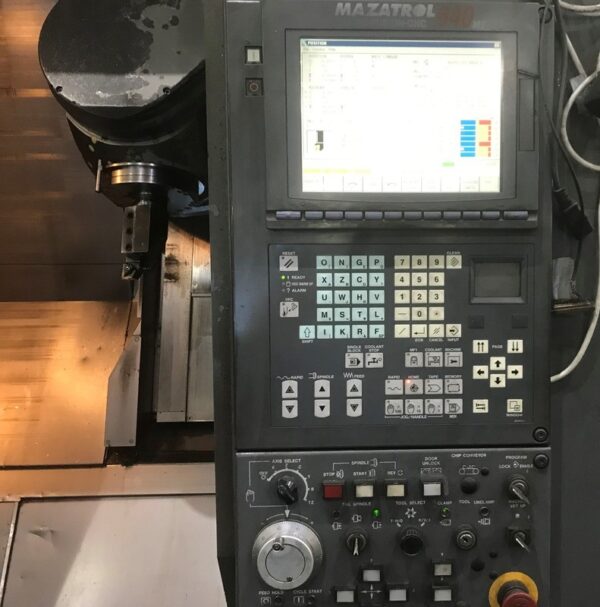

– Mazatrol
– Chip Conveyor
– Tool Presetter
– Tailstock
– Live Tooling
– Y Axis
– 5 Axis
*Preliminary Specifications Subject to Verification
Multitasking machining centers, also known as multitasking machines or multitaskers, are advanced machining tools that combine multiple machining processes into a single unit. These machines are designed to perform a variety of operations, such as milling, turning, drilling, tapping, and more, in a single setup.
The key advantage of multitasking machining centers like the Mazak Integrex 400 is their ability to streamline production by reducing part handling, setup time, and overall manufacturing time. With the capability to perform multiple operations in one machine, manufacturers can achieve higher efficiency, improved accuracy, and reduced lead times.
Multitasking machining centers like the Mazak Integrex 400 often feature CNC (Computer Numerical Control) technology, enabling precise control and programming of complex machining sequences. This allows for intricate and high-precision work, making them ideal for producing complex parts with tight tolerances.
Moreover, multitasking machining centers like the Mazak Integrex 400 offer enhanced flexibility, allowing for a wide range of part geometries and materials to be machined. They can handle both prismatic and rotational workpieces, providing versatility in manufacturing processes.
Overall, multitasking machining centers like the Mazak Integrex 400 are valuable assets in modern manufacturing facilities. Their ability to consolidate multiple machining operations into a single setup promotes efficiency, reduces production time, and enhances the overall productivity of the machining process.
