New – 2013
SPECIFICATIONS:
Chuck Size (Main/ Sub)…………2″ Collet
Swing – Maximum…………21.46”
Swing Using Y – Axis – Maximum…………16.22” – 21.46”
Swing Over Cross Slide – Maximum…………13.86”
Cutting Dia. Chucking – Maximum…………21.46” Upper
Machining Length – Maximum…………29.65”
Distance Between Chuck Faces – Maximum…………28.9”
X – Axis Travel…………16.14”
Y – Axis Travel…………+/- 2.75”
Z – Axis Travel…………31.69”
X2 – Axis Lower…………8.66”
Z2 – Axis Lower…………30.71”
B – Axis Travel Pendulum Head…………225°
C – Axis Spindle Movement (Both Spindles)…………0.0001°
W – Axis Travel (Sub Spindle)…………31.3”
Spindle Nose/ Spindle Bore/ Bar Capacity…………A2-5”/2.4”/2”
Main Spindle Speed…………6,000 RPM
Main Spindle Motor…………15 HP AC
Upper Turret…………1 Pos. w/ATC
Magazine Capacity…………40 Positions – CAT 40
Rotary Tool Spindle HP/ Speed…………7.5 HP/ 12,000 RPM

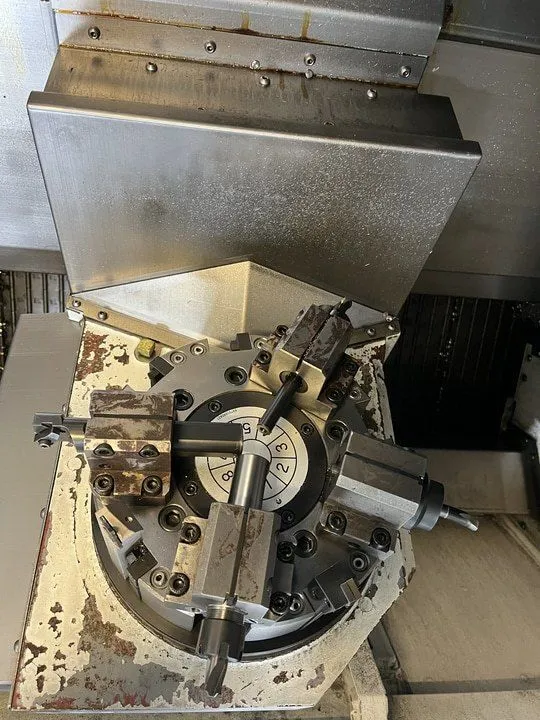

Lower Turret Positions…………9 Position Turret
Lower Turret…………Drum Type
Machine dimensions – approximate…………12′(L-R) X 92”(F-B) X 89”(H)
Machine weight – tag…………16,940 Lbs.
EQUIPPED WITH:

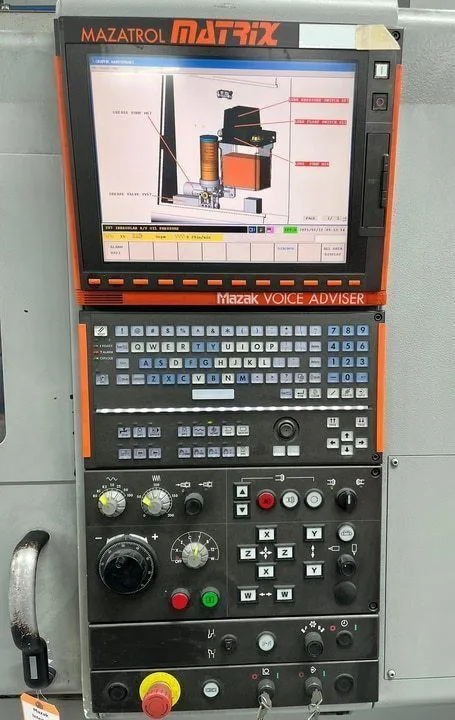

Mazatrol Matrix CNC Control
– Synchronized Tapping
– Inch/Metric Conversion
– EIA/ISO Code Input Function
– 3D Coordinate Conversion
– Absolute Positioning System
– XYZ Pitch Error Compensation Input
– EIA Dynamic Compensation
– Mazacc-3D High Speed Software Pkg.
– Tool Tip Point Control & Tool Radius Comp.
– C1+C2 Synchronous Function

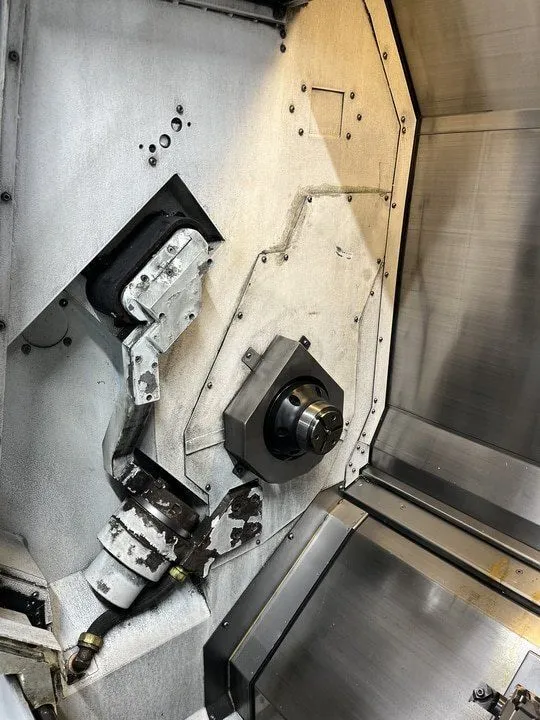

Royal auto chuck on main and secondary spindle
Thru-Spindle Coolant
213 PSI coolant

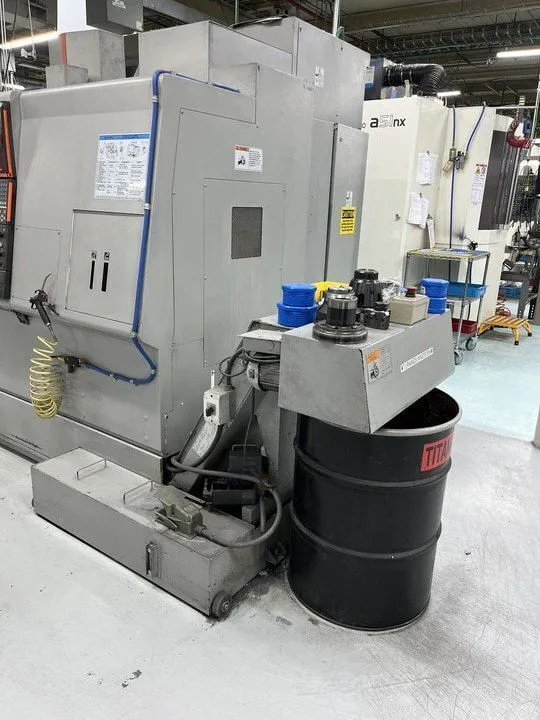

Chip Conveyor
*Preliminary specifications, pending confirmation.
