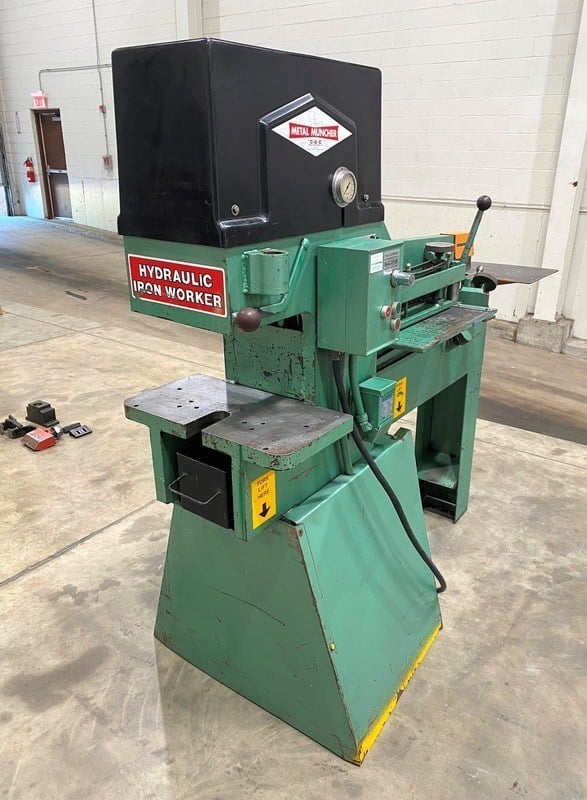

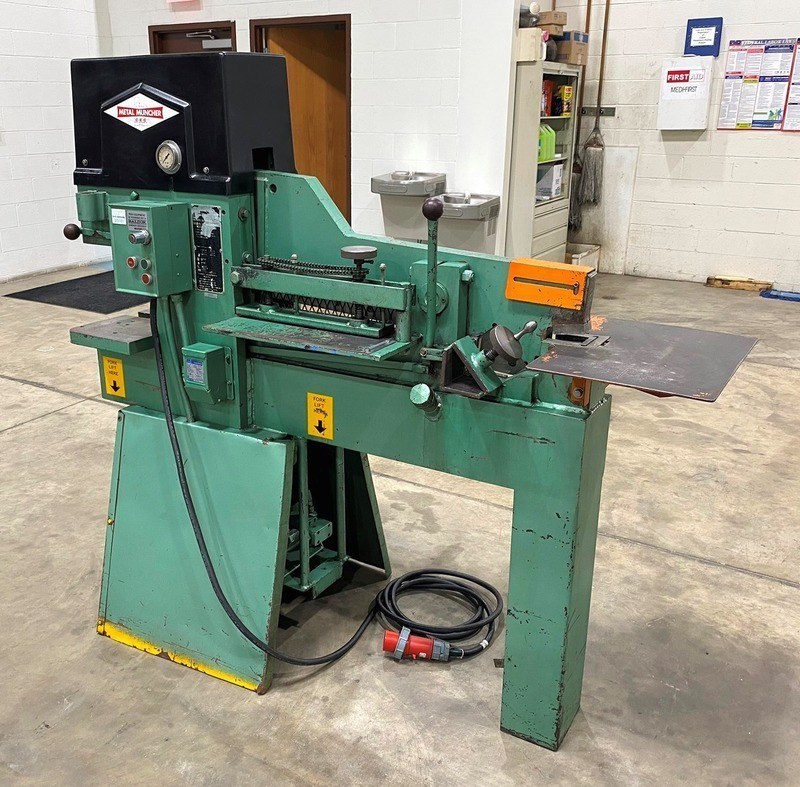

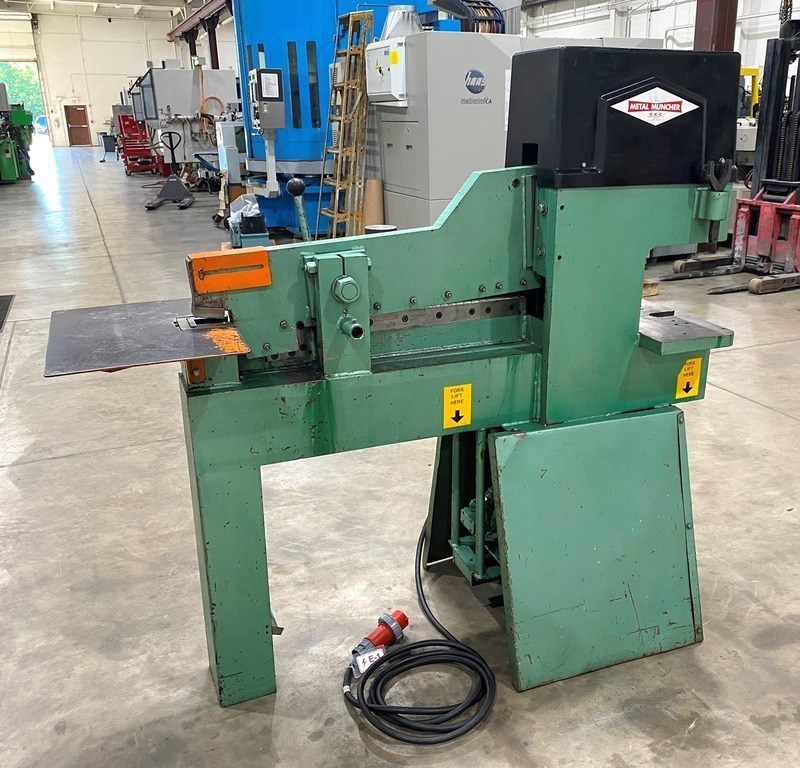

Metal Muncher Ironworker MM35
Serial No. CH283367
SPECIFICATIONS:
Tonnage…………35
Throat Depth…………10.5″
Open Height…………9.5″
Stroke Length…………4-1/2″
Ram Shaft Diameter…………2″
Strokes Per Minute…………40@1/2
Platen Table Size………..10″ (D) x 21″ (W)
Work Station Height (Approximate)…………36″
Punch:
– Hole Diameter Thru Material Thickness…………40 Ton
– Hole Thru Material – Maximum…………7/8″ thru 1/2″
– Hole with Special Tooling – Maximum…………2″ thru 1/4″
Flat Barshear on the Metal Muncher ironworker:
– @3/16″ Thickness…………18″ Length
– @1/4″ Thickness…………15″ Length
– @5/16″ Thickness…………14″ Length
– @3/8″ Thickness…………12″ Length
– @1/2″ Thickness…………8″ Length
– @3/4″ Thickness…………6″ Length
Angle Shear…………3″x 3″ x 5/16″
Bar Shear:
– Round………….1″
– Square…………1″
Coper Notcher 2-1/16″ x 2-3/4″ x 5/16″
Hydraulics:
– Pump GPM…………4
– PSI…………4,000
Motor…………3HP
Electrics…………230/460V. 3Ph
Dimensions – Catalog…………21″ x 60-1/4″ x 65-1/2″
Weight – Catalog…………2,200 Lbs.
*Preliminary specifications subject to verification
Ironworker machines like the Metal Muncher ironworker, also known as universal ironworkers or steelworker machines, are versatile and robust industrial machines used for cutting, punching, notching, and shearing various types of metal, primarily steel. These machines are commonly found in metal fabrication shops, construction sites, and manufacturing facilities.
Ironworker machines like the Metal Muncher ironworker are designed to handle a wide range of metalworking tasks. They typically consist of a hydraulic or mechanical power system that provides the force needed for cutting and shaping operations. Ironworkers feature multiple workstations or stations, each equipped with different tools and dies for specific operations such as punching holes, shearing flat bar or angle iron, notching, bending, and more.
The main advantage of ironworker machines like the Metal Muncher ironworker is their ability to perform multiple tasks with high precision and efficiency, reducing the need for separate machines or manual labor. They offer versatility and flexibility, allowing operators to switch between different operations quickly and easily.
Ironworkers like the Metal Muncher ironworker are valued for their strength and durability, capable of handling heavy-duty metalworking applications. They are built with sturdy frames and robust components to withstand the rigors of continuous and demanding use.
