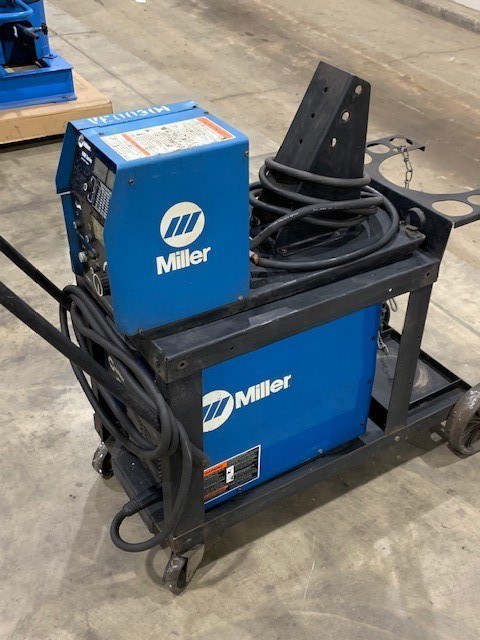

Miller XMT 304 CC/CV DC Inverter Arc Welder | 300A – #50309

Liberty Machine # 50309 Category Make

Miller XMT 304

New – 2007
Serial No. LH180582A
Miller XMT 304 SPECIFICATIONS:
3-PHASE USE:
Rated Output at 60% Duty Cycle 32 VDC…………300 A
RMS Amps Input at Rated Load Output:
– 230 V…………30.5 A
– 460 V…………18.9 A
– 575 V…………15.2 A
KVA…………12.2
kW…………11.6
1-PHASE USE:
Rated Output at 60% Duty Cycle 29 VDC…………225 A
RMS Amps Input at Rated Load Output:
– 230 V…………47.4 A
– 460 V…………24.5 A
kVA…………11.3
kW…………7.6
Voltage Range in CV Mode…………10 – 35 V
Amperage Range in CC Mode…………5 – 400 A
Open Circuit Voltage – Maximum…………90 VDC

EQUIPPED WITH:

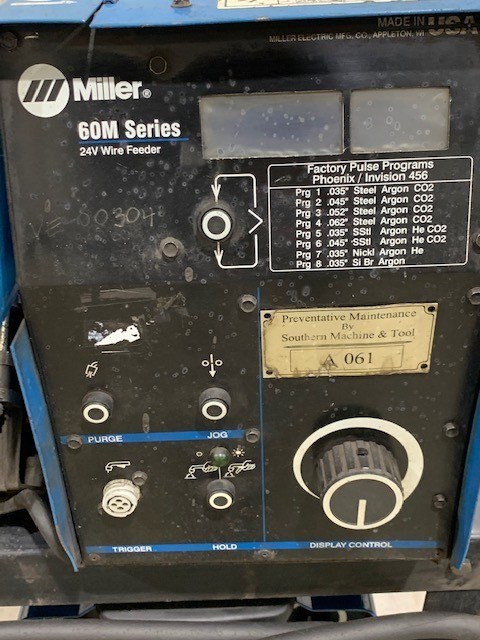

Miller 60M Series 24V Wire Feeder
Steel Cart

*Catalog Specifications Subject to Verification

Arc welders like the Miller XMT 304 , also known as shielded metal arc welders (SMAW) or stick welders, are popular and versatile welding machines used in various industries. They utilize an electric arc between an electrode (stick) and the workpiece to create a weld joint.

Arc welders operate by passing an electric current through the electrode, which is coated with a flux material. As the electrode is brought close to the workpiece, the flux coating melts, creating a protective shield around the molten metal like the Miller XMT 304. This shield prevents atmospheric contamination and facilitates the formation of a strong weld.

Arc welders are valued for their simplicity, portability, and ability to work in challenging conditions. They can be used for welding a wide range of metals, including steel, stainless steel, cast iron, and aluminum, making them suitable for construction, fabrication, maintenance, and repair applications.

One advantage of arc welders like the Miller XMT 304 is their ability to provide deep penetration, allowing for strong welds in thick materials. They are also well-suited for outdoor or remote work due to their simplicity and reliance on basic power sources.

In summary, arc welders are widely used for their versatility, reliability, and portability. They are well-suited for a range of welding applications and provide robust and effective solutions for joining metals.

Click HERE to read about arc welders like the Miller XMT 304.

Click HERE to read about welding positioners.
