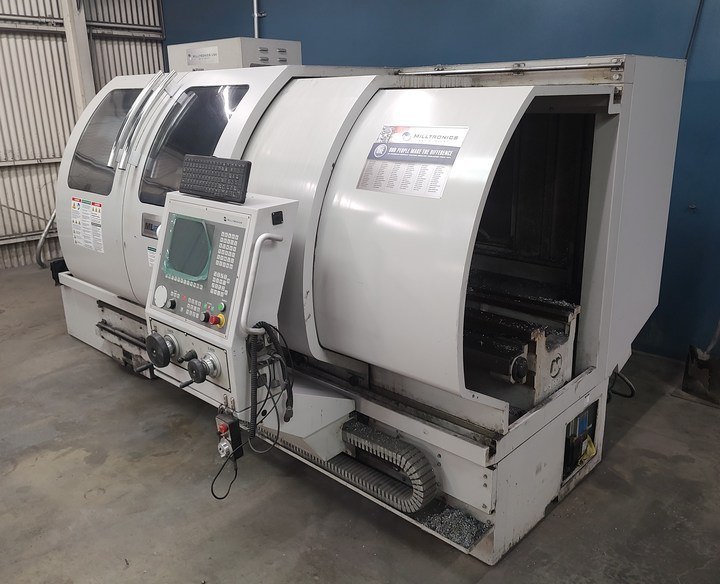

Milltronics ML22 CNC Lathe
New – 2016
SPECIFICATIONS:
X-Axis Travel: 13″
Z-Axis Travel: 63.5″
Swing over bed: 23″
Swing over gap: 30.3″
Swing over cross slide: 12.1″
Gap distance: 12.75″
Spindle nose: A1-8
Spindle bore: 3.22″
Spindle range: 2000 RPM
AC spindle motor: 24/15 HP
Tailstock quill travel: 6″
Tailstock quill diameter: 3.94″
Tailstock quill taper: MT5
Number of tools 8 TRT
Boring Bar Capacity: 1.5″
Tool selection: Bi-Directional
X, Z axis rapid traverse rate: 500 IPM
Max. cutting feed rate: 100 IPM
X axis ball screw diameter: 1.25″
Z axis ball screw diameter: 1.77″
Positioning accuracy: +- 0.00025″
Repeatability: 0.0002″
Axis thrust force X,Z: 2,300 LBS
Machine Height 83″
Floor Space Required (W x D) 143″ x83″
Machine Weight 10,000 lbs.
Power required 30 KVA / 80 amps
Voltage required 208-240 Volts / 3 Phase
Milltronics ML22 CNC Lathe EQUIPPED WITH:

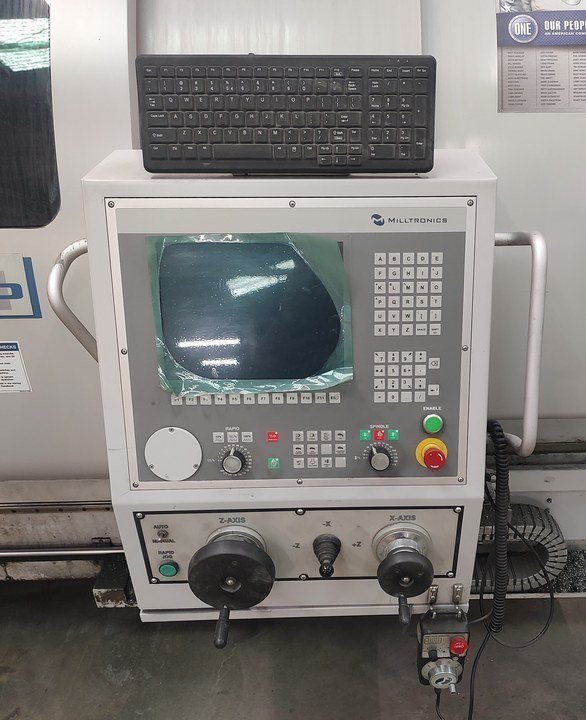

Milltronics 8200-B series CNC control

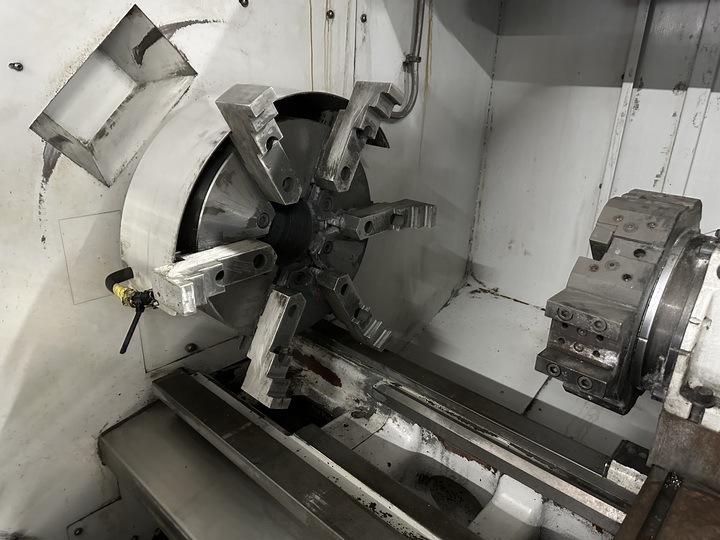

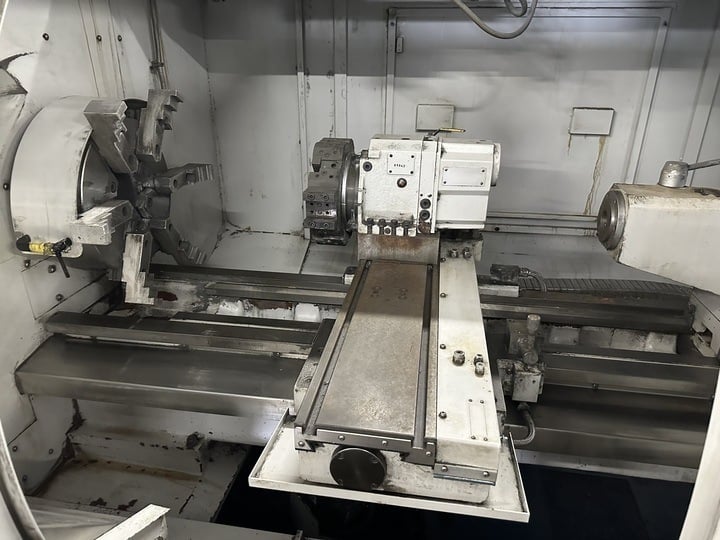

10″ 3-Jaw Hydraulic Chuck
Solid box way bed construction
2000 RPM spindle

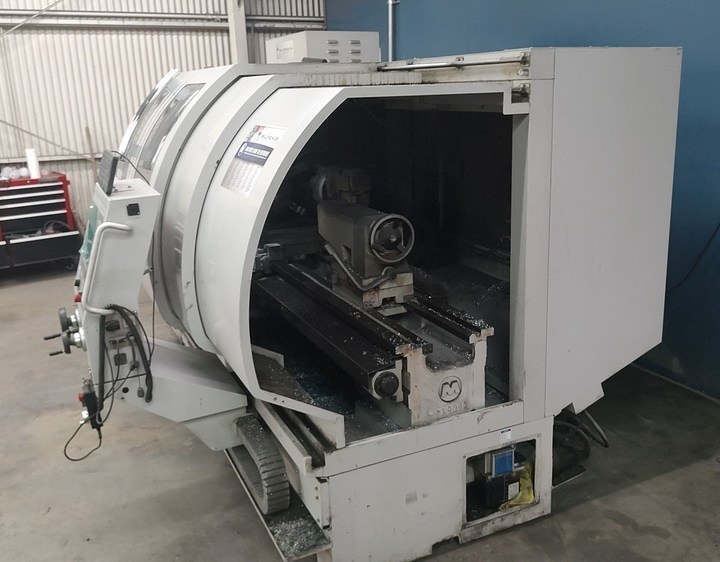

Tailstock
Auto lubrication
Full enclosure w/ sliding doors
3.22″ Spindle bore
A1-8 Spindle nose
12″ LCD color display
Spindle load meter
Flood coolant
Solid model graphic display
USB Port
Gap bed design

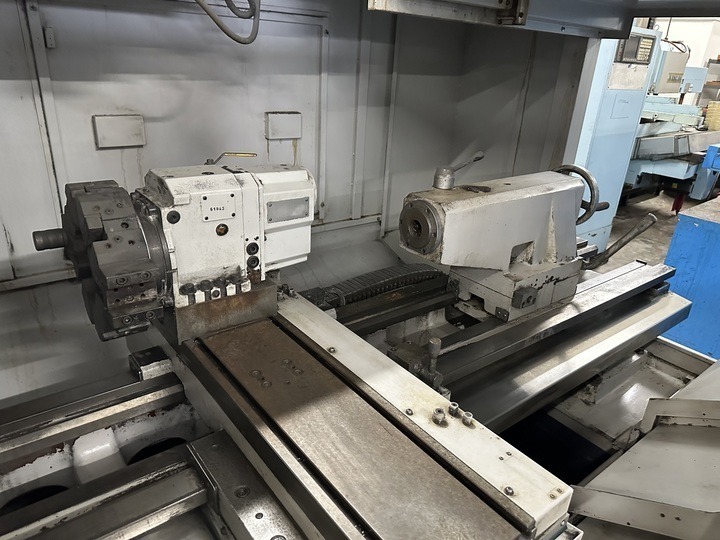

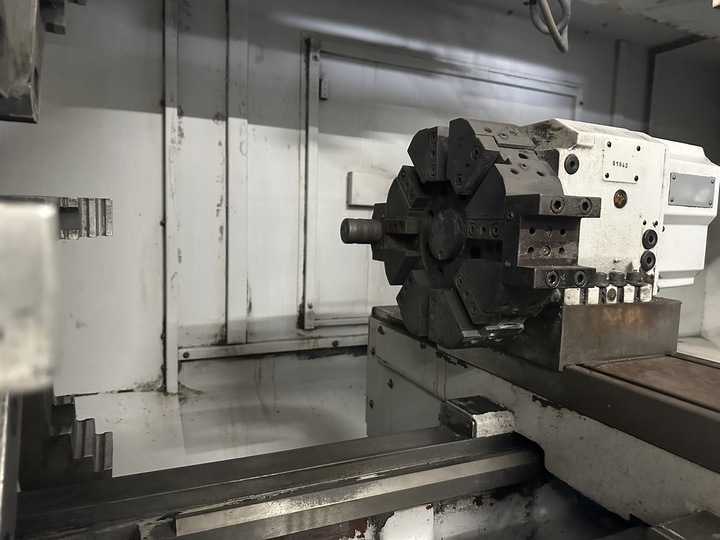

8 Station 1″ automatic turret
LCD hour meter
Thread chasing feature
*Preliminary specifications for Milltronics ML22 CNC Lathe, subject to verification.
