Mitsui MSG-250H-2AH Hydraulic Surface Grinder | 8″x18″ Electro-Mag Ck, Auto Feeds – #50408

Hydraulic Surface Grinder – Mitsui MSG-250H-2AH

Serial No. 79061575
New – 1980
SPECIFICATIONS:
Working Surface of Table…………8″ x 18″
Surface Ground – Maximum…………9-1/2″ x 20″
Distance between Table Surface & Spindle Center – Maximum…………22-1/2″
Grinding Wheel…………8″ x 3/4″ x 1-1/4″
Range – Longitudinal…………20″
Range – Cross (Automatic)…………9-1/2″
Range – Cross (Manual)…………10″
Range – Vertical…………16″
Longitudinal Feeds – Infinitely Variable…………5 – 68 FPM
Auto Crossfeed to Table per Stroke…………0.02″ – 0.05″ IPM
Auto Vertical Feed Increments, Ten Steps…………0.0001″ – 0.001″
Rapid Crossfeed Rate…………2 – 17 IPM
Elevating Handwheel Graduations…………0.0002″
Crossfeed Handwheel Graduations…………0.0008″
Crossfeed Vernier…………0.0001″
Super-Precision Spindle Drive…………1.5 kW/3/60/200-220 Volt
Dimensions – Actual…………56″(L-R) x 52″(F-B) x 78″(H)
Approximate Weight…………3,490 Lbs.

Mitsui MSG-250H-2AH Hydraulic Surface Grinder EQUIPPED WITH:
Automatic Incremental Downfeed of Grinding Wheel (Surface & Plunge)
Hydraulic Longitudinal & Power Crossfeeds
Fine Feed Option (Crossfeed) .000050″ (50 Millionths) Graduation
8″ x 18″ Walker Chuck with Neutrifier

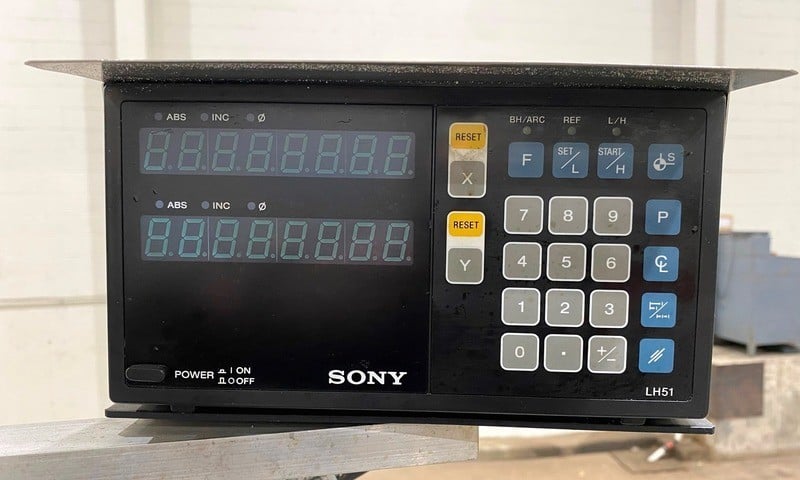

Sony Model LH-51 2-Axis Digital Read-Out
Ball Bearing Table Ways
Hardened & Ground Ways (Removable) on Table, Carriage/Saddle & Column
Over the Wheel Diamond Dresser
Automatic One Shot Lubrication System

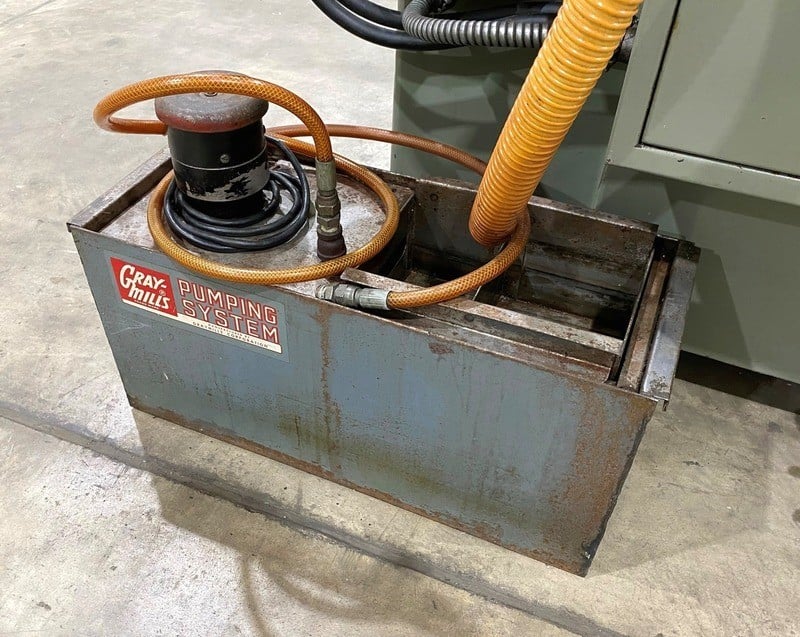

Gusher Coolant Pump & Tank
Books, Manuals, & Drawings

*Preliminary Specifications Subject to Verification

Reciprocating surface grinders like Mitsui hydraulic surface grinder, also known as surface grinding machines, are versatile and widely used tools in the metalworking industry. These machines are designed to precisely grind flat surfaces on workpieces with high accuracy and finish quality.

Reciprocating surface grinders consist of a horizontally or vertically mounted grinding wheel that moves back and forth in a reciprocating motion over the workpiece. The grinding wheel on a Mitsui hydraulic surface grinder, typically made of abrasive materials, removes material from the surface of the workpiece, resulting in a flat and smooth finish.

These grinders offer several advantages. They can remove large amounts of material quickly and efficiently, making them ideal for stock removal applications. Reciprocating surface grinders like the Mitsui hydraulic surface grinder are also capable of achieving precise dimensional tolerances and surface finishes, ensuring the workpiece meets the desired specifications.

To find out more about grinders click HERE and HERE.
