Serial No. 002-1034
New – 2006
SPECIFICATIONS:
Table:
– Longitudinal Movement (Automatic) – Maximum…………19.7″
– Cross Movement – Maximum…………8.3″ (6.7″ with Coolant Enclosure)
– Height from Table Surface to Spindle Center – Maximum…………3.1″ – 15.4″
– Working Area…………19.7″ x 7.1″
Vertical Feed:
– One Revolution of Pulse Generator (x1/x5)…………0.01″ / 0.05″ per Revolution
– Incremental Feed (x1/x5)…………0.0001″ / 0.0005″
– Incremental Auto. Downfeed…………0.0001″ – 0.0099″
– Variety of Downfeed…………Coarse, Medium, Fine
– Total Grinding Depth…………0 – 9.9999″
– Number of Spark Out…………0 – 9 times
– Power Elevation Speed/Jog Speed…………39″/min
Cross Feed:
– One Revolution of Pulse Generator (x1/x20)…………0.01″ / 0.2″ per Revolution
– Incremental Feed (x1/x20)…………0.0001″ / 0.002″
– Continous Feed…………0 – 39″/min
– Direction Control…………Teaching/DATA Input
Longitudinal Feed:
– One Revolution of Pulse Generator (x1/x200)…………0.01″ / 2″ per Revolution
– Incremental Feed (x1/x200)…………0.0001″ / 0.02″
– Direction Control…………Teaching/DATA Input

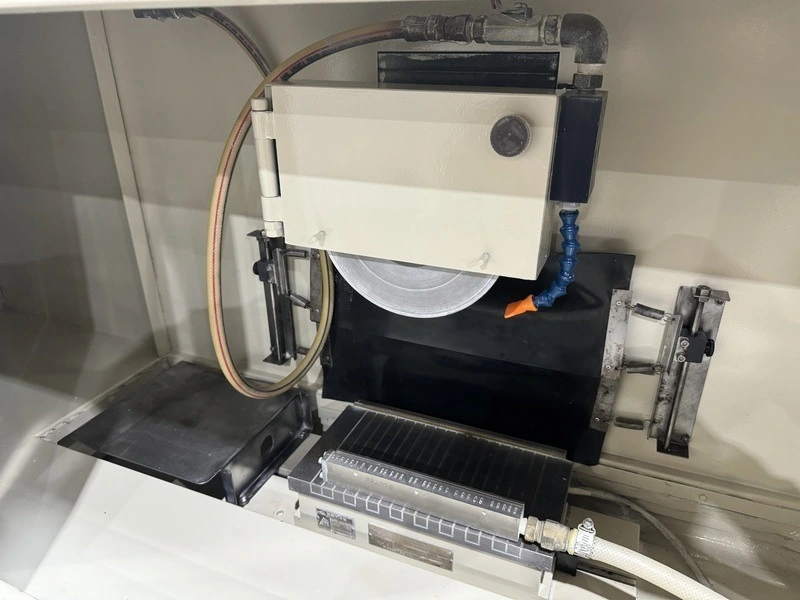

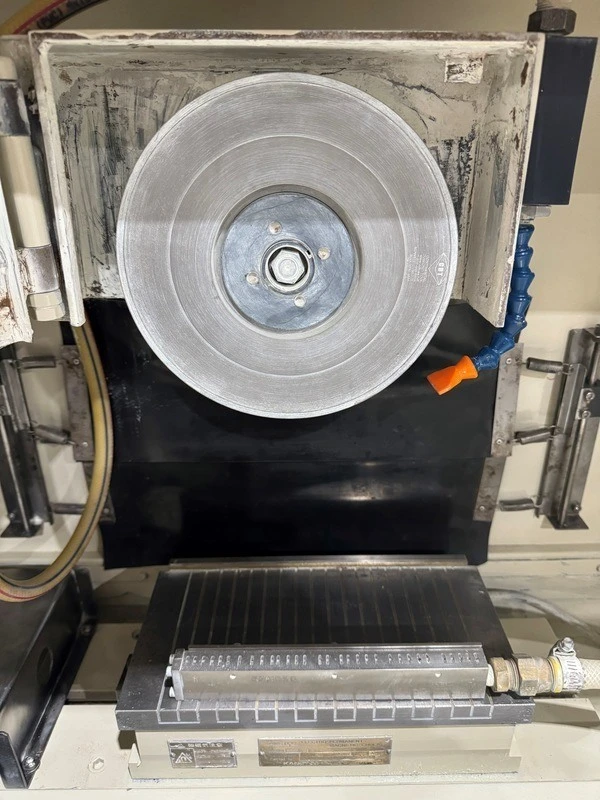

Grinding Wheel Size (Max. OD x W x ID)…………8″ x 0.75″ x 1.25″
Spindle RPM…………500 – 4000 RPM
Motors:
– Wheel Spindle…………2.95 HP
– Vertical Feed…………0.4 HP (AC Servo)
– Cross Feed…………0.4 HP (AC Servo)
– Longitudinal Feed…………0.8 HP (AC Servo)
Lubrication…………Automatic
Electrics…………200-220V/3PH/60Hz
Machine Dimensions – Approximate…………45.3″L x 82.7″W x 80″H
Machine Weght – Approximate…………5250 Lbs.
EQUIPPED WITH:

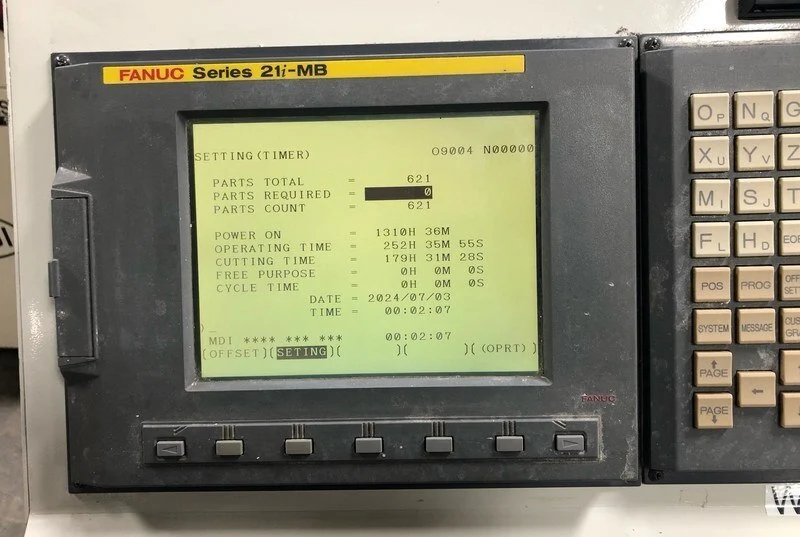

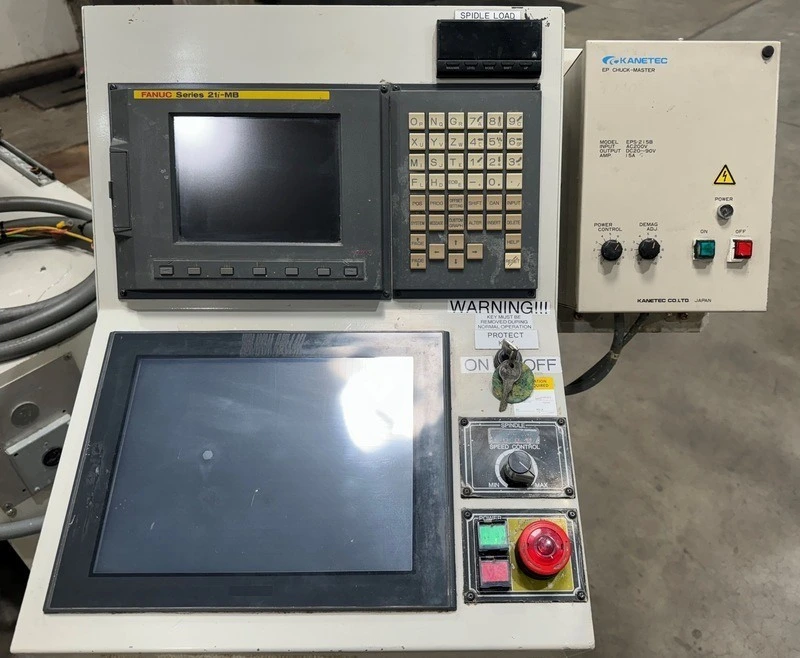

Fanuc Series 21i-MB CNC Controller

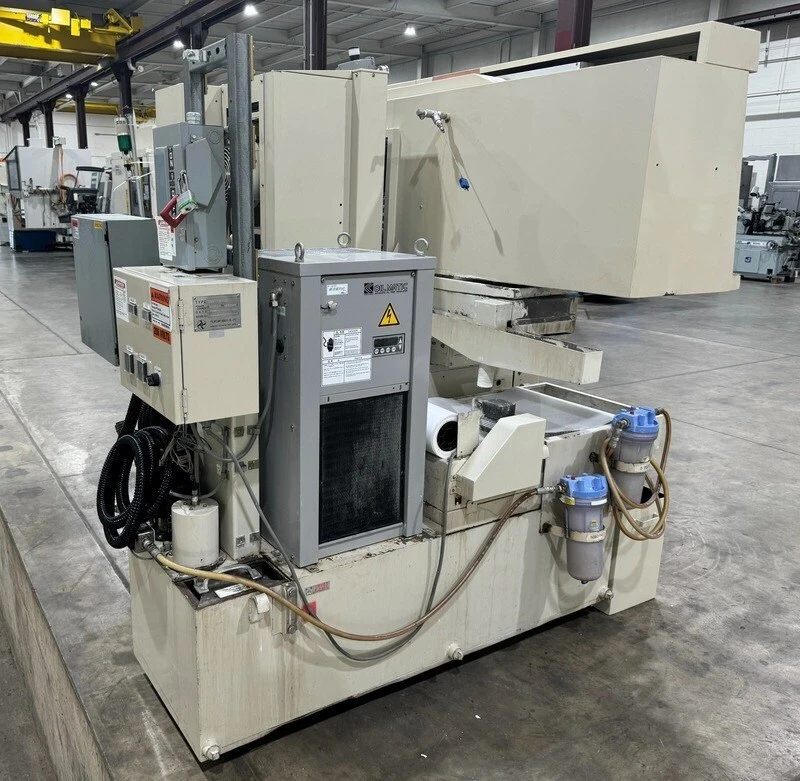

Paper Media Bed Coolant Filtration System with Swarf Bucket
Oil Matic Temperature Controller/Chiller

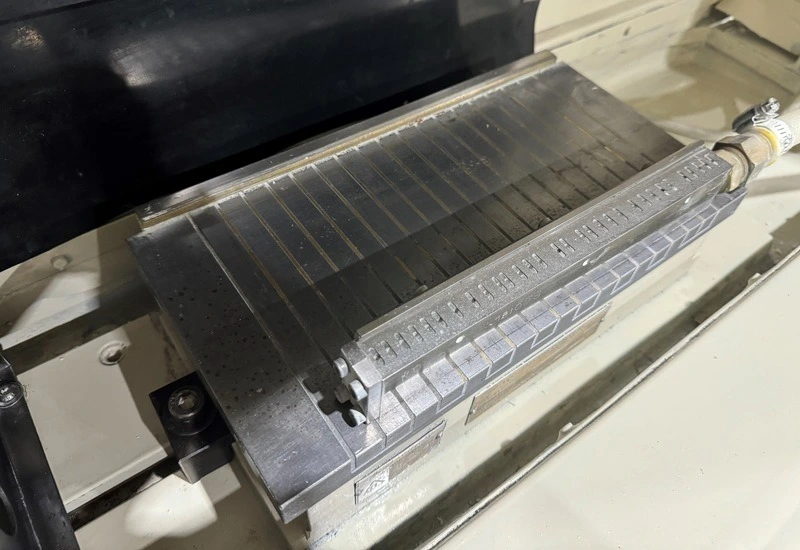

Kanetec Magnetic Chuck Controller
Full Enclosure
Machine Documentation
*Preliminary specifications, pending confirmation.
