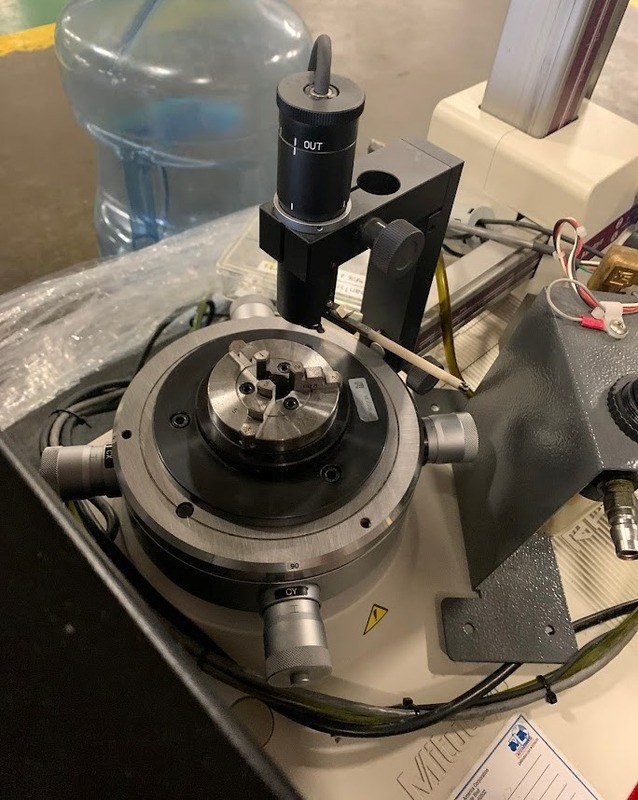

Mitutoyo RoundTest RA-120P
Serial No. 200021303
Mitutoyo RoundTest RA-120P SPECIFICATIONS:
Workpiece Capacities:
– Height…………11″
– Diameter…………17.3″
– Weight…………55 Lbs.
Probing Capacities:
– Height…………11″ From the Turntable Top (18.9″ in the reverse and vertical detector configuration)
– Diameter…………11″ (15″ in a reverse and vertical detector position)
– Depth…………3.9″ (Minimum ID: 1.2″)
Turntable:
– Rotational Accuracy – Radial…………0.04 + 6 H/10000 μm, H: Probing height (mm)
– Rotational Accuracy – Axial…………0.04 + 6 H/10000 μm, X: Probing Radius (mm)
– Rotational Speed…………6 RPM
– Effective Table Diameter…………5.9″
– Centering Range Adjustment…………+/- 0.12″
– Leveling Range Adjustment…………+/- 1 Deg.
– Workpiece Diameter – Maximum…………17.3″
– Turntable Loading – Maximum…………55 Lbs.
Vertical Column Travel (Z-Axis)…………11″ From the Turntable Top
Horizontal Arm Travel (X-Axis)…………6.5″ (Including a Protrusion of 1″ from the Turntable Rotation Center)
Mitutoyo RoundTest RA-120P Detector:
– Measuring Direction…………Two Directional (In/Out Switchable)
– Measuring Range…………+/- 0.04″
– Measuring Force…………70 to 100 mN (+/- 30%)
– Standard Stylus (12AAL021)…………Carbide Ball, 0.06″ Diameter
Electronic Unit:
– Measuring Range……………………8 Steps: +/- (1000, 500, 200, 100, 50, 20, 10, 5) μm
– Magnification…………X1 to X500,000
– Cutoff Value…………15 upr, 50 upr, 150 upr, 500 upr, Manual, 15 – 150 upr, 15 – 500 upr, 50 – 500 upr, manual
– Filter Type…………Not Phase Corrected: 2CR75, 2CR50 Filter Off
– Number of Measuring Sections – Maximum…………100
– Data Output – USB and RS-232C…………Calculation Result, Measurement Data
– Data Output – SPC…………Calculation Result
Air:
– Pressure…………0.39 MPa
– Consumption – Minimum…………30 L/Min
Electrics…………100 – 240V/ 21-24 W
Weight – Air Filter…………5 Lbs.
Weight – Main Machine…………70 Lbs.
Mitutoyo RoundTest RA-120P EQUIPPED WITH:
Fine Adjustments on X and Z Axes
D.A.T. Function
Continuous ID and OD Measuring Function
Scaled Z-Axis
Display Function for Various Graphs
High Precision Air Bearing
Wide-Range Detector
Supports 18 Languages
*Preliminary Specifications on Mitutoyo RoundTest RA-120P Subject to Verification.
This entry-level desktop tester incorporates the ROUNDPAK multi-analysis evaluation program, which provides it with analytical power close to that of more elaborate models. This is, therefore, a highly functional multi-analysis roundness measuring machine that is suitable for use not only in measurement rooms, but also in research and development sections. Mitutoyo RoundTest RA-120P.
