Year Built – 2014
Serial No. 5606
SPECIFICATIONS:
Thru-Feed Grinding Diameter…………6.5″
Infeed (Plunge) Grinding:
– Diameter…………0.040″ – 6.5″
– Length – Maximum…………14″
– Accuracy…………2 Microns (at 1.2″ diameter)
Grinding Wheel:
– Diameter…………20″
– Width…………14″
– Bore………….10″
– Speed…………1,200 RPM
– Power…………40 HP

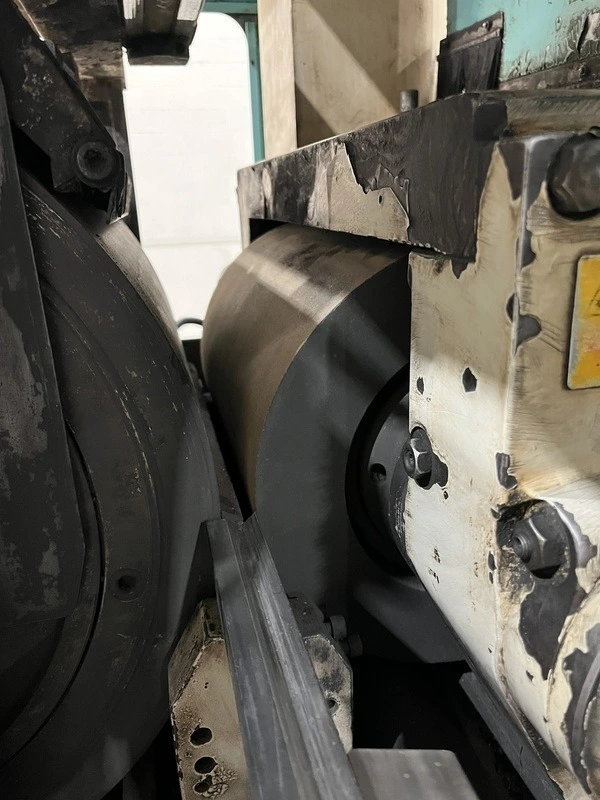

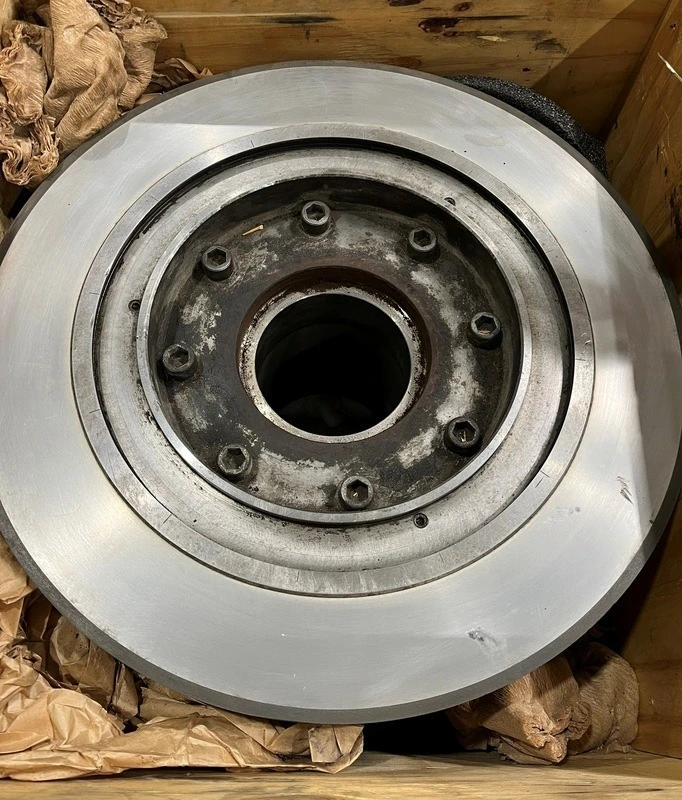

Regulating Wheel:
– Diameter…………12″
– Width…………13.98″
– Bore………….. 5.5″
– Speed (Inf. Variable)…………12 – 280 RPM
– Headstock Feed Angles…………-8° to +8°
– Headstock Slide Swivel Angles…………0° to 5°
Allowable Workpiece Size:
– Diameter…………0.12″ – 5.91″
– Length…………0.079″ – 13.78″
Length for Infeed Grinding – Aximum…………13.78″
Dimensions – Approximate:
– Grinder…………75″L x 100″W x 55″H
– Control…………27″L x 48″W x 51″H
– Loader…………
Weight – Approximate…………10,500 Lbs.
EQUIPPED WITH:

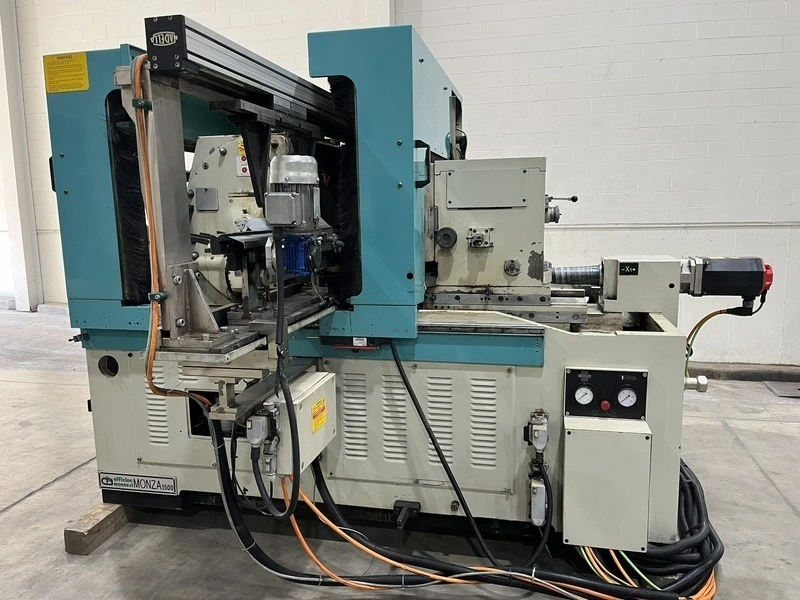

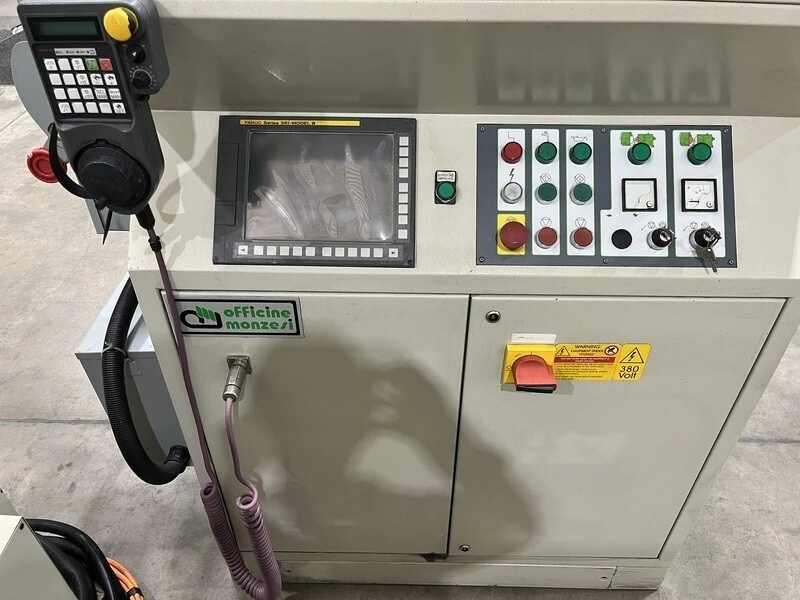

Fanuc 35i-Model B CNC Controller (Monza RETT.1500)
Hydraulic Dressers for both Grind and Reg Wheel

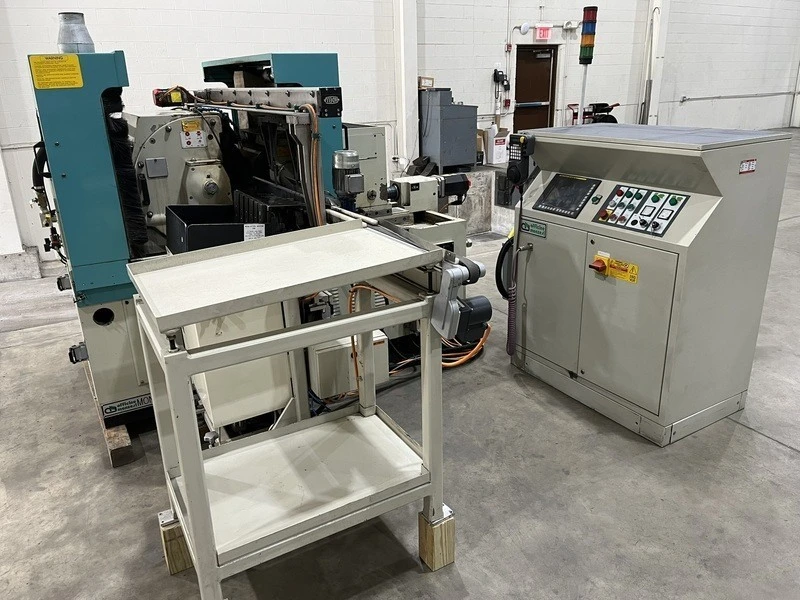

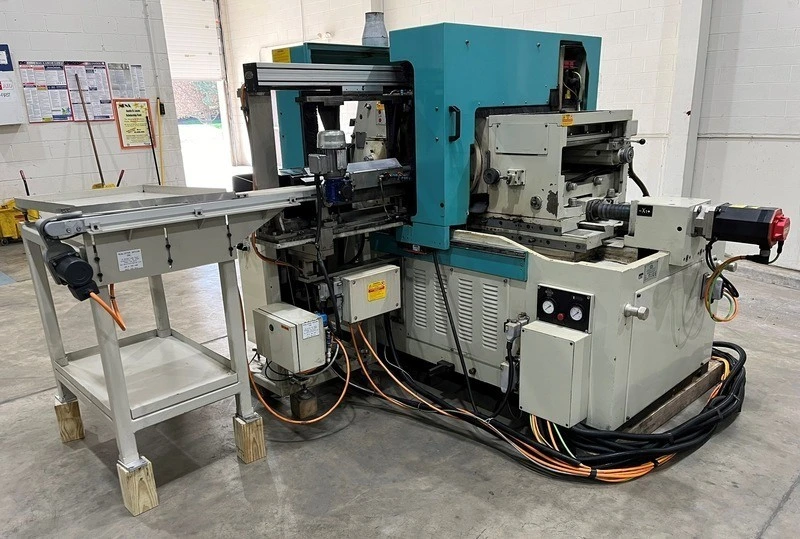

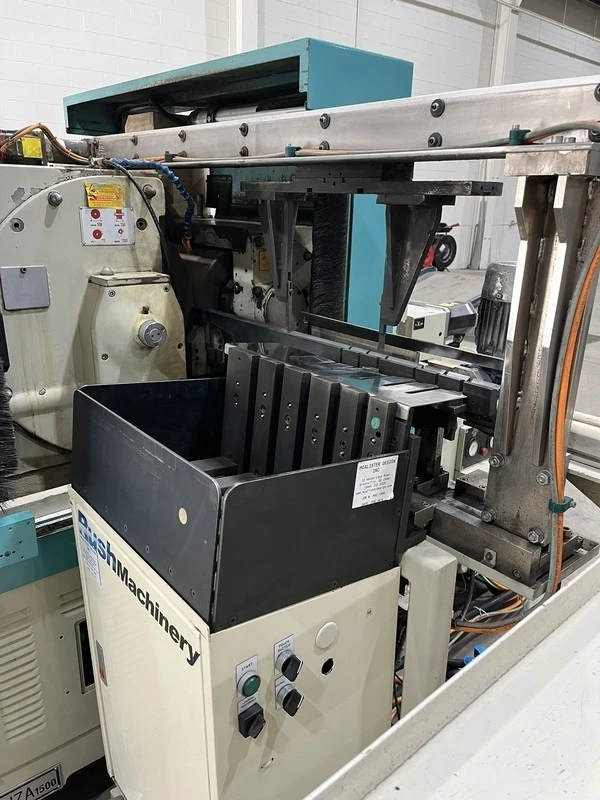

McAlister Design Automation Package ( job # PSC-1000) designed for loading 13″ carbide Rods:

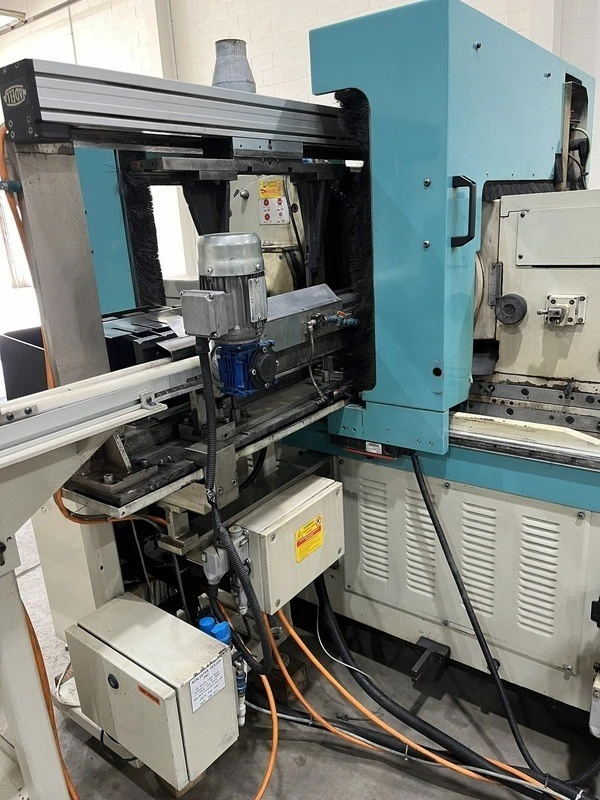

Elevating Hopper Loader, CNC axis controlled Gantry Parts Handler with fingers. Loader rolls the part down to fingers which act as guides. Overhead gantry moves part between wheels (reciprocates/oscillates at a programmed speed) Regulating wheel creeps in & out.
Operators Manual, Coolant Filtration Manual, Electrical Schematics
*Preliminary specifications, pending confirmation
