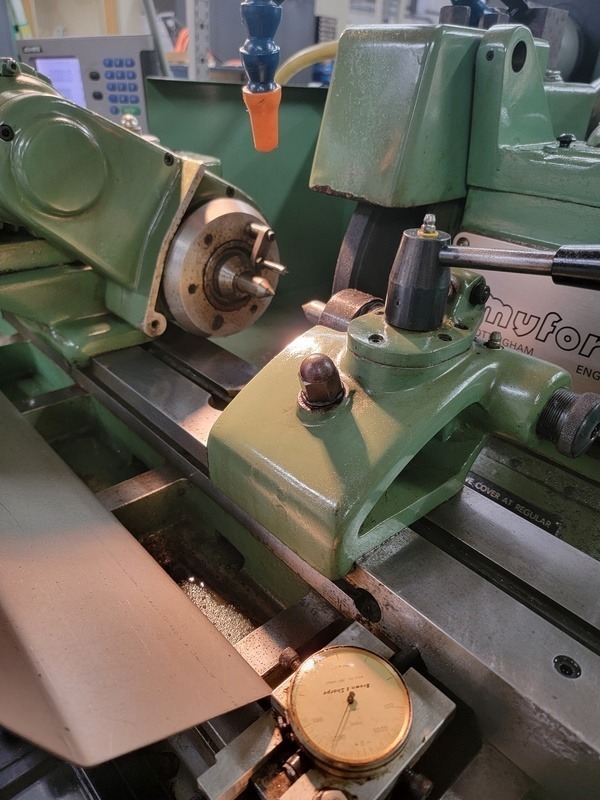

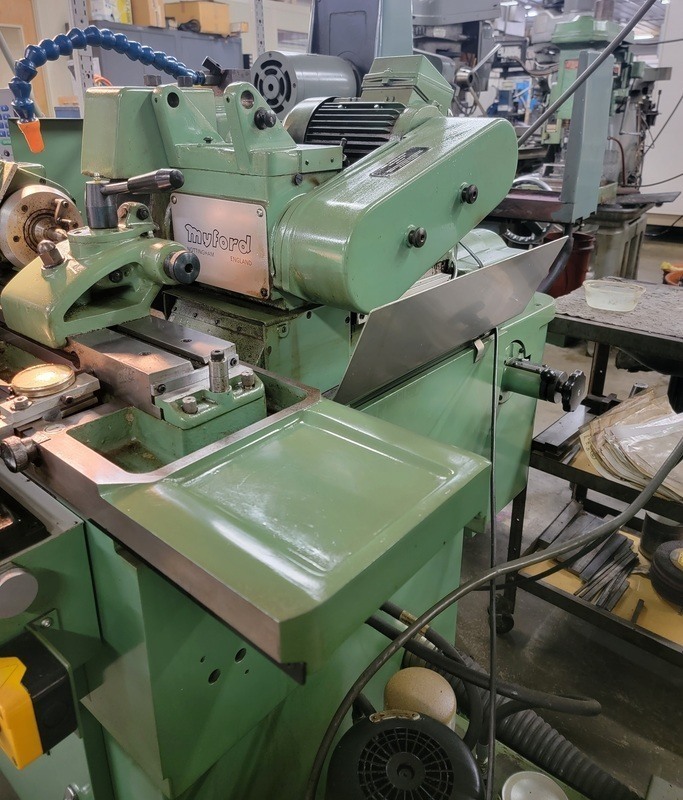

5″ x 12″ Myford MG12-HPM | 12″ x 1.5″ x 5″ Whl, 2 HP, Hyd. Traverse & Feeds – #50812

Refurbished by Royal-Master

SPECIFICATIONS:
Grinding Diameter - Maximum............3"
Table:
- Swing - Maximum............5"
- Travel - Maximum............12-3/4"
- Distance Between Centers............12"
- Swivels Either Way............ 10 Deg
- Travel pre Revolution of Headwheel............0.44"
- Hydaulic Traverse............0-120" IPM
- Dwell - Carriage.............0 - 8 Sec
Wheelhead:
- Total Travel by Feedscrew............3-7/8"
- Hydraulic Rapid Retraction...........1-1/8"
- Infeed per Revolution of Headwheel............0.025"
- Graduation (Infeed)............0.0001"
- Fine Feed to Dead Stop............0.000025"
- Automatic Infeed Rate............0.0001" -.001"
- Grinding Wheel - Standard............12" x 1.5" x 5"
- Grinding Wheel - Recessed............10" x 1" x 3"
- Wheel Spindle Speeds (2)............2,200/2,500 RPM
- Motor............2 HP
Workhead:
- Speeds (12)............75 - 780 RPM
- Capacity thru Standard Draw Tube............3/4"
- Collet Capacity - Maximum............3/4"
- Motor............1/4 HP
Dimensions - Catalog............52"(L-R) x 55"(F-B) x 58"(H)
Weight - Catalog............2,000 Lbs.

EQUIPPED WITH:
Automatic Plunge and Traverse Grinding Cycles
Plunge Grinding
Traverse Grinding
Visual Indication of Feed
Spark-Out
Handwheel Collet Chuck
Worklight
Table Type Wheel Dresser
Automatic Lubrication System
Coolant System with Coolant Filtration System

*Preliminary Specifications Subject to Verification.
