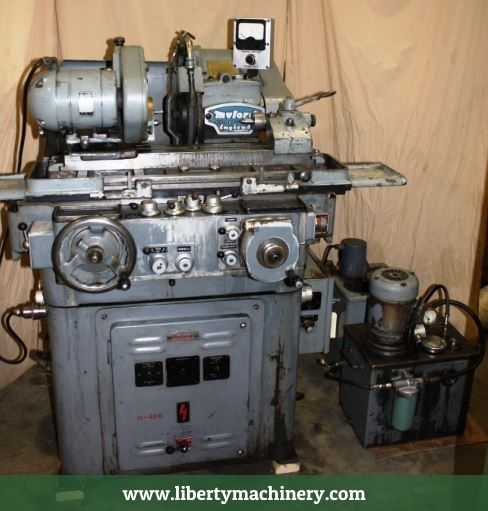

Myford MG12-HPT Cylindrical Grinder | 5" x 12" Cap. - #42012

Liberty Machine # 42012 Category Make

Serial No. HP77958

SPECIFICATIONS:
Grinding Diameter - Maximum.................................................3"
Swing Over Table............................................................5"
Table Travel - Maximum.................................................13-3/4"
Distance between Centers...................................................12"
Table Swivels Either Way............................................10 Degrees
Table Travel per Revolution of Handwheel.................................0.44"
Hydraulic Table Traverse..........................................0 - 120" IPM
Dwell - Carriage.................................................0 - 8 Seconds

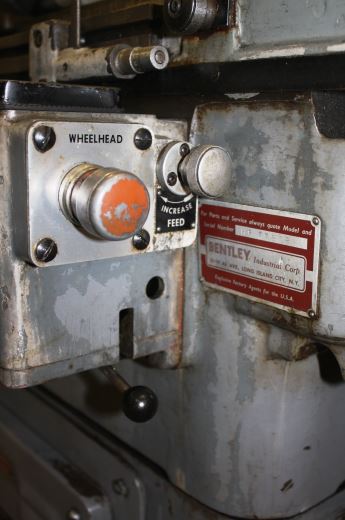

Wheelhead:
Total Travel by Feedscrew...............................................3-7/8"
Hydraulic Rapid Retraction..............................................1-1/8"
Infeed per Revolution of Handwheel......................................0.025"
Wheelhead Graduation (Infeed)..........................................0.0001"
Fine Feed to Dead Stop...............................................0.000025"
Automatic Infeed Rate..........................................0.0001" - .001"
Grinding Wheel (Recessed)........................................10" x 1" x 3"
Wheel Spindle Speeds (2)...................................2,200 and 2,500 RPM
Wheelhead Motor...........................................................2 HP
Workhead:
Speeds (12).......................................................75 - 780 RPM
Capacity thru Standard Draw Tube..........................................3/4"
Collet Capacity - Maximum.................................................3/4"
Workhead Motor..........................................................1/4 HP

Electrical.......................................................440V/3Ph/60Hz
Dimensions - Actual...............................52"(L-R) x 55"(F-B) x 58"(H)
Weight - Approximate................................................2,000 Lbs.

EQUIPPED WITH:
Automatic Plunge & Traverse Cycling
Automatic Plunge Infeed w/Depth of Feed Control

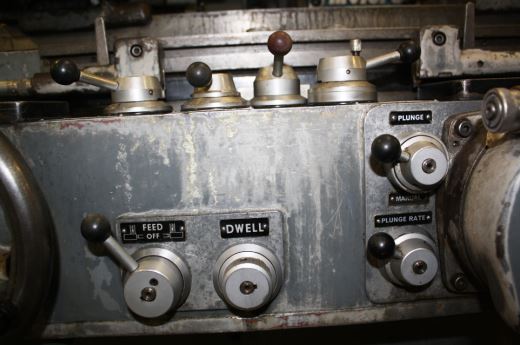

Variable Dwell at Each Table Movement
Rapid Wheelhead Advance/Retraction
Coarse/Fine Feed Changeover

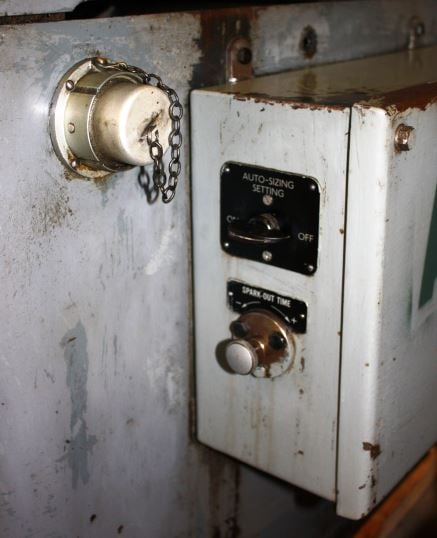

Sparkout Timer
External Coolant Pump & Tank

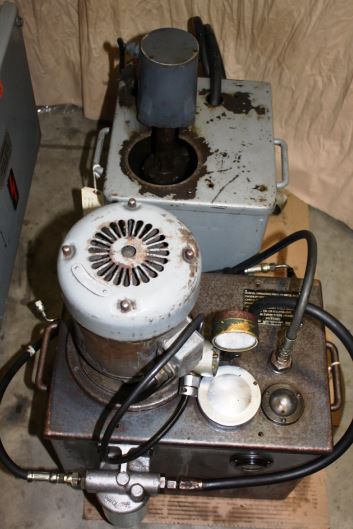

External Hydraulic Pump & Tank

*Preliminary Specifications Subject to Verification.
