Nagel DM50-2-2 Twin-Spindle Deep Hole Drilling Machine W/ Counter Rotation & Hi-Pressure Coolant System | 1/2" x 32" Stroke - #49682

Liberty Machine # 49682 Category Make

New - 2005
Serial No. 331-0031

SPECIFICATIONS:
Capacity:
- Bore Size..................................................0.035" to 0.5"
- Stroke................................................................32"
- Part Length when Utilizing Counter-Rotation - Maximum.................24"
Drilling Spindles:
- Number..................................................................2
- Type..........................................................Independent
- Speeds....................................................Up to 4,000 RPM
- Power................................................................2 HP
Counter Rotation Speed.........................................90 - 300 RPM
Feed:
- Rate...................................................0.0003"/Revolution
- Speed.............................................................1.2 IPM
Jog Speeds:
- Slow...........................................................2.9528 IPM
- Fast...........................................................78.741 IPM
Hi-Pressure Coolant Filtration System:
- Coolant Pressure................................................2,000 PSI
- Coolant Delivery Rate........................................Up To 13 GPM
- Capacity.........................................................95 Gals.
Electrics:
- Gun Drill...................................................480V/3Ph/60Hz
- Coolant Pre-Filter..........................................460V/3Ph/60Hz
- ChipBLASTER.................................................230V/3Ph/60Hz
Dimensions - Actual:
- Gun Drill.............................................150" x 66" x 63"(H)
- Coolant Pre-Filter.....................................75" x 40" x 35"(H)
- ChipBLASTER............................................57" x 36" x 51"(H)
Weight - Approximate.............................................4,000 Lbs.

EQUIPPED WITH:
Twin Independent Spindles

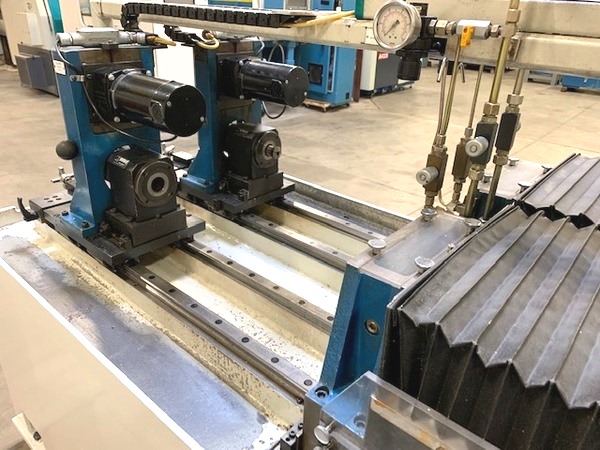

Dunham Tailstocks w/Variable Speed Counter-Rotation for each Spindle

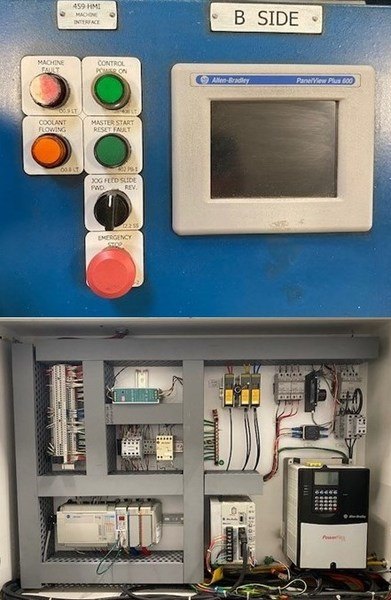

(2) Allen Bradley PanelView 600 Controls
(2) Allen Bradley Powerflex 70 AC Drives
(2) Allen Bradley Ultra 3000i Digital Servo Drives
(2) Allen Bradley Micro Logix 1500 PLCs
Programmable Feed Rates, Spindle RPM, & Drill Depth

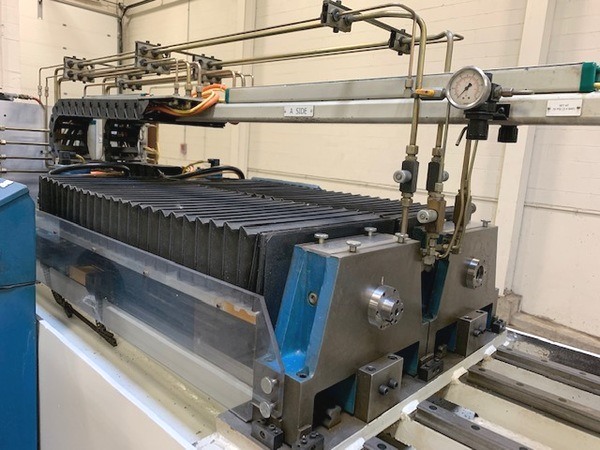

(2) Whip Guides for each Spindle

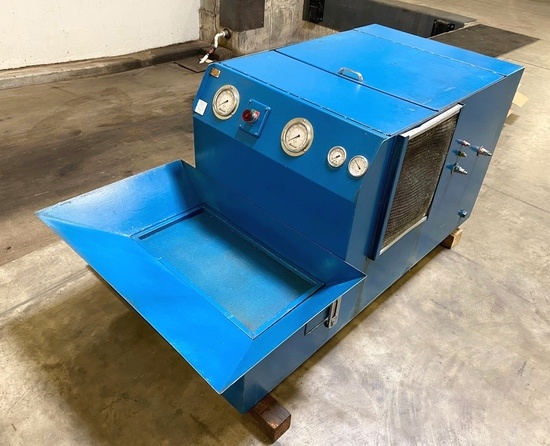

Advance Motion Controls Chip Bin w/Coolant Pre-filtering
ChipBLASTER EV2000 Hi-Pressure Coolant Filtration System
Electronic Monitoring for Coolant Filtration System
Workpiece Cooling via Air Blow Nozzles

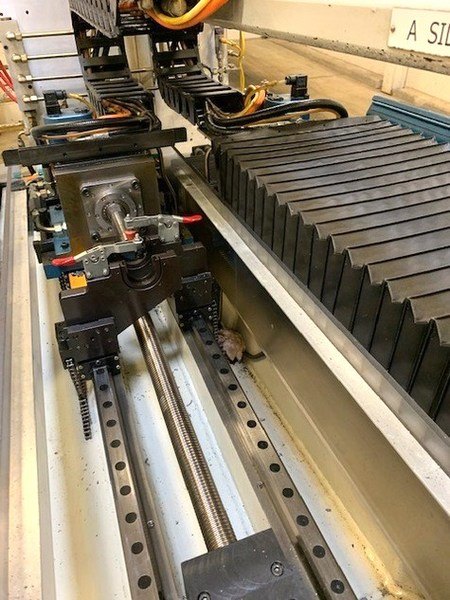

Heavy-duty Re-circulating Ground Ball Screws

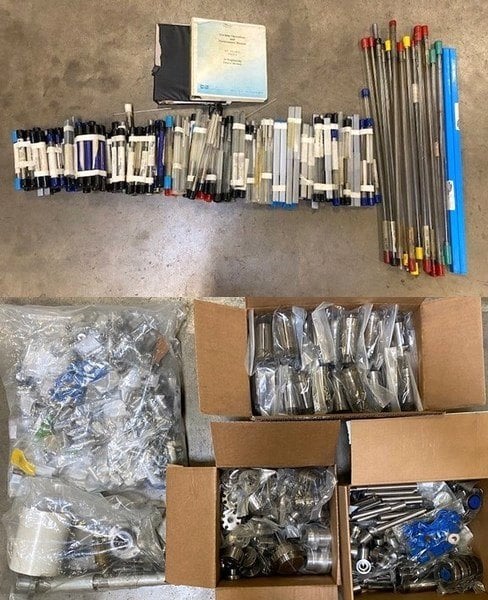

Gun Drills, Guide Bushings, 5C Collets for Counter Rotation
Machine Documentation

*Preliminary Specifications Subject to Verification
