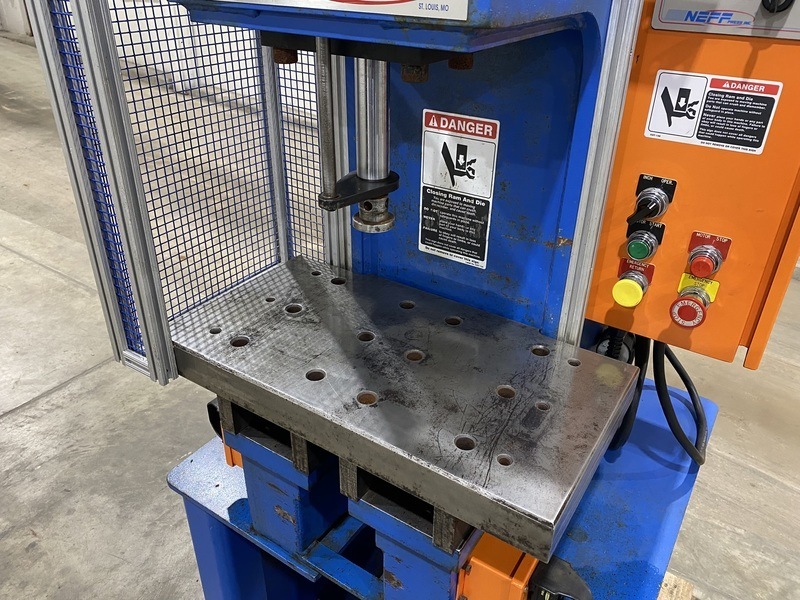

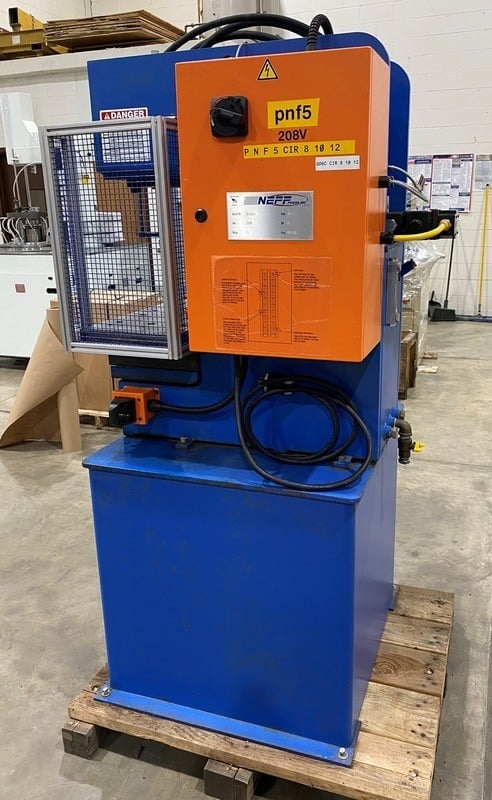

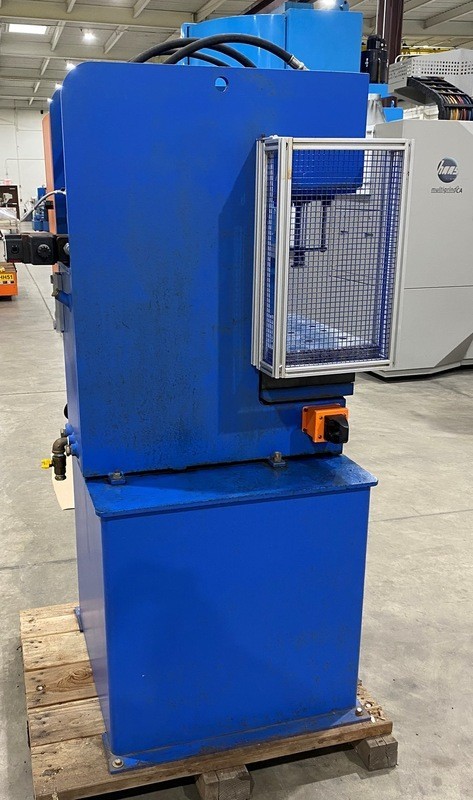

Neff Press D4-5M | 4.7T, Hydraulic, Down-Acting, C-Frame, 7″Str, 18″DLO – #50659

Liberty Machine # 50659 Category Make

Neff Press D4-5M

New – 2001
Serial No. 11616
CATALOG SPECIFICATIONS:

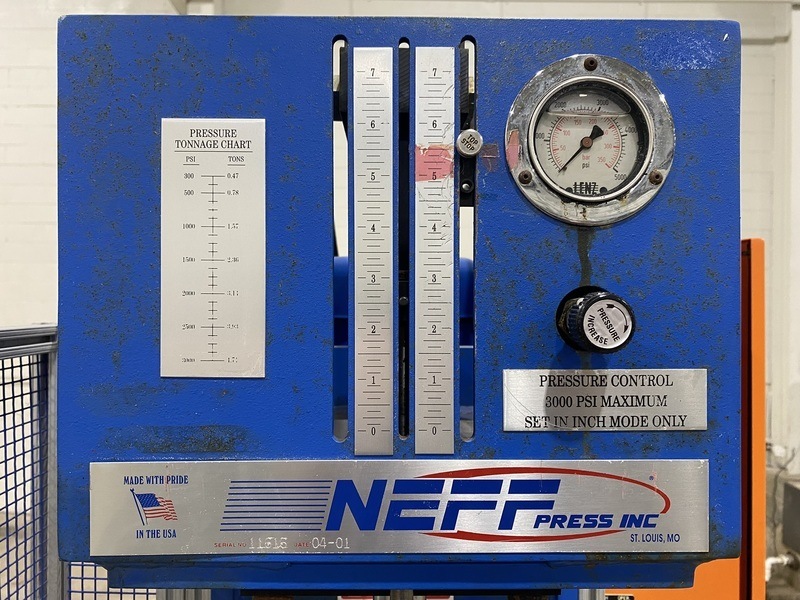

Tonnage Capacity…………0.47 – 4.71 Tons
Piston Diameter…………2.0″
Rod Diameter…………1.375″
Stroke…………0.5″ – 7.0″
Daylight…………18″
Throat…………7″
Ram Thread…………1-14 x 1-5/8″ deep
Ram Speed:
– Advance…………500 IPM
– Press…………240 IPM
– Return…………455 IPM

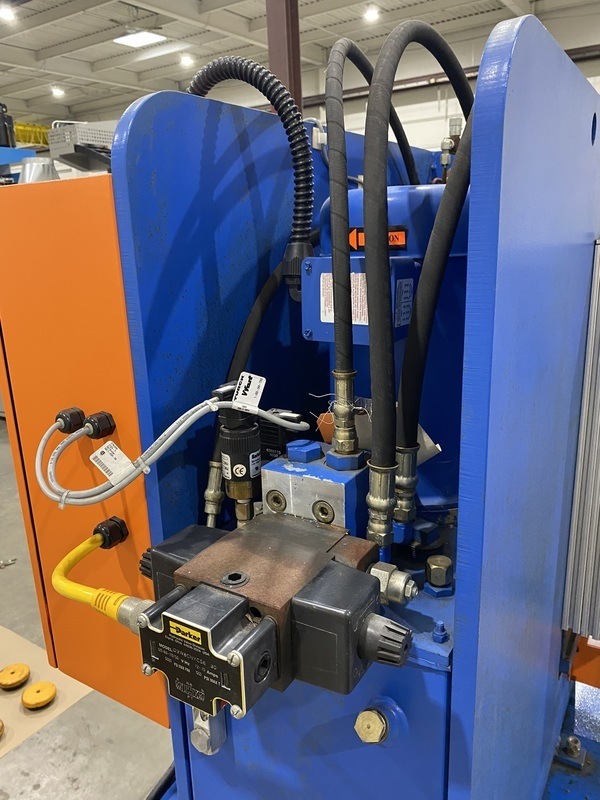

Pump Flow…………3.25 GPM
Operating Pressure…………300 – 3,000 PSI
Motor…………5 HP/ 1800 RPM
Reservoir Capacity…………12 Gallons

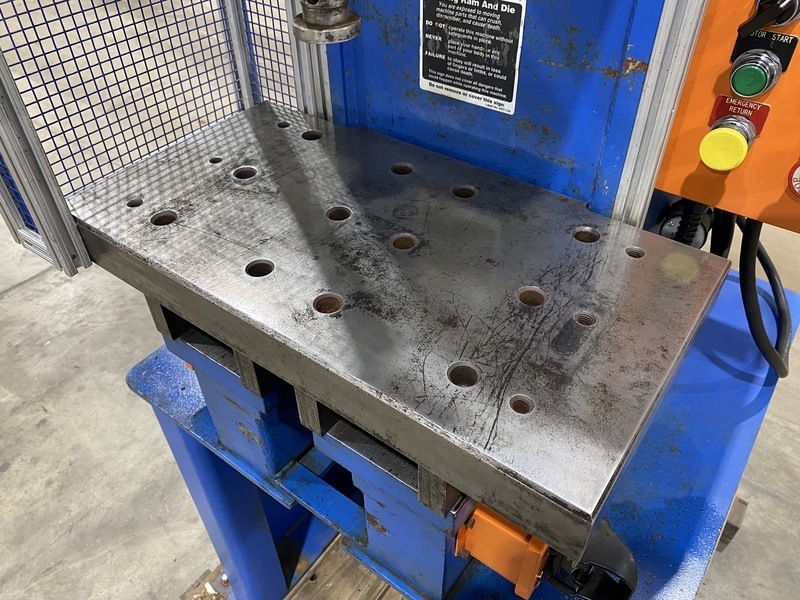

Bed…………14.5″(L-R) x 10.5″(F-B) x 1.5(T)
Bed to Base (G)…………8.75″
Frame Width…………13.5″
Electrics…………208 V/3 PH/ 60 Hz
Dimensions – Actual…………31″ (F-B) x 32″ (L-R) x 70″ (H)
Weight – Catalog…………1600 Lbs.

Neff Press D4-5M EQUIPPED WITH:

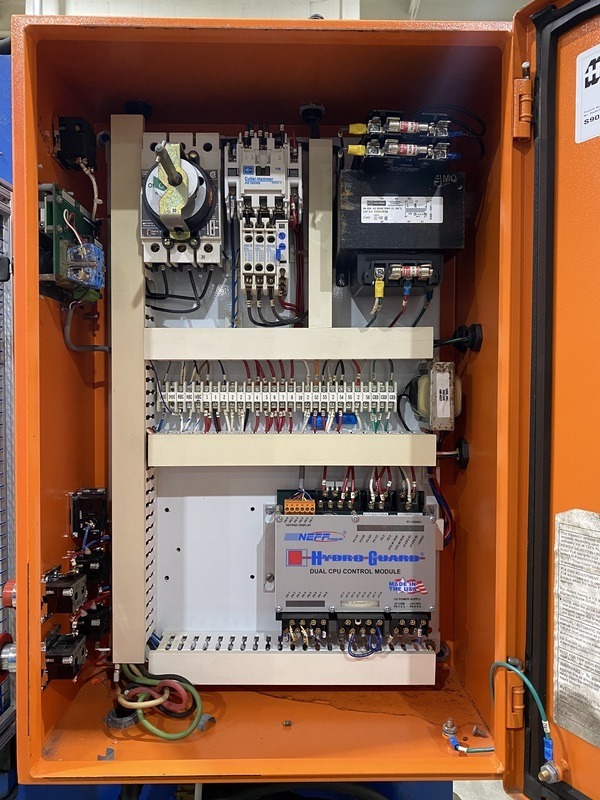

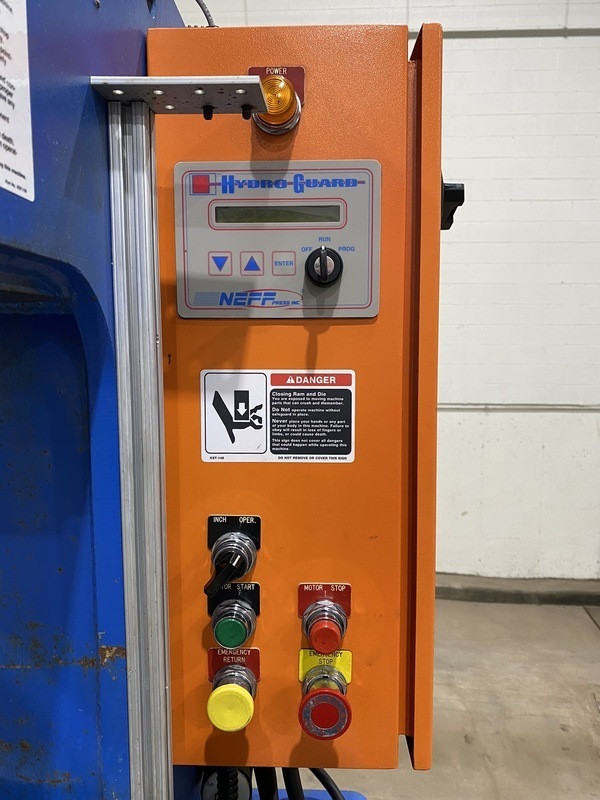

Hydro Guard Dual CPU Control Module (PLC)
Dual Anti-Hold Down Safety Buttons
Steel Stand
Leveling Pads
Safety Guarding
22″(L-R) x 11.5″(F-B) x 2″(T) Bolster

*Preliminary Specifications Subject to Verification

Hydraulic C-frame presses like the Neff press, also known as C-frame hydraulic presses, are versatile and robust machines used for various pressing and forming operations. These presses derive their name from their C-shaped frame structure, which provides stability and rigidity during the pressing process.

Hydraulic C-frame presses utilize hydraulic power to generate force for pressing applications. They consist of a vertically oriented frame with a movable ram that is powered by hydraulic cylinders. The ram on the like the Neff press is capable of moving up and down to apply force to the workpiece.

These presses offer several advantages. Their C-frame design provides easy access to the work area, allowing for efficient loading and unloading of workpieces. Hydraulic power provides precise control over the pressing force, allowing for accurate and repeatable results. The force exerted by hydraulic C-frame presses like the Neff press can be adjusted to meet the specific requirements of different materials and applications.

Hydraulic C-frame presses find applications in various industries, including automotive, aerospace, appliance manufacturing, and metal fabrication. They are commonly used for tasks such as bending, forming, punching, and assembling components.

In summary, hydraulic C-frame presses like the Neff press are versatile machines that offer precise and efficient pressing capabilities. Their robust design, adjustable force, and accessibility make them valuable tools for a wide range of pressing and forming operations in different industries.

To find out more about presses click HERE and HERE.
