Emco Maier Emcomat FB-600L Universal Milling Machine | 3-Axis DRO – #49987

Liberty Machine # 49987 Category Make

Universal Milling Machine – Emco Maier Emcomat FB-600L

Serial No. F600D02/F8A134661
New – 2013

SPECIFICATIONS:
Work Area:
– X-Axis: Horizontal Longitudinal Feed…………23.6″
– Y-Axis: Horizontal Cross Feed…………15.7″
– Z-Axis: Vertical Table Feed…………15.7″
Table:
– Size…………31.5″(L-R) x 15.7″(F-B)
– Workpiece Weight Capacity…………661.4″ Lbs.
– T-Slots…………8
Spindle:
– Speed Range…………10 – 5,000 RPM
– Taper…………SK40
– Quill Travel…………3.1″
– Swiveling Vertical Milling Head…………+/- 90 Degrees
– Clearance Above Table…………1.6″ – 17.3″
– Power…………100%/40% ED (12.1/17.4 HP)
Feeds:
– X/Y/Z Axis…………0.4 – 78.75 IPM
– Rapid X/Y/Z…………197 IPM
Coolant System:
– Capacity…………10.6 Gallons
– Delivery Rate – Maximum…………6.6 GPM
Electrics…………400V/3Ph/50Hz
Machine Dimensions – Catalog…………83″(L-R) x 87″(F-B) x 79″(H)
Machine Weight – Catalog…………4,630 Lbs.

EQUIPPED WITH:

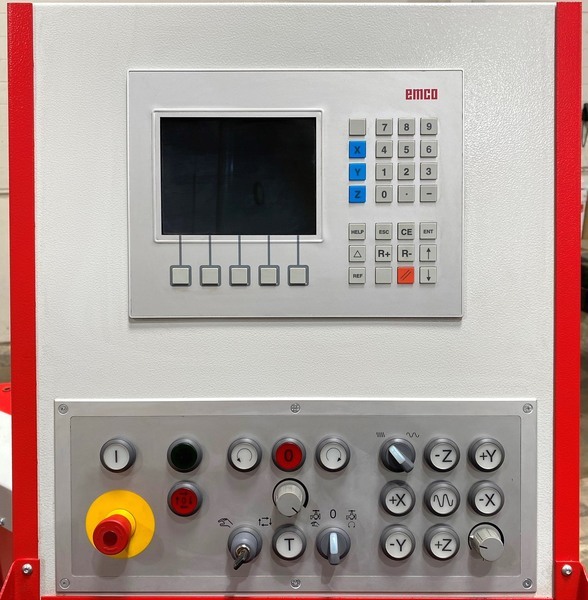

EMCO 3-Axis DRO
3-Axis Measuring System
Vertical Milling Head +/- 90 Degree Swiveling

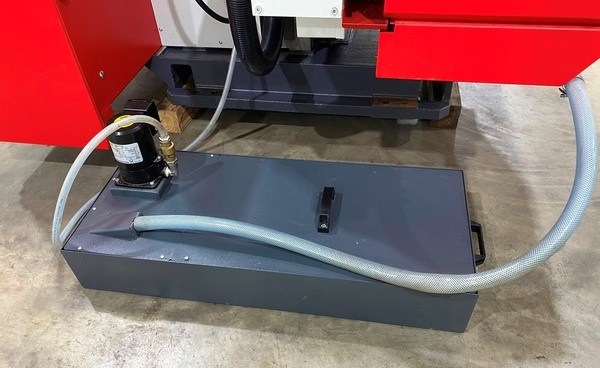

Coolant System
Chip Tray
Chip Guard for Working Area

*Catalog Specifications Subject to Verification
