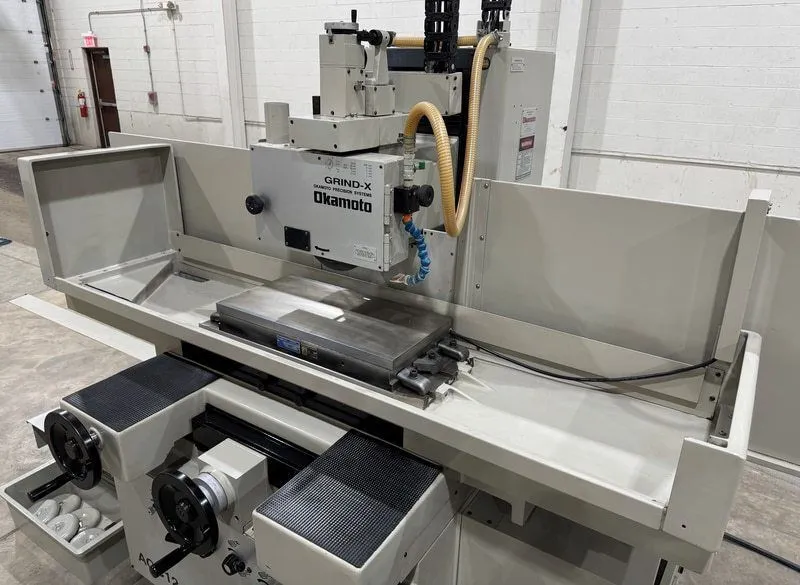

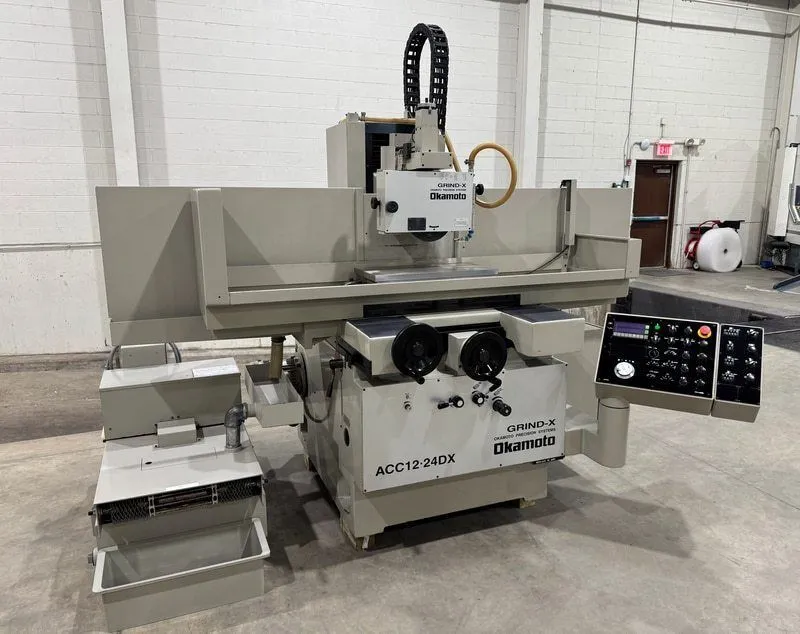

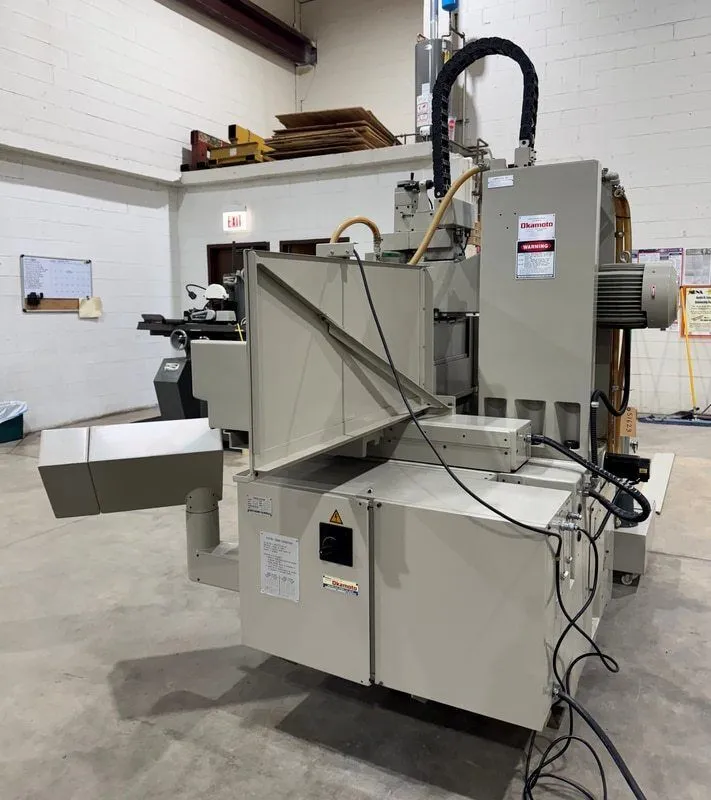

ACC-DXV Series features a full overhead automatic dress cycle with dress compensation, wheel wear compensation, and dress interval selection. A rotary encoder installed on a hydraulic over-the-wheel dresser adjusts wheelhead position to maintain the grinding wheel to workpiece relationship. Automatic wheelhead retract moves the wheelhead to a selected start position after cycle completion.
New – 2018
Serial No. 65999
CATALOG SPECIFICATIONS:
Table:
– Working Capacity…………12″ x 24″
– Capacity Manual (Cross x Long)…………14″ x 29.5″
– Distance from Table Top to Underside of Wheel (12″ Wheel)…………0.9″ – 12.7″
– Distance from Table Top to Underside of Wheel (14″ Wheel)…………1.9″ – 13.6″
– Load Capacity…………925 lbs
Longitudinal Feedrate…………1 – 82 ft/min
Hand Feed per Revolution…………1.85″

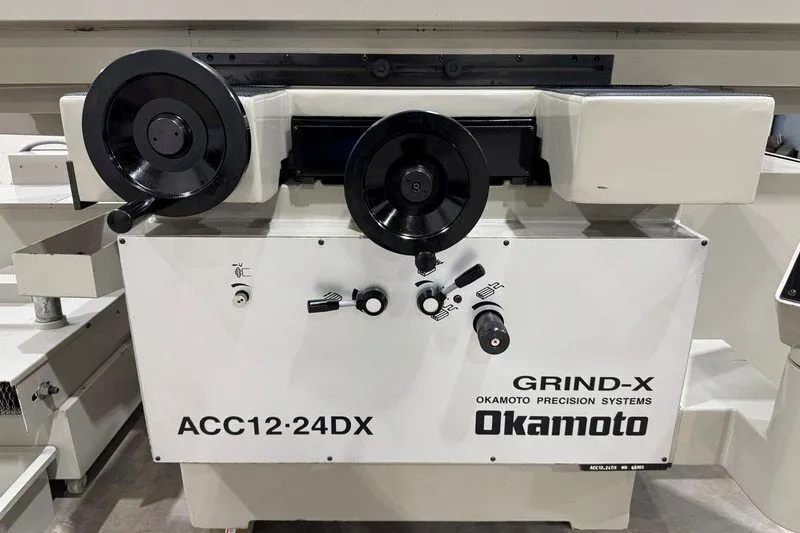

Cross Feed:
– Hand Feed/Revolution…………0.25″
– Automatic Intermittent Feed…………0.02″ – 0.8″
– Automatic Continuous Feed…………4 – 40″
Servo Driven Automatic Downfeed…………0.00005″ – 0.0015″ (10 Stages)
Number of Spark-Out Times…………0 – 5
Vertical Rapid Feed & Downfeed…………16 in/min
Grinding Wheel:
– Size – Maximum (Diameter x Width x Bore)…………14″/12″ x 1.5″ x 5″
– Speed…………1800 rpm
Motors:
– Grinding Wheel Spindle…………5 hp
– Hydraulic Oil Pump Motor…………2 hp
– Vertical Rapid Feed & Downfeed…………0.5 hp, AC Servo
Dimensions – Approximate…………107″ (L-R) x 75″ (F-B) x 82″ (H)
Weight – Approximate…………5,300 Lbs
EQUIPPED WITH:
Full Overhead Auto Dresser Control (Programmable)
– Automatic wheel head retract
– Programmable dress interval
– Automatic dress compensation
– Automatic wheel wear compensation
Over-the-wheel dresser

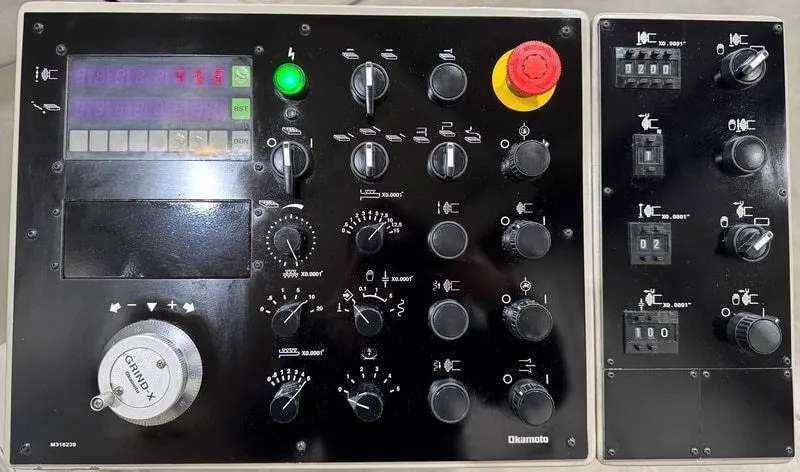

Vertical Position Display
Rough Downfeed Selector Switch (10) Selectable Increments 0.00005″ – 0.0005″
Finish Grind Selector (Fine) 0.001″ or 0.002″ above final grind position
Fine Downfeed Selector Switch (Pre-Set Increment) (6) 0.00005″ – 0.0005″
Grind Cycle Switch
Fully Automatic: Surface, Bias, Plunge Grinding, Rough & Finish, Spark-Out, Table Park L-R

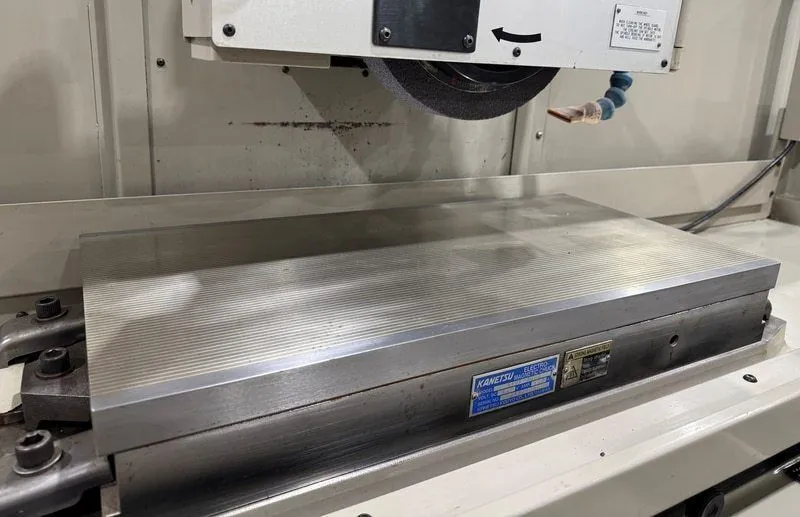

Fine pole electro-magnetic chuck

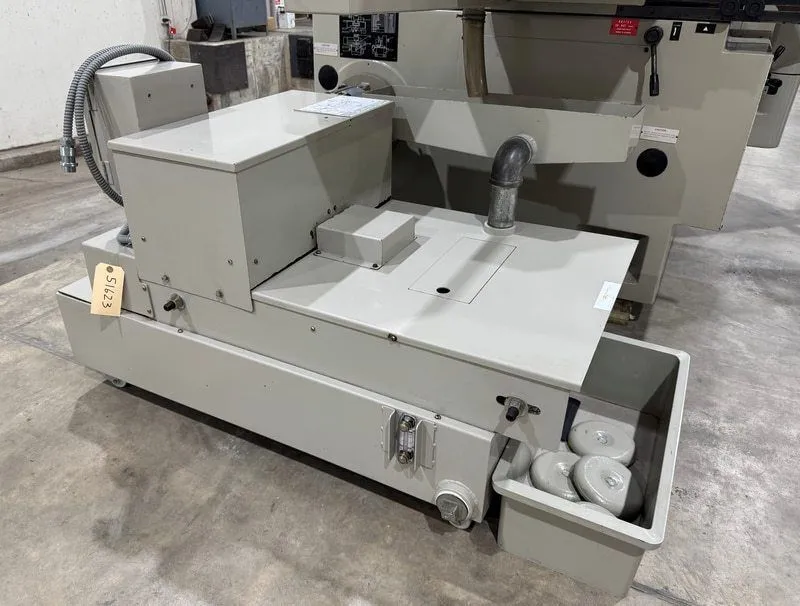

Paper bed coolant filtration system
*Catalog specifications, pending confirmation.
