Okamoto IGM-15NC ID Grinding Machine | Fanuc, 5.9"Dia x 4.9"L Bore Grind Cap, 20K RPM, 2011- #50318

Liberty Machine # 50318 Category Make

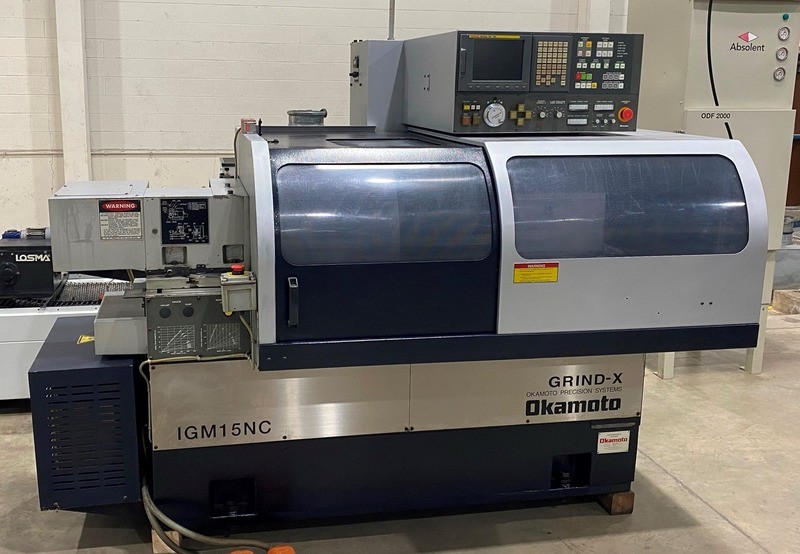

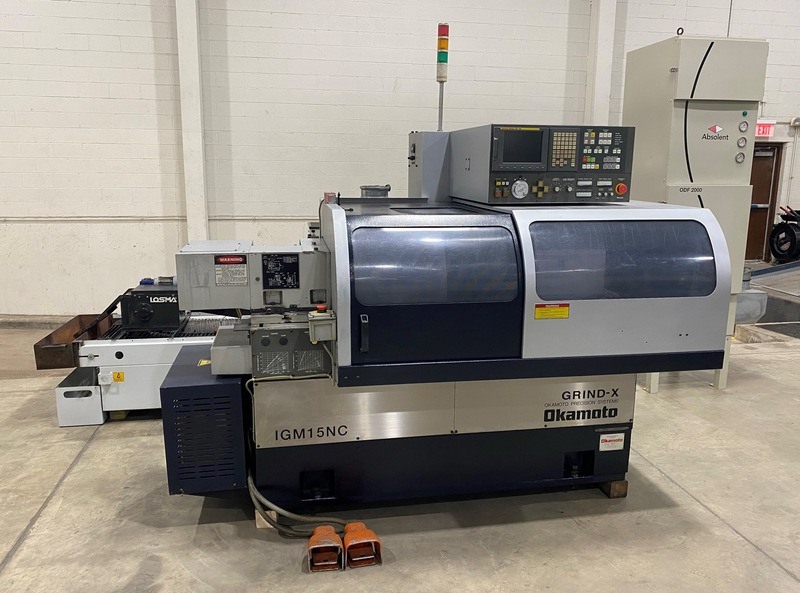

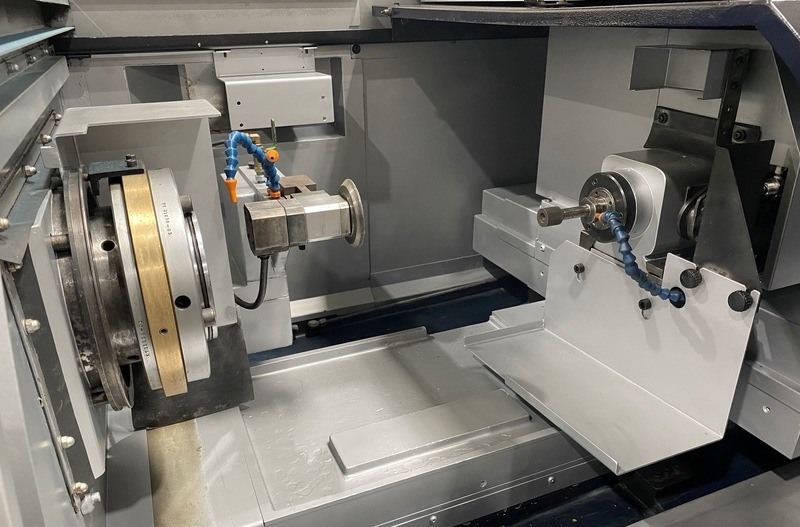

Okamoto IGM-15NC CNC ID Grinding Machine
New - 2011
Serial No. 15113

SPECIFICATIONS:
Grinding Capacity:
- Bore Diameter............0.24" - 5.91"
- Length - Maximum............4.92"
Swing:
- Within Chuck Cover............10.24"
- Over Bed............23.62"
Wheel Spindle Infeed (X axis):
- Travel - Maximum............6.69"
- Input Increment - Minimum (Diameter)............0.0000394"
- Automatic Feedrate............0.00394 - 393.7 in/min
- Rapid Traverse (Manual, Auto)............393.7 in/min
Table Longitudinal Feed (Z axis):
- Travel - Maximum............19.69"
- Input Increment - Minimum.............0.0000394
- Automatic Feedrate............0.00394 - 393.7 in/min
- Rapid Traverse (Manual, Auto)............393.7 in/min
Wheel Spindle:
- Speeds............10,000 - 50,000 rpm
- Motor............AC 2.95 HP (2P)

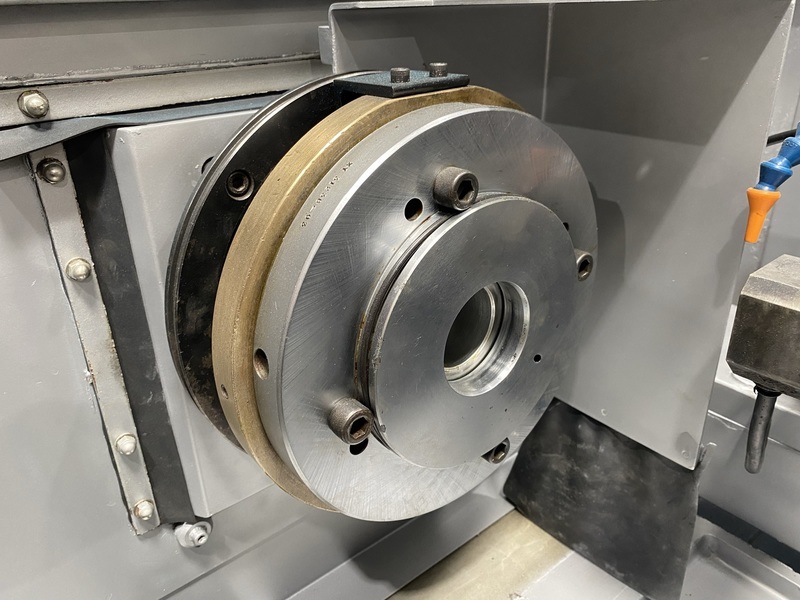

Work Spindle:
- Spindle Nose Outside Diameter (G7)............5.51"
- Spindle Taper Hole............Morse No. 6
- Through Hole Diameter............1.97"
- Speeds............100 - 850 rpm
- Spindle Swing Angle............-5 to 15 degrees
- Motor............AC 2.01 HP (4P)
Power Requirements............480V/3Ph/60Hz
Machine Dimensions - Catalog............92" (L-R) x 79"(F-B) x 67" (H)
Machine Weight (Net) - Catalog............5071 lbs

EQUIPPED WITH:

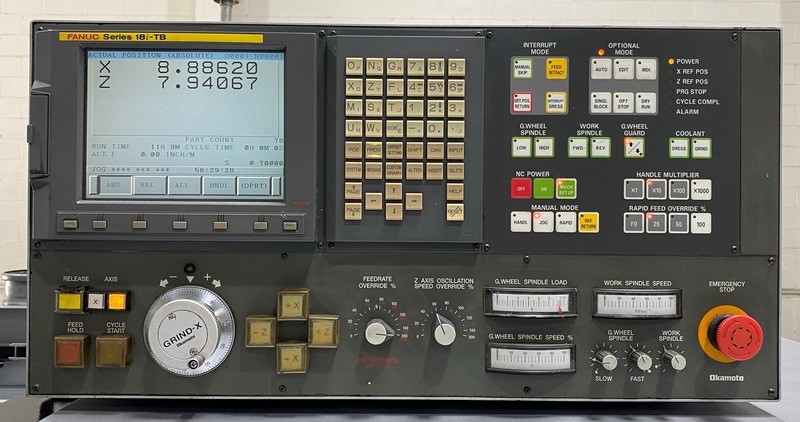

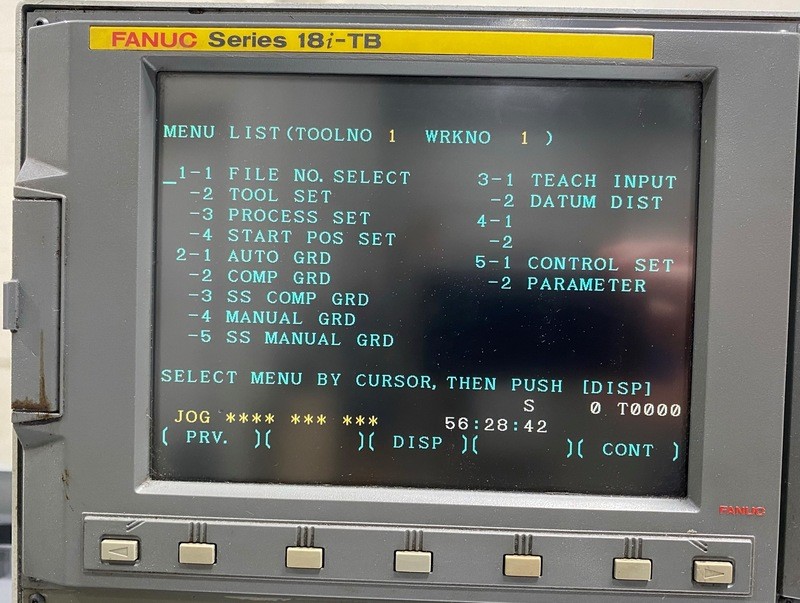

- Fanuc 18i-TB
- R232 C Communication Port

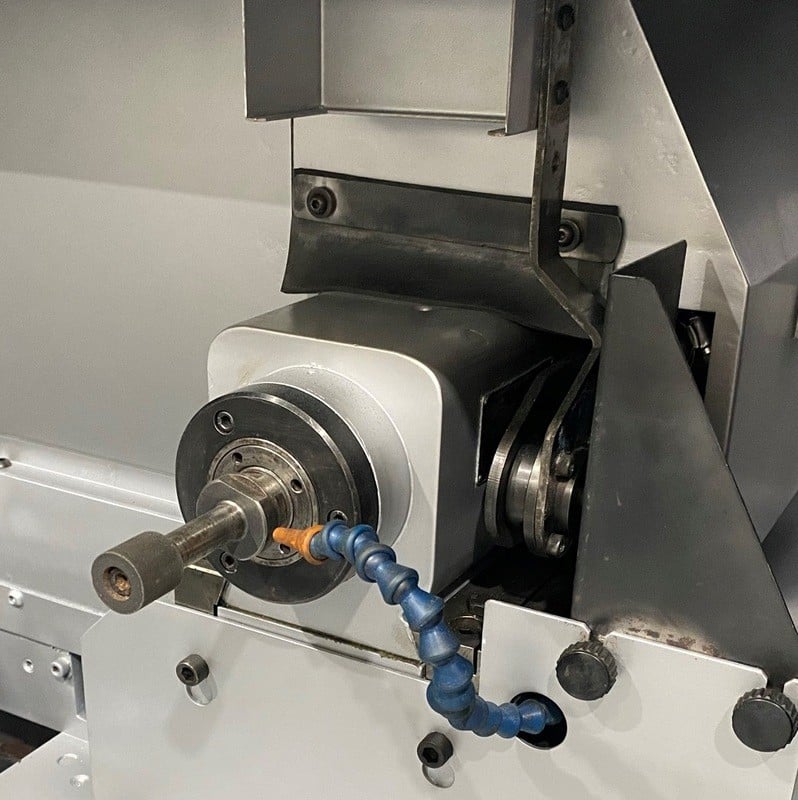

- Okamoto OH-20M 20,000 rpm spindle

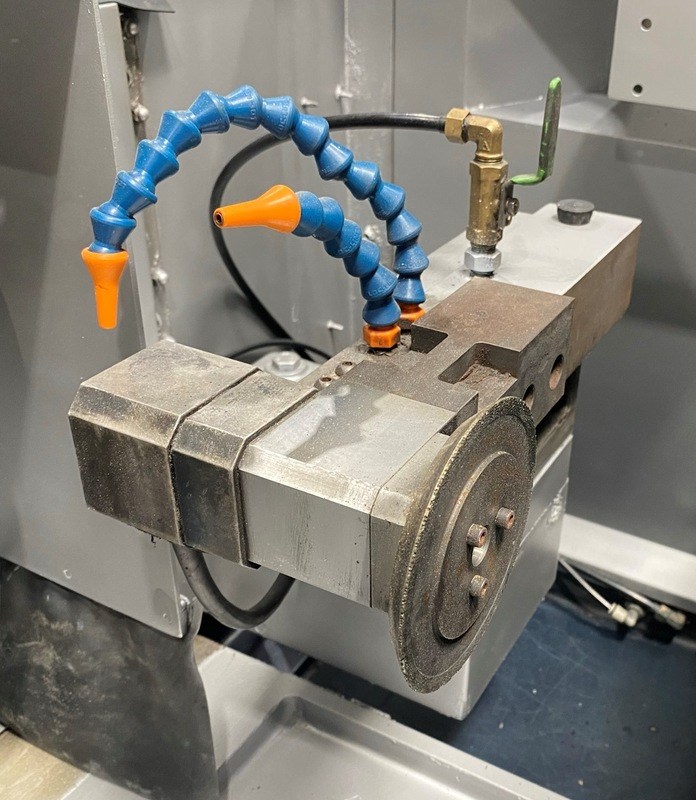

- Rotary Dresser

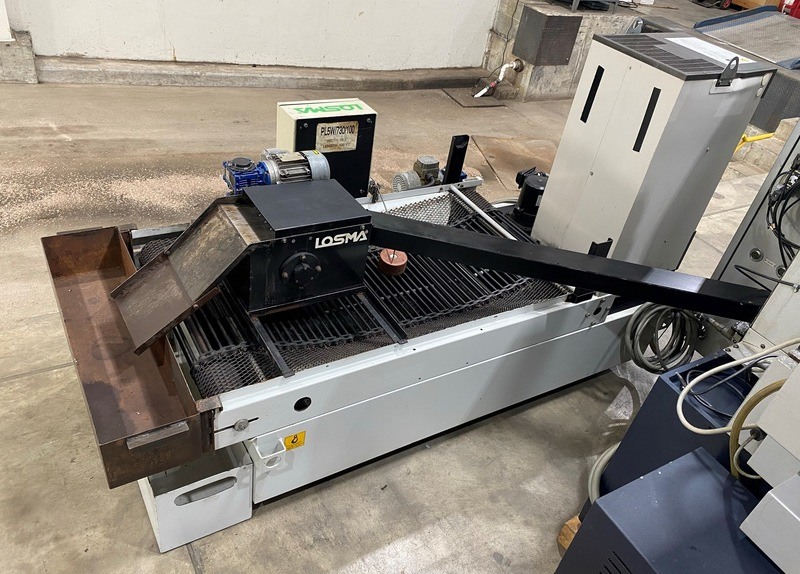

- Losma DTE 100 Coolant Filtration System with Paper Bed and Magnetic Separator
- Daikin Oil Cooling Unit - AKZJ358
- Foot Pedal actuation for Spindle Draw Bar
- Transformer
- Full Enclosure

*Okamoto IGM-15NC CNC ID Grinding Machine Preliminary Specifications Subject to Verification
