Serial No. 69292
Year Built – 2016
SPECIFICATIONS:
Table:
– Working Capacity…………850 x 450 mm
– Distance from Table Top to Wheel Underside…………22.5 – 522.5 mm
– Load Capacity…………1540 Lbs
– Chuck Dimensions (L x W x H)…………800 x 400 x 85 mm
– T-Slots (Width x No.)…………17mm x 3
Longitudinal Feed:
– Travel – Maximum…………950 mm
– Feed Rate (Average)…………0.3 – 25 m/min
– Hand Feed Per Revolution…………47 mm
Cross Movement:
– Manual Feed…………5 mm Hand Feed per Revolution (0.02 mm Graduations on Handwheel)
– Automatic Feed – Intermittent…………0.5 – 20 mm
– Automatic Feed – Continuous…………0.2 – 1 m/min
Vertical Movement:
– Automatic Downfeed (Traverse & Plunge Cut)…………0.0001 – 0.03 mm
– Manual Downfeed – Micro Feed…………0.0001/0.001/0.01 mm
– Manual Downfeed – Hand Feed Per Revolution…………0.01/0.1/1.0 mm
– Vertical Rapid Feed…………600mm/min
– No of Spark Out…………0 – 5

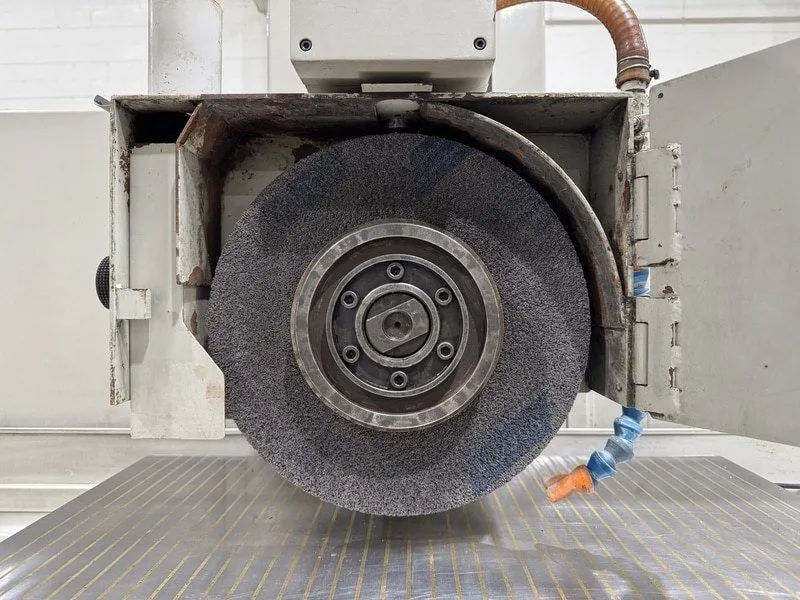

Grinding Wheel:
– Size (Diameter x Width x Bore)…………Ø355/305 x 38 x 127 mm
– Speed (50 Hz)…………1500, 1800
Motor:
– Grinding Wheel Spindle…………5 HP
– Hydraulic Oil Pump…………2 HP
– Vertical Rapid Feed…………0.5HP, AC Servo
Dimensions – Approximate…………131″L x 88″W x 84″H
Weight – Approximate…………8600 Lbs
EQUIPPED WITH:

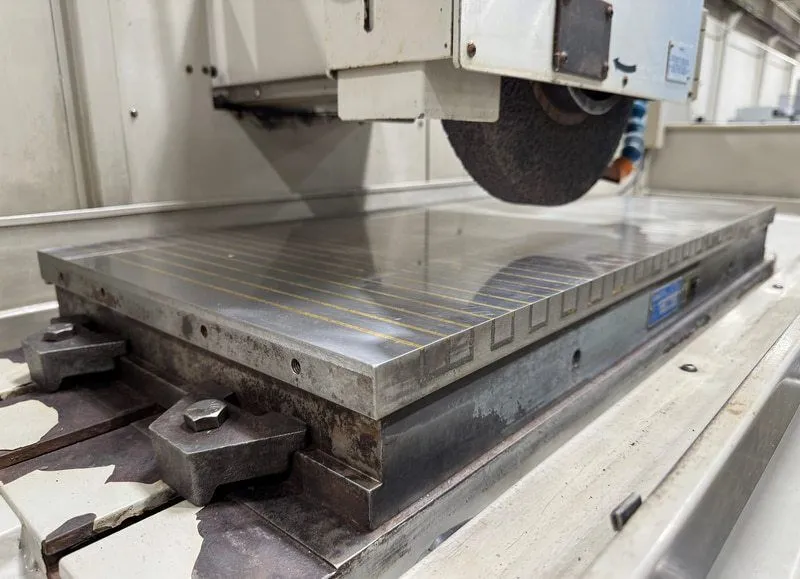

800 x 400 mm Electro-Magnetic Chuck w/Neutrifier

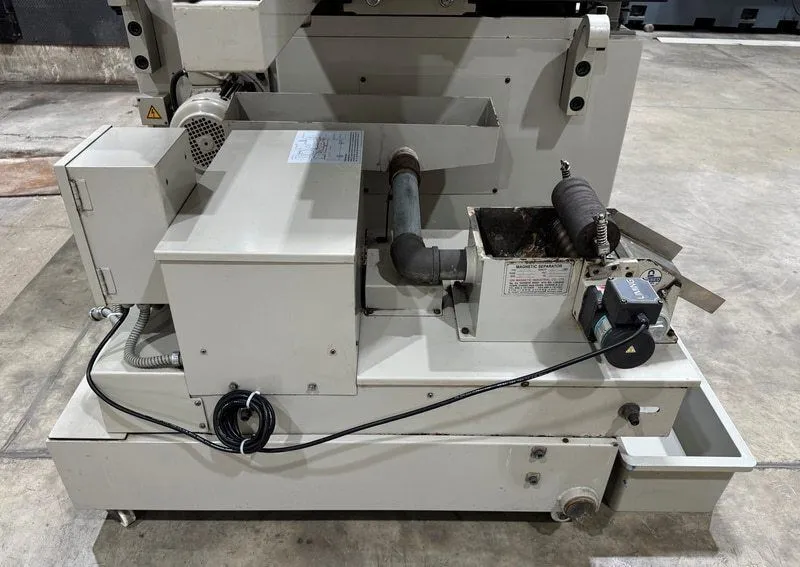

Coolant Filtration System

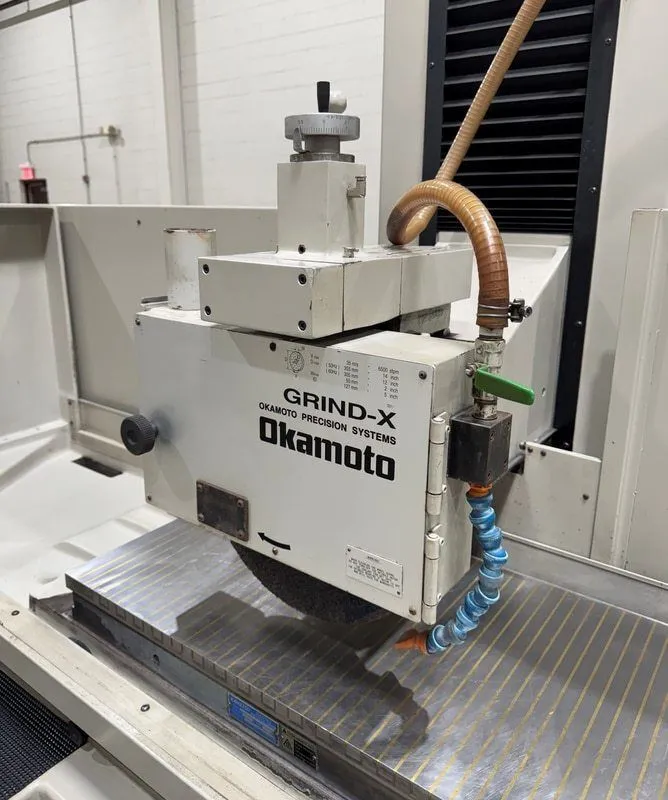

Over the Wheel Dresser

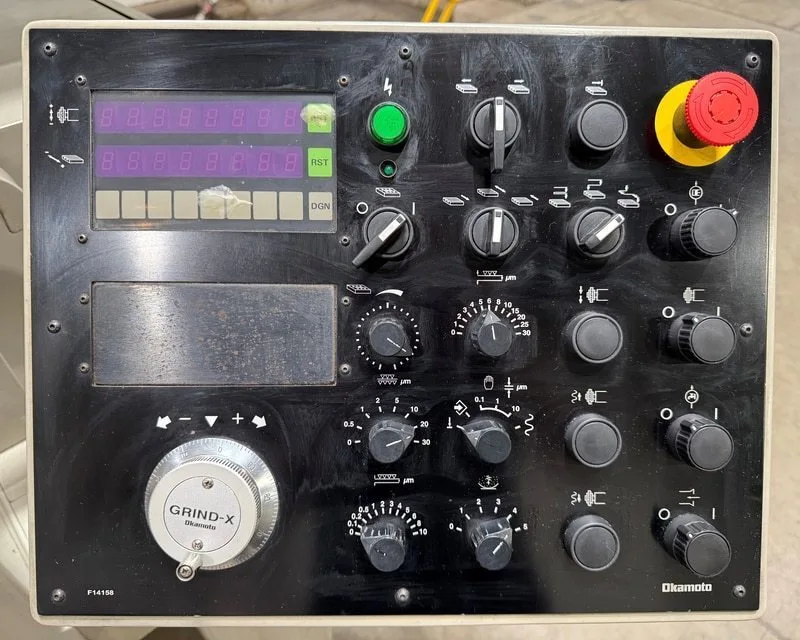

Vertical Position Display
Rough Downfeed Selector Switch (10) Selectable Increments
Finish Grind Selector (Fine)
Fine Downfeed Selector Switch
Grind Cycle Switch
Fully Automatic: Surface, Bias, Plunge Grinding, Rough & Finish, Spark-Out, Table Park L-R
*Preliminary specifications, pending confirmation

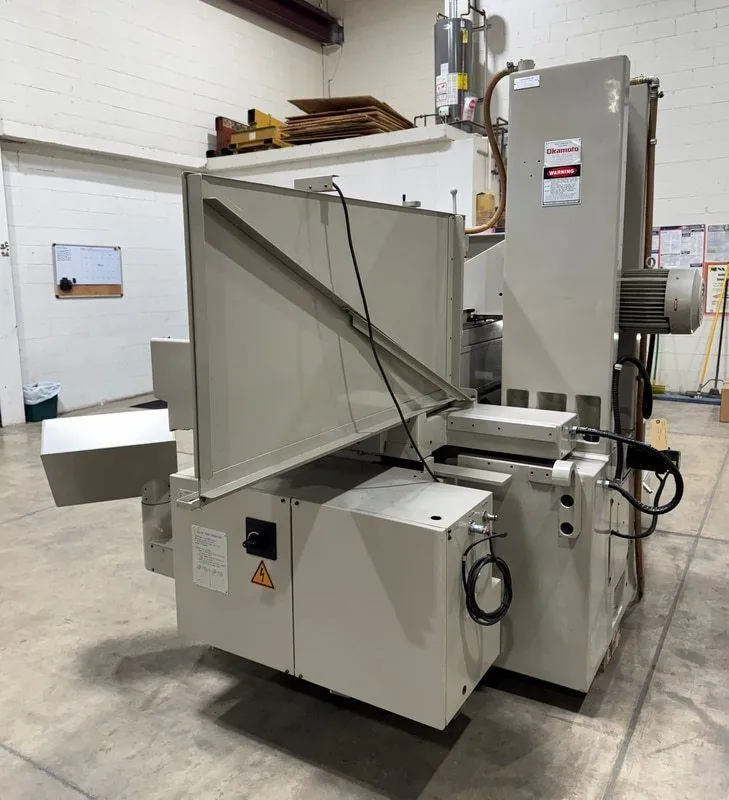

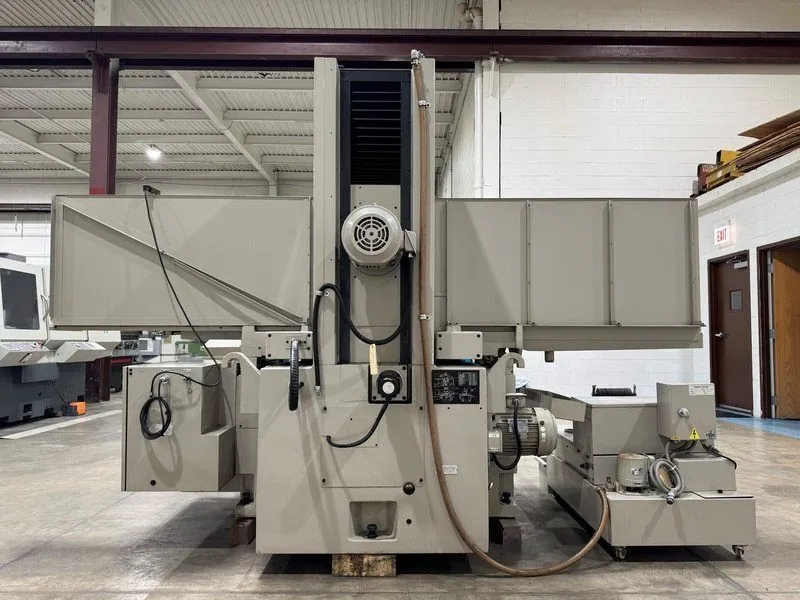

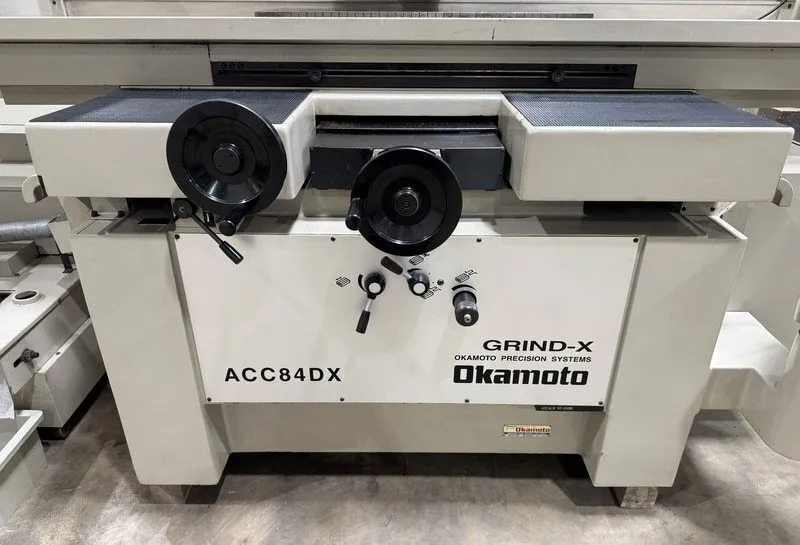

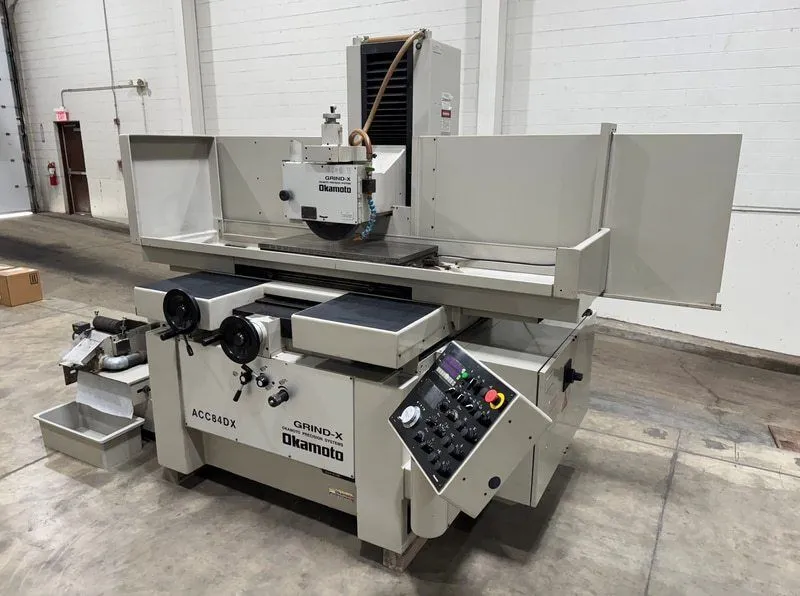

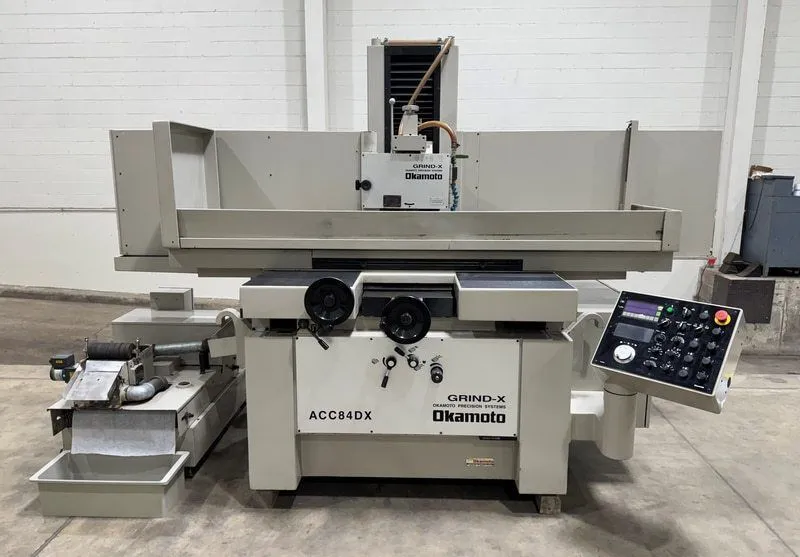

850 x 400 mm, Okamoto ACC84DX, 355 mm Whl, 5HP, Auto-Feeds, Over Whl Dress
