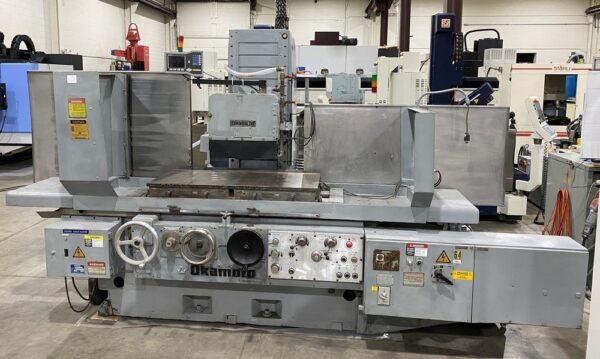

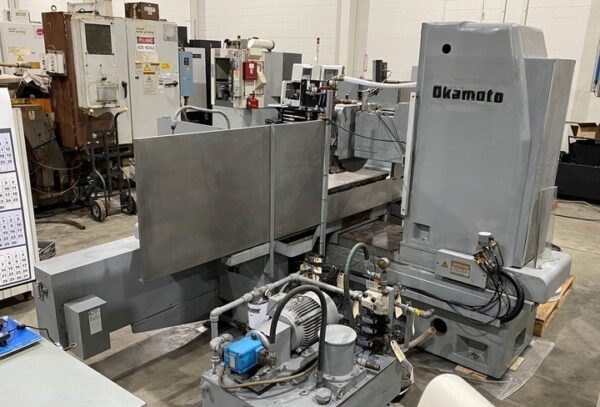

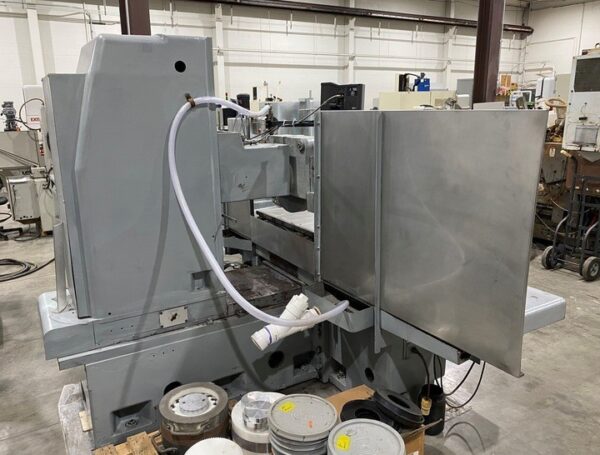

20″ x 48″ Okamoto PSG 125B | 20″ x 2″ Whl, 10 HP, Auto-Feeds, Electro-mag Ck – #50746

New – 1988
Serial No. 2025

SPECIFICATIONS:
Grinding Length – Maximum…………47.24″
Grinding Width – Maximum…………20″
Distance Under 20″ Wheel to Table Top…………23.4″
Longitudinal Table Travel…………51.22″
Column Cross Travel…………20.86″
Table T-Slot (No. x Width)…………3 x 0.669″
Longitudinal Feeds…………1-100 FPM
Hand Feed per Revolution- Longitudinal…………0.984″
Cross Feeds:
– Intermittent…………0.20″ – 1.37″
– Continuous FPM…………1-16.4 FPM
– Hand Feed per Revolution…………0.2″
– Graduation of Handwheel…………0.001″
Vertical Auto Incremental Down Feed………..0.0002″ – .002″
Auto Feed Per Column Reversal…………0.0002″ – .002″
Graduation of Handwheel – Vertical…………0.0002″
Hand Feed per Revolution – Vertical…………0.04″
Vertical Rapid Feed…………12″

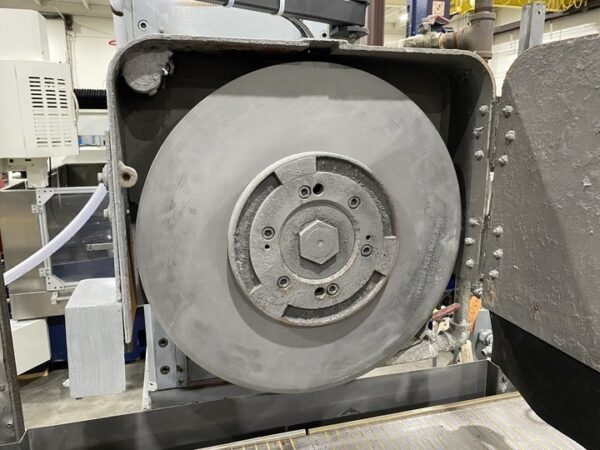

Grinding Wheel:
– Diameter…………20″
– Width…………2″
– Bore…………5″
Spindle Speed…………1100 RPM
Motor:
– Spindle…………10 HP
– Hydraulic Pump…………5 HP
– Vertical Rapid Feed…………1/2 HP
Dimensions – Actual…………159″(L-R) x 100″(F-B) x 89″(H)
Weight – Approximate…………13,200 Lbs.
Electrics…………220/440V, 3 Ph, 60 Hz

EQUIPPED WITH:
20″ x 47-1/2″ Electro Magnetic Chuck
Electro Magnetic Chuck Control
Acu-Rite DRO

*Preliminary specifications, subject to verification.
