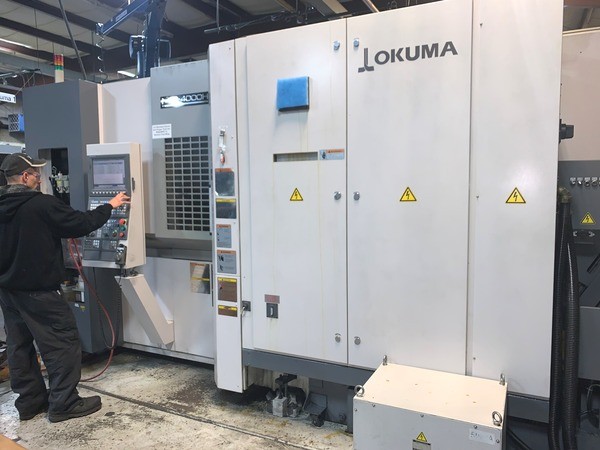

Okuma MB-4000H Horizontal Machining Center | 22"X, 22"Y, 24"Z - #48890

Liberty Machine # 48890 Category Make

New - 2012

Specifications:
X Travel............22.05"
Y Travel............22.05"
Z Travel............24.61"
Spindle Center to Pallet Top mm (IN)............50 - 610 (1.97 - 24.02)
Spindle Nose to Pallet Center mm (IN)............85 - 710 (3.35 - 27.95)
Pallet Size mm (IN)............400 x 400 (15.75 x 15.75)
Load KG (LB) - Maximum............400 (880)
Indexing Angle mm (IN)............0.001
Workplace Diameter KG (LB) - Maximum............600 x 900 (23.62 x 35.43)
Spindle Speed............50 - 15,000
Tapered Bore............No. 40 CAT
Bearing Diameter mm (IN)............70 (2.76)
Rapid Traverse (X,Y,Z) M/Min............60 (2,362)
Cutting Federate (X,Y,Z) mm/Min............60,000 (2,362)
Spindle Drive (10 Min/Cont.) kW (HP)............26/18.5 (30/22)
Feed Axes kW (HP)............X:4.6 (6.13) Y-Z" 3.5 (4.67)
Table Indexing kW (HP)............3.0 (4.0)

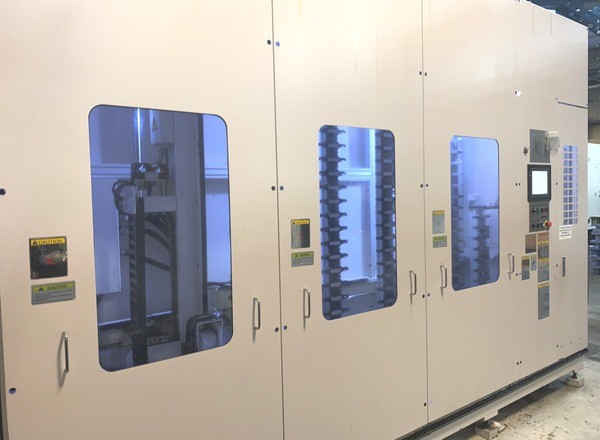

Magazine Capacity Tools............110
Tool Diameter (w/ Adjacent Tool) mm (IN) - Maximum............70 (2.76)
Tool Diameter (w/o Adjacent Tool) mm (IN) - Maximum............150 (5.91)
Maximum Tool Size 2 Pots Away
Cannot Exceed 135mm (5.32IN)
Tool Length mm (IN) - Maximum............300 (400) (11.81 (15.75))
Tool Weight KG (Lbs.) - Maximum............10 (22)
Tool Selection............Memory Random (Fixed Address for 110 or More Tools)

EQUIPPED WITH:

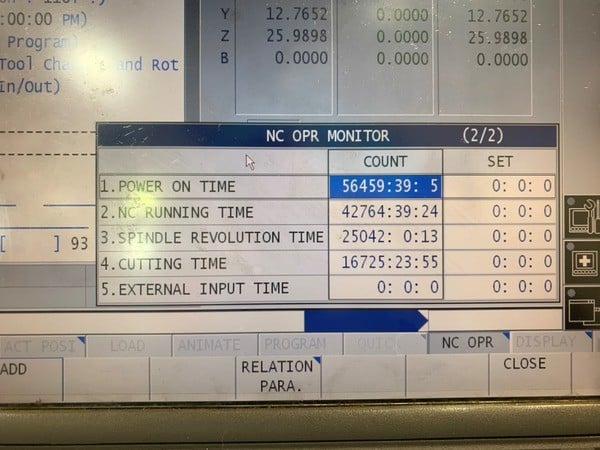

CNC: OSP 200MA Control
High Speed ATC (T:T = 1 Second, C:C = 2.3 Seconds)
High Speed APC 7 Seconds

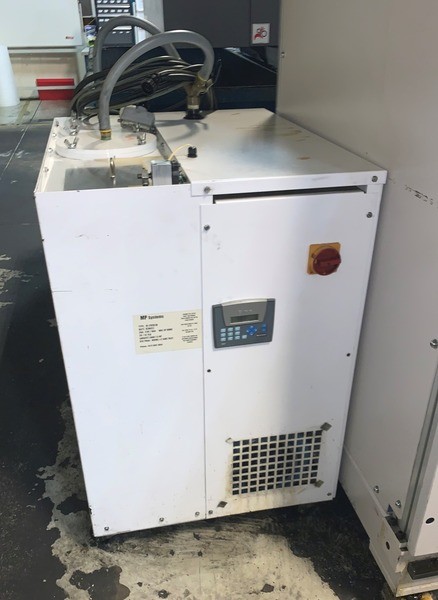

Shower Coolant and MP Systems Hi-Pressure Coolant
Tool Breakage Detection
Chip Conveyor System

*Preliminary Specifications Subject to Verification
