Omax JetMachining Center 2652 | 69" x 30" Table, 52"X, 26"Y, 8"Z, 60K PSI, 2012 - #50691

Liberty Machine # 50691 Category Make

Omax JetMachining Center 2652

New - 2012
Serial No. A511990

SPECIFICATIONS:
Table size............69" x 30"
Cutting envelope of............4' - 4" x 2' - 2"
Material:
- Load - maximum............400 Lbs./Sq. Ft.
- Support slats............4" x 1/8"
Travels:
- X-Axis............52"
- Y-Axis............26"
- Z-Axis............8"
Speed............180 IPM
Accuracy:
- Linear positional............+/-0.001"
- Repeatability............+/-0.001"
- Ballbar circularity............+/-0.0025"
EnduroMAX Pump:
- Motor............50 HP
- Jet Power - maximum............42.5 HP
- Output pressure............60,000 PSI
- Orifice............0.016"
- Flow rate...........1.2 GPM
Electrics............380V - 480V/3PH/50Hz - 60 Hz
Footprint - w/pump & controller............11' 7" (L-R) x 5' 7" (F-B)
Machine Weight:
- Tank empty............3,320 Lbs.
- Tank full............9,150 Lbs.

EQUIPPED WITH:
Windows based CNC Control - intelli-max software (premium software)
EnduroMAX pump Model P5060V

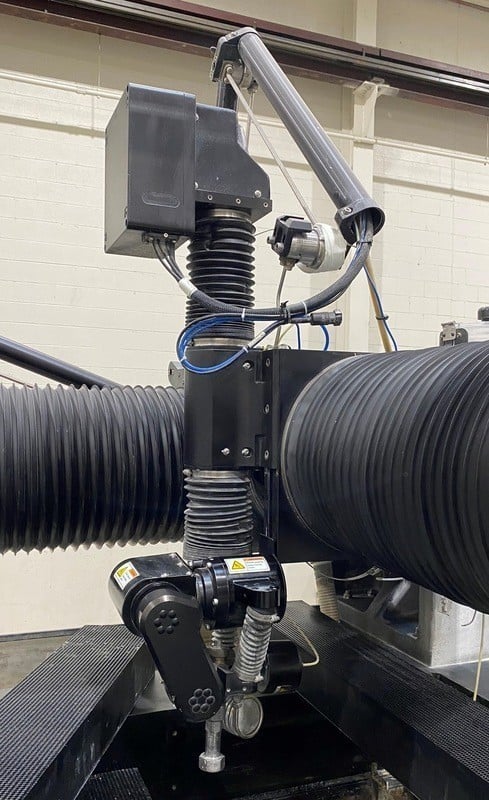

Tilt-A-Jet cutting head for taper elimination (option)
Collision sensing terrain follower (option)
2000 Lb. abrasive hopper
Variable speeds solids removal system (cleans bottoms of tank)
Excess flow valve for when running small jewel nozzles
Coolant Chillers Air 3000 chiller
Laminar flow filter for drain water (option)
Settling tank
Galvanized support slats
Books, Manuals, Drawings and Misc. Consumable spares

*Catalog specifications, subject to verification.
