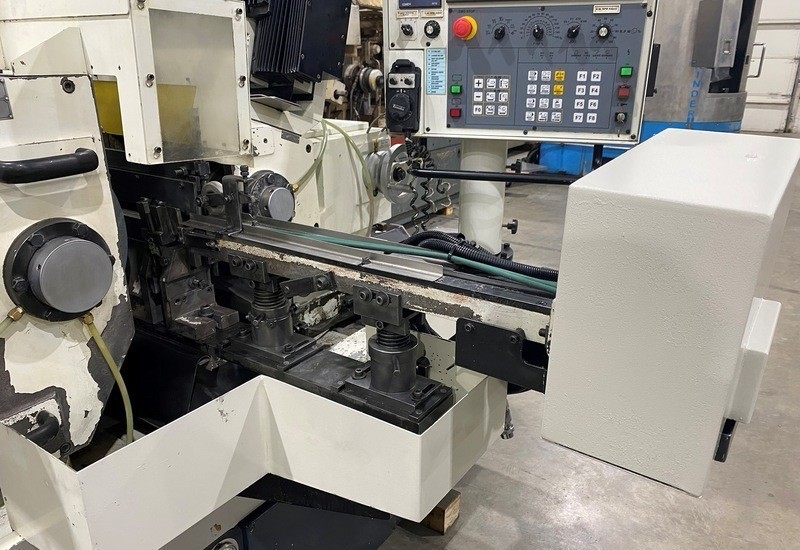

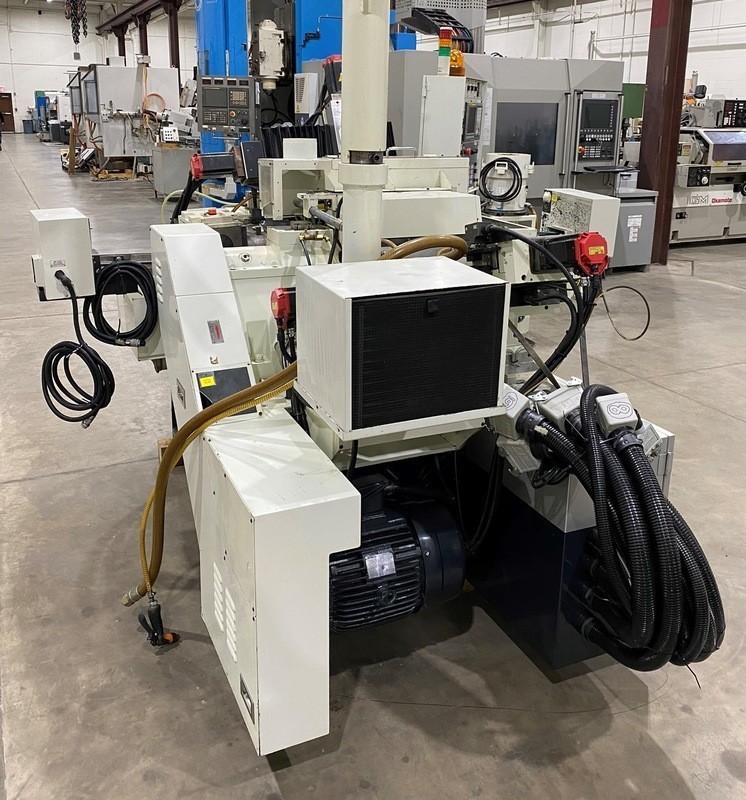

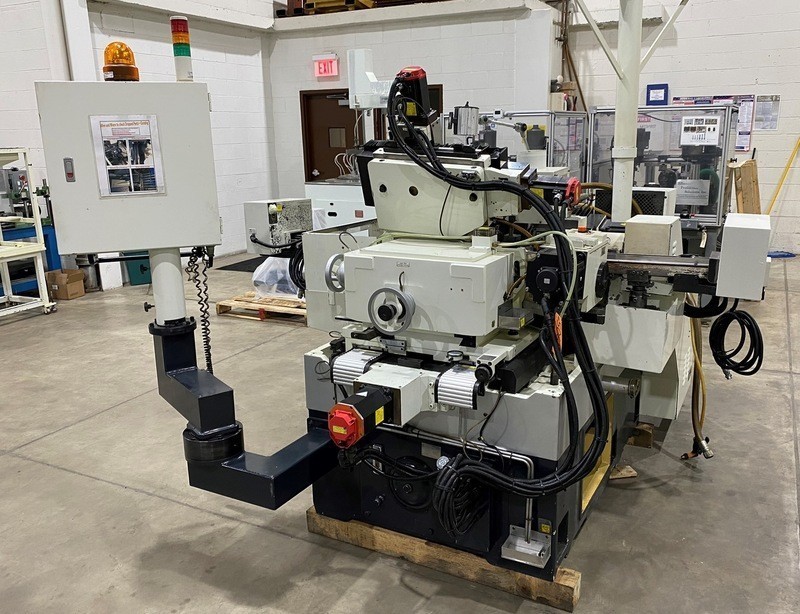

CNC Centerless Grinder Palmary Firmus FCL-18-5
Serial No. CN450116
New – 2013
SPECIFICATIONS:
Standard Grinding Range – Diameter…………0.04″ ~ 2.36″

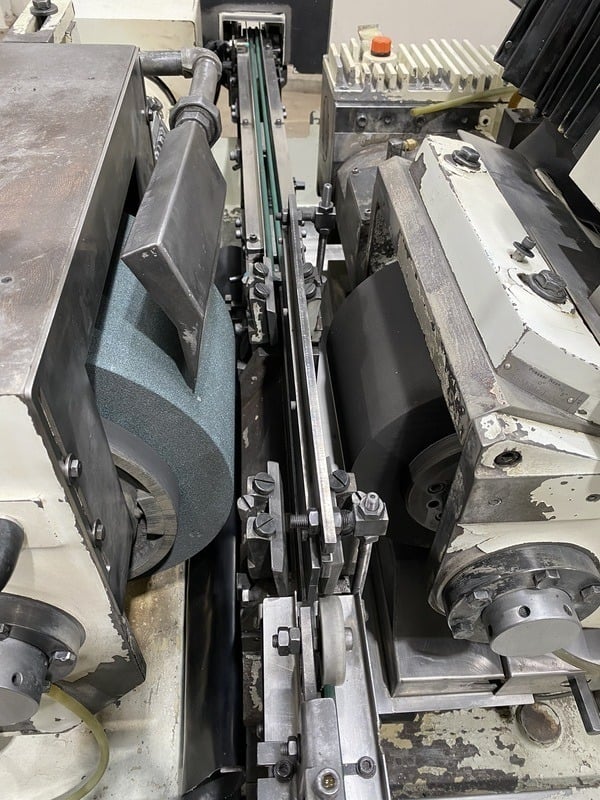

Grinding Wheel:
– Size (OD x W x ID)…………17.9″ x 8.1″ x 4.4″
– Motor…………15 HP x 4 P
Regulating Wheel:
– Size (OD x W x ID)…………10.0″ x 8.1″ x 4.4″
– Speed – Variable…………10 – 300 RPM
– Motor…………3.35 HP Servo Motor
– Tilt Angle………… +5 Deg. to – 3 Deg.
– Swivel Angle…………+/- 5 Deg.
Motors:
– Hydraulic Pump…………1 HP x 4P
– Coolant Pump…………1/4 HP x 2P
Dimensions – Catalog:
– Machine…………100″ x 48″ x 82″(H)

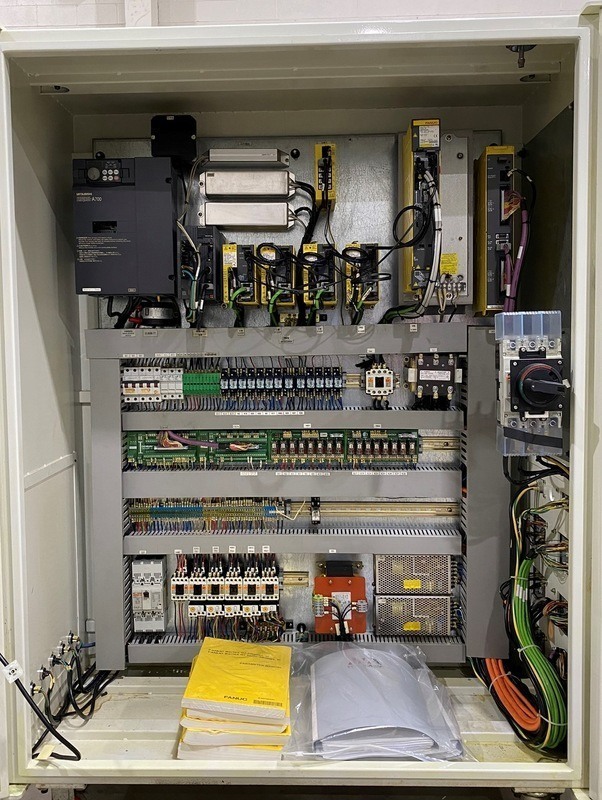

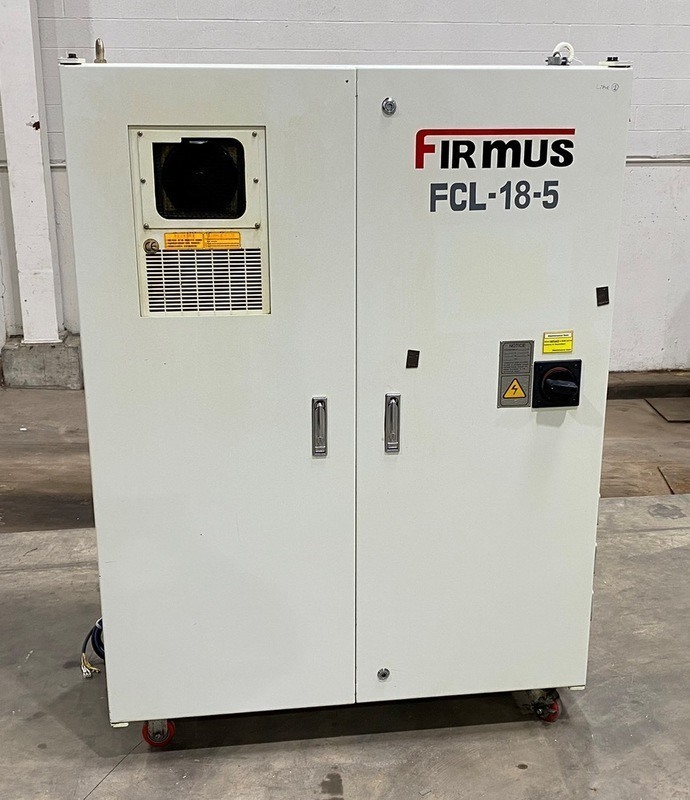

– Electrical Cabinet…………44″ x 22″ x 56″(H)
– Coolant System…………40″ x 28″
Weight – Catalog…………6394 Lbs.
CNC Centerless Grinder Palmary Firmus FCL-18-5 EQUIPPED WITH:

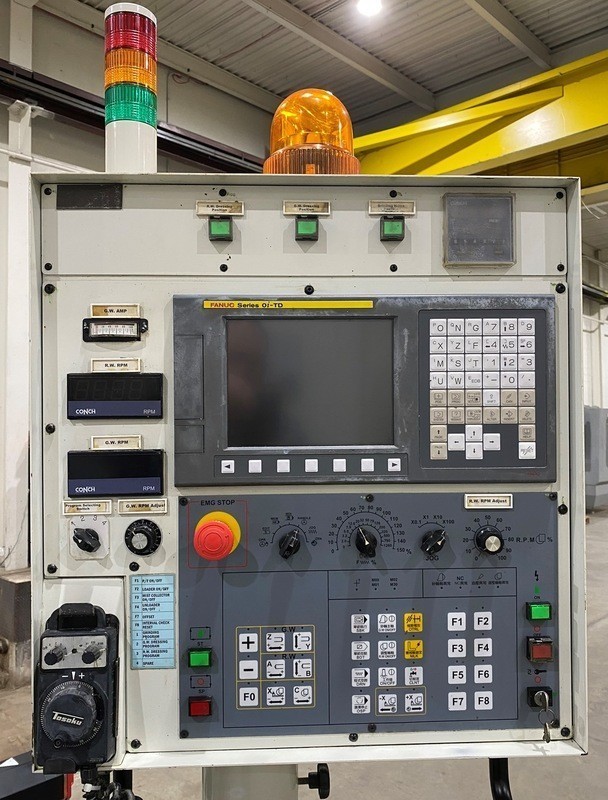

Fanuc Series Oi-TD Control

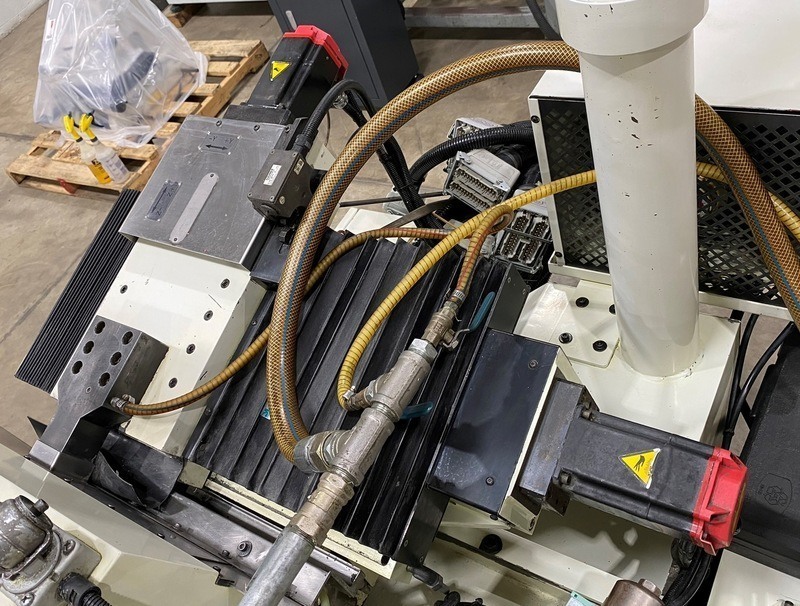

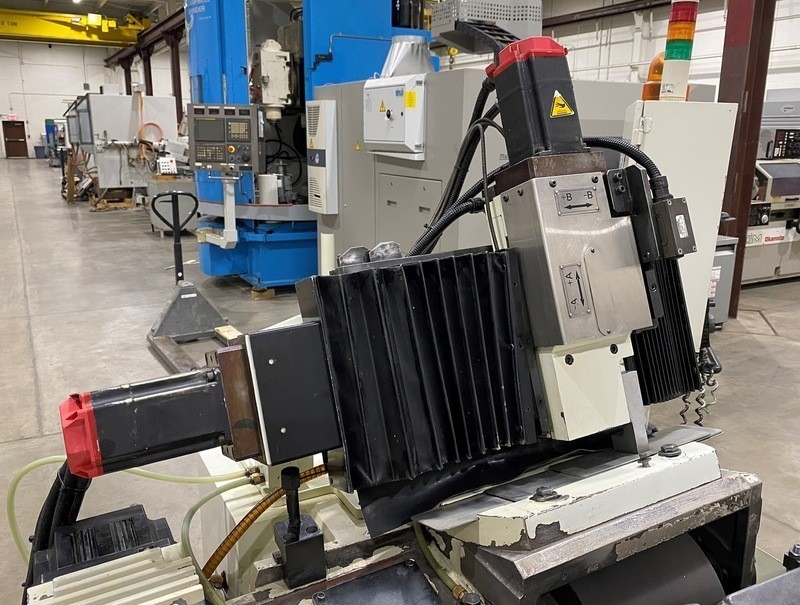

5-Axis CNC:
– Z-Axis – Grinding wheel auto dress (vertical)
– Y-Axis – Grinding wheel auto dress (horizontal)
– A-Axis – Regulating wheel auto dress (vertical)
– B-Axis – Regulating wheel auto dress (horizontal)
– X-Axis – Regulating wheel lower slide auto infeed
Hopper load
Exit conveyor

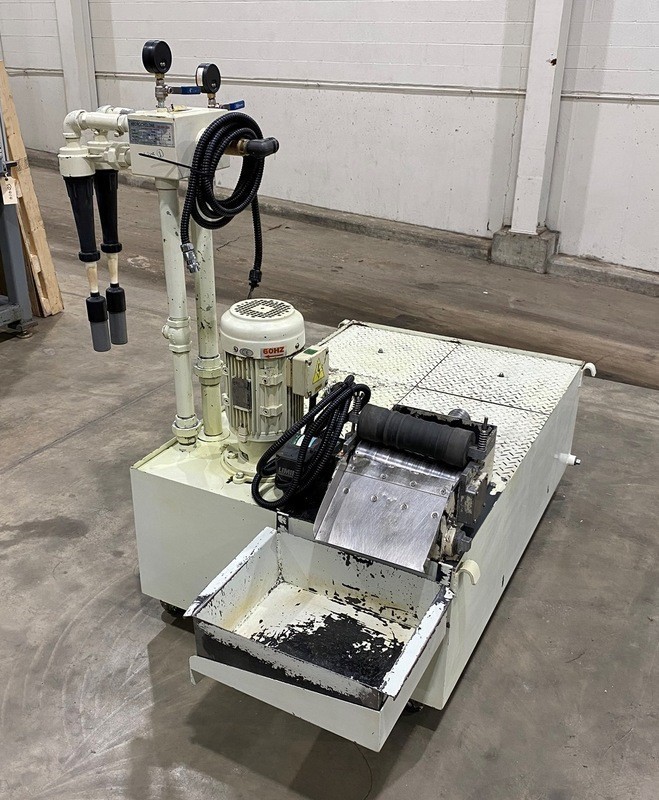

Magnetic drum coolant filtration system

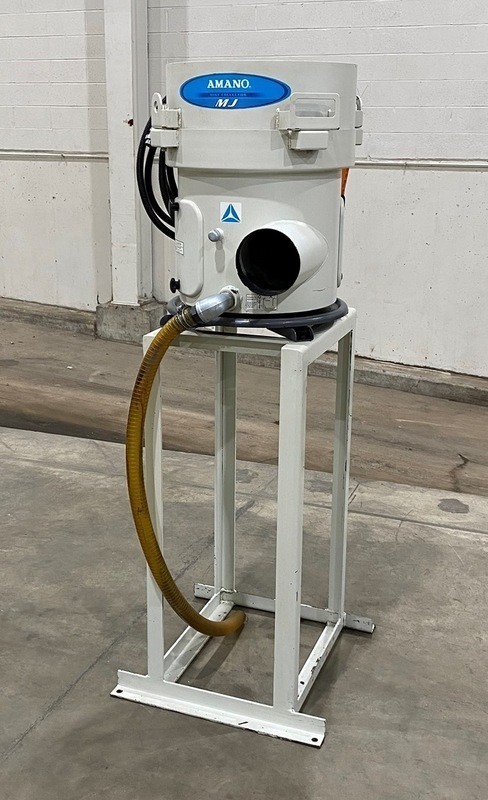

Mist collector
*Preliminary specifications, subject to verification.
The Palmary centerless grinding machine is an advanced machine tools used for precision grinding of cylindrical workpieces. These machines operate on the principle of centerless grinding, where the workpiece is supported between a regulating wheel and a grinding wheel, with no center point or spindle required.
The Palmary CNC centerless grinder offers numerous advantages over traditional center-type grinders. With their CNC control systems, they provide precise control over grinding parameters such as feed rate, depth of cut, and wheel speed, resulting in consistent and accurate results. They can handle high-volume production with minimal operator intervention, reducing labor costs and increasing throughput.
The Palmary CNC centerless grinder is capable of achieving tight tolerances and high surface finish quality on cylindrical parts. They can grind various materials, including steel, stainless steel, aluminum, and ceramics. CNC centerless grinders find applications in industries such as automotive, aerospace, medical, and general manufacturing.
In summary, CNC centerless grinders offer efficient and precise grinding solutions for cylindrical workpieces. They provide exceptional control, accuracy, and efficiency, contributing to improved productivity and quality in precision grinding operations.
