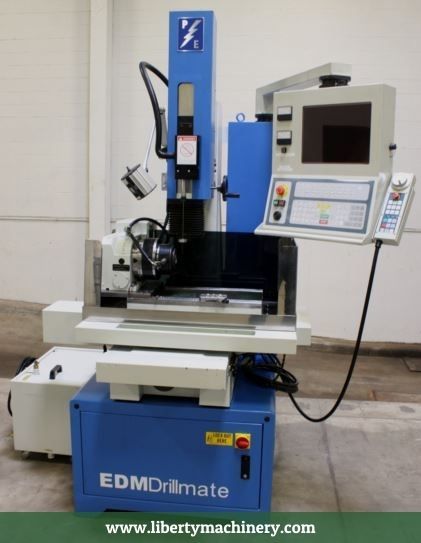

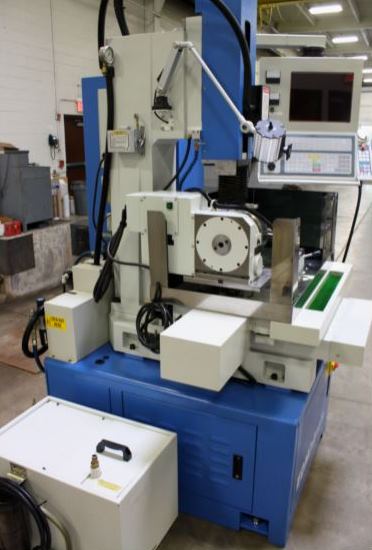

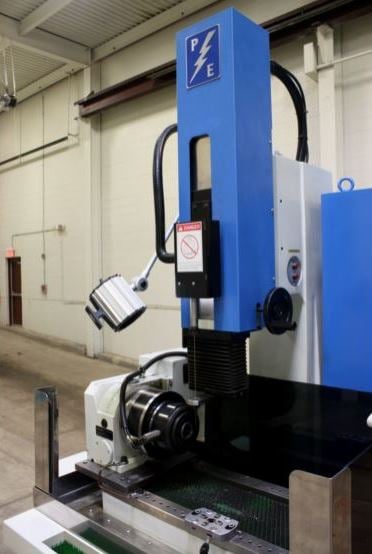

Perseo-Erie EDM Drillmate S26 Hole Popper EDM (Electrical Discharge Machine) w/ 4th Axis - #44043

New - 2011
Serial No. 10012

SPECIFICATIONS:
Work Table......................................................15.8" x 23.6"
Work Tank with Plastic Guards...................................15.7" x 25.6"
Z-Axis Chuck Travel.....................................................11.4"
Z2 Travel................................................................7.9"
X-Axis Travel..........................................................15.74"
Y-Axis Travel...........................................................11.8"
Track Type......................................................Linear Guides
Work Piece Height - Maximum...............................................14"
Lowest Guide to Table with Back Slide Down...............................1.9"
Electro-Guide Travel.....................................................5.9"
Electrics.......................................................220V/3Ph/60Hz
Machine Height with Z-Axis Raised.........................................89"
Machine Dimensions - Actual......................49"(L-R) x 59"(F-B) x 91"(H)
Weight - Approximate...............................................2,500 Lbs.

Dielectric System:
Fluid (Flush)...................................................Water/EDM Oil
Pump..................................................Pneumatic Pressure Pump
Reservoir............................................................5 Gallon
Filtration..........................................................10 Micron
Auxiliary Flush..........................................................110V

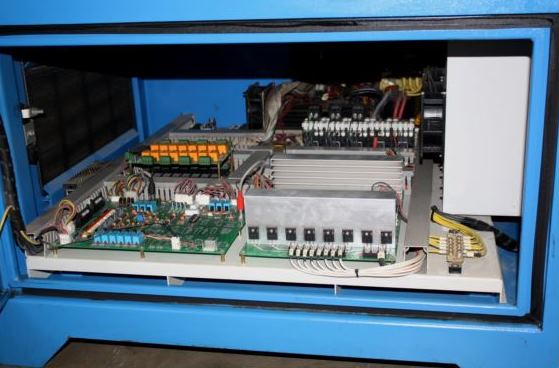

Power Supply Unit:
Peak Current Selections...............................................8 Steps
Voltage Selections....................................................3 Steps
Pulse On Time Settings.............................................1-30 Steps
Pulse Off Time Settings............................................1-15 Steps
Drill/Sink Function................................................Switchable
Servo..............................................................0-10 Steps
Electrode Sensitivity..............................................0-10 Steps
Capacitors............................................................5 Steps
Maximum Current..................................................75 Amps Peak
Gap Adjustment........................................................9 Steps

Power Supply Function:
Display....................................................15" CRT/Full Color
Control Method.................................................CNC Close Loop
Control Axes..........................................................X, Y, Z
Minimum Setting........................................................0.0002
Machining Parameter Sets...............................................7 Sets
Screen Pages..............................................10 Sections Per Set

EQUIPPED WITH:
- Automatic Point-to Point X/Y position edits with graphically illustrated
coordinate functions
- Logic control circuit design allowing hole sizes from .004 to .236"
- Environmental friendly design allows use of tap water without rust inhibitor
- Flush system operates with water or oil based fluid
- Logic control circuits accept both brass and copper tubing
- Ability to lock the spindle and complete common die sinking jobs (i.e.
hexagon shape electrode, stamping)
- Automatic edge and center find

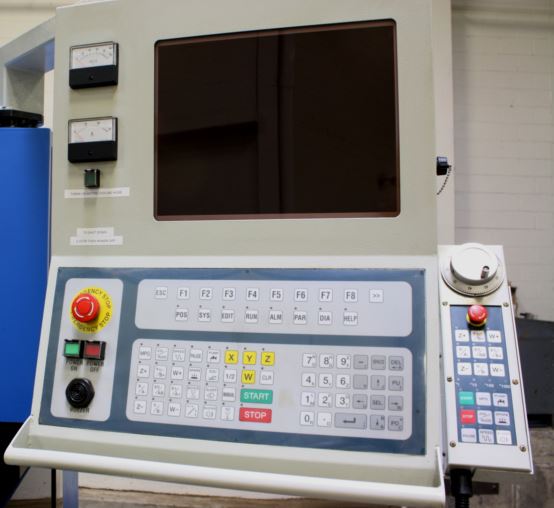

- PC Based Control with Color 15" CRT
- Auto Programmable Z Editing Function allows automatic Power/Voltage
adjustment of cutting conditions at specified depths
- Dry Run Model allows you to check work prior to actual EDMing
- 100 Register capacity for storing programs and Z-Axis settings
- Cast iron base, column table and Meehanite cast iron components provide for
higher rigidity and stability along with long service life
- Mitutoyo Glass X & Y Linear Scales
- DC- X, Y and Z Servo Motors
- Precision ball screws with linear X and Y ways

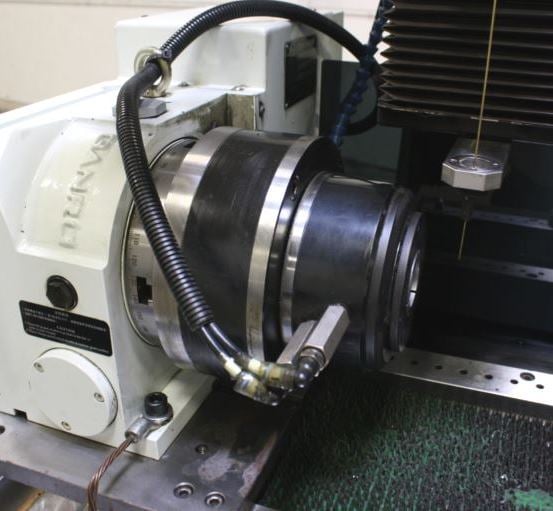

- Tsudakoma Model RZ-160, 4th Axis NC Indexer
- Jato Precision JAP207-B42 Air Collet Chuck

*Preliminary Specifications Subject to Verification
