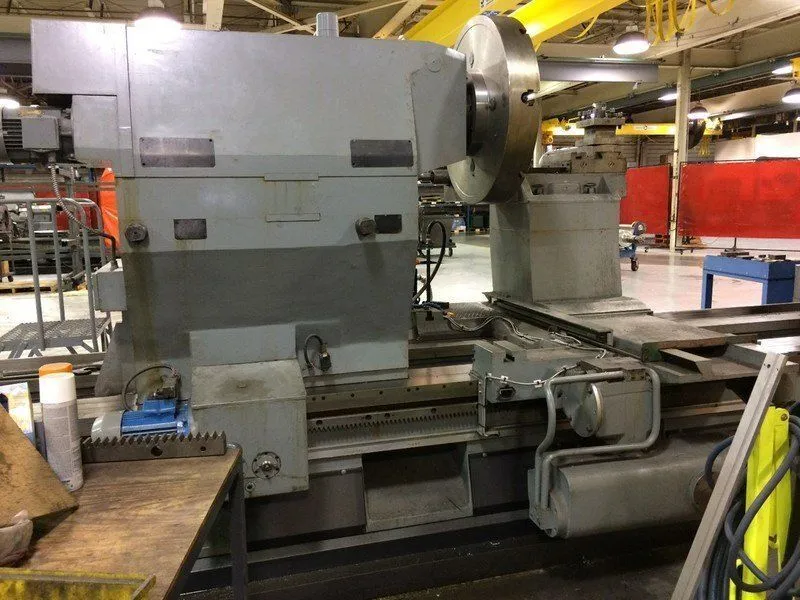

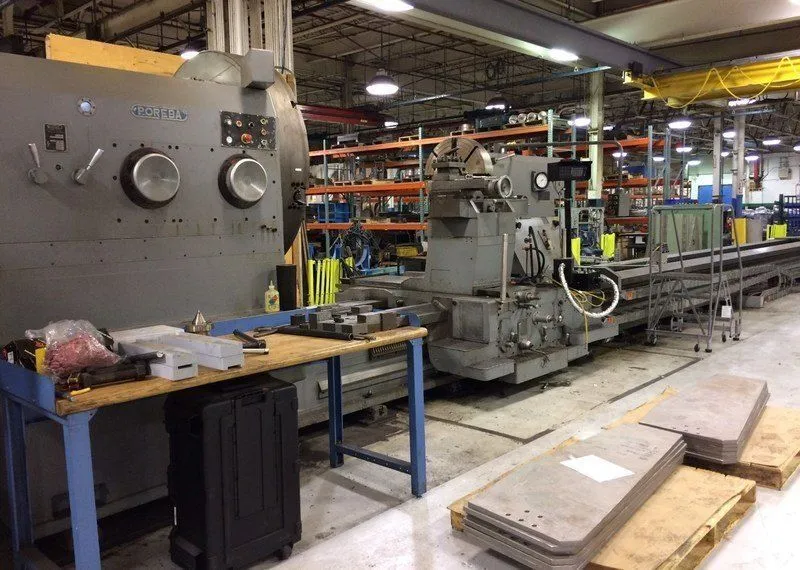

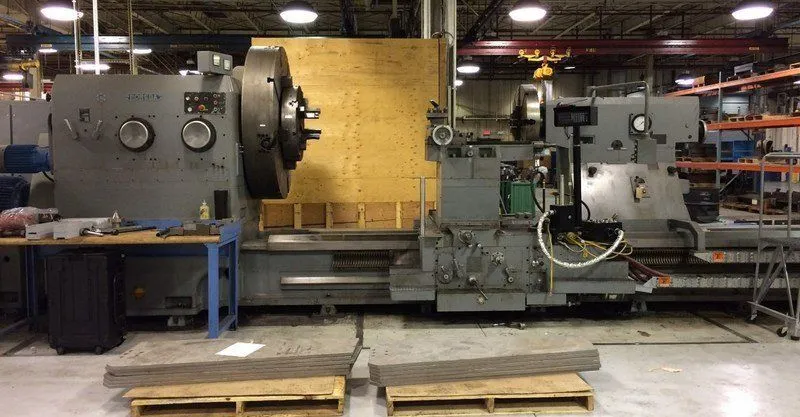

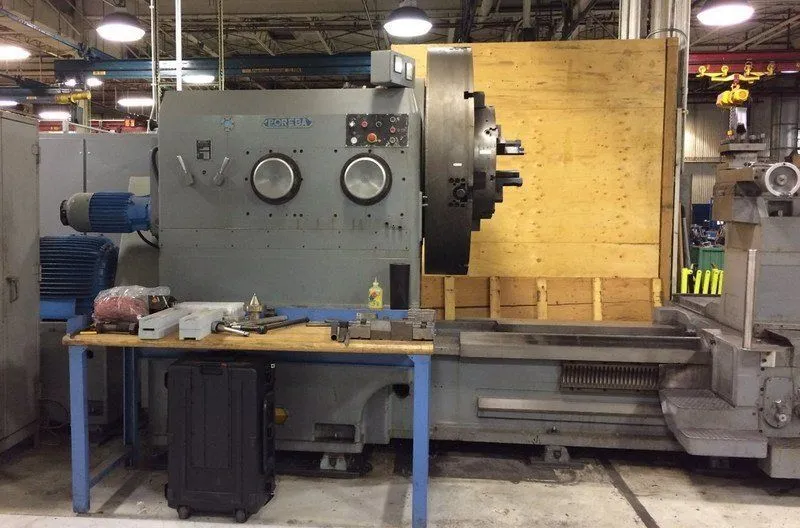

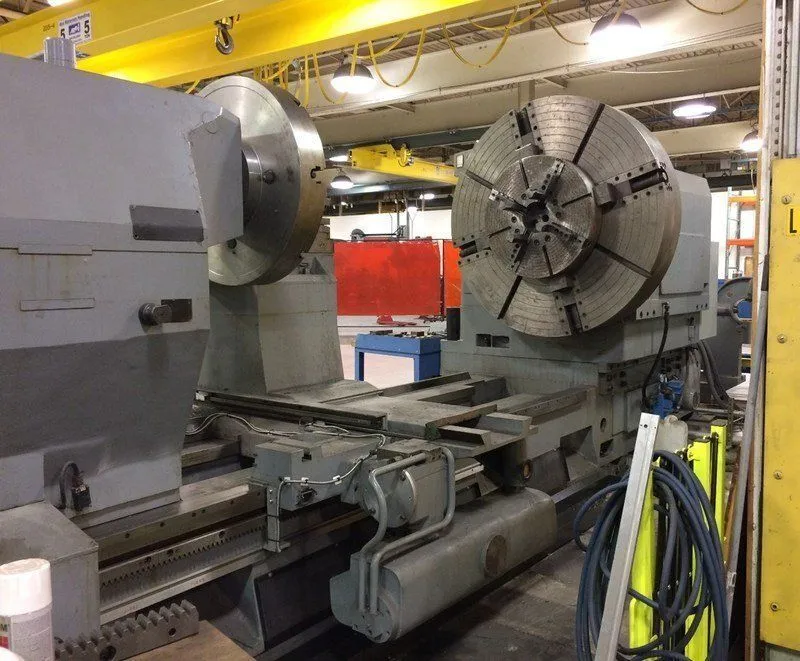

Year Built – 1993
SPECIFICATIONS:
Swing Over Bedways – Maximum…………78.74″ (2000 mm)
Swing Over Carridge – Maximum…………66.14″ (1680 mm)
Distance Between Center…………314.96″ (8000 mm)
Spindle:
– Speeds…………0.8 – 160 RPM
– Number of Spindle Speeds…………24
– Speed Ranges…………3
– Bore Diameter…………4.13″ (105 mm)
– Torque – Maximum…………46,466 lb-ft (63,000 NM)
– Motor…………100.5 HP
Width of Bed…………59.05″ (1500 mm)
Feed Rates:
– Longitudinal…………0.007 – 6.29 IPR
– Overall…………13.03″ IPM (331 mm/min)
– Rapid Traverse…………157.48 IPM (4000 mm/min)
Threading – Metric…………1 – 192 mm
Threading – Inch…………125 – 30 TPI
Front Bearing Diameter…………12.6″ (320 mm)

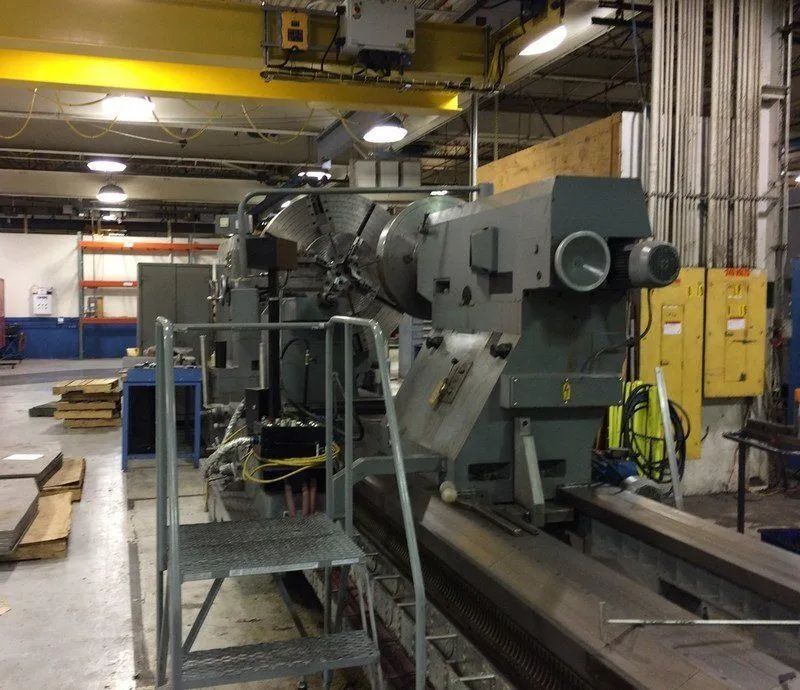

Tailstock:
– Quill Diameter…………11.02″ (280 mm)
– Quill Travel…………7.87″ (200 mm)
– Quill Rapid Traverse…………11.81 IPM (300 mm/min)
– Rapid Traverse on Bed…………59.05 IPM (1500 mm/min)
Workpiece Weight Capacity:
– Between Cetners…………66,000 Lbs
– With One Steady Rest…………77,000 Lbs
– With Two Steady Rests…………88,000 Lbs
Electrics…………380V/50Hz
Machine Weight – Approximate…………
Machine Dimemsions – Approximate…………
EQUIPPED WITH:

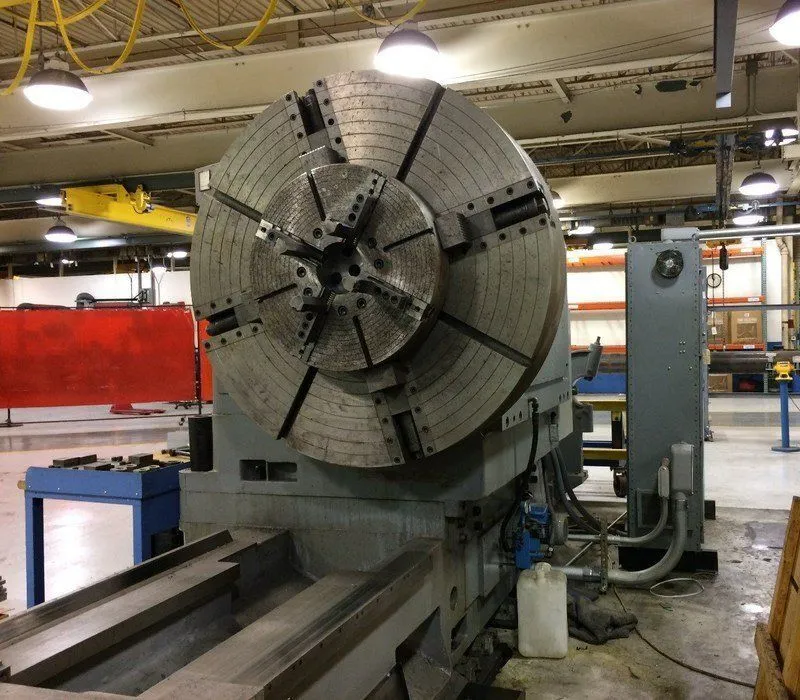

63″ (1600 mm) 4-Jaw Independent Chuck
Operator Controls on Carriage
Inch/Metric Threading
6-Way Power Rapid Traverse
(2) Roller Type Steady Rests
Power Compund
Power Tailstock and Quill
Hardened and Ground Replaceable Bedways
Hardened and Ground Gears & Spline Shafts
Heavy Duty Meehanite Casting
*Preliminary specifications pending confirmation
