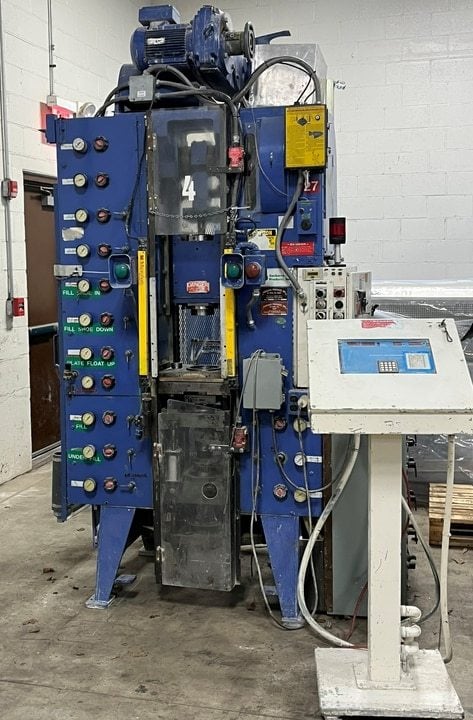

Powder Metal Press Gasbarre 15T Standard Series
New – 1985
Serial No. 85213
SPECIFICATIONS:
Capacity – maximum…………15 Tons
Speed range…………12 – 70 SPM
Drive power…………2 HP
Capacities:
– Die platen…………7.5 T
– Lower punch…………15 T
– Core rod…………7.5 T
– Upper inner punch mount…………7.5 T
– Upper outer punch mount…………15 T
Top Ram:
– Stroke…………4.5″
– Stroke adjustment range…………0 – 2.25″
Upper Inner Punch Mount:
– Stroke…………0.75″
– Adjustment range…………0 – 0.75″
– Up force…………157 Lbs.
– Down force…………190 Lbs.
Upper Outer Punch Mount:
– Stroke…………0.38″
– Adjustment range…………0 – 0.38″
– Down force…………594 Lbs.
Die size – maximum…………4″
Adjustment Range:
– Ejection stroke…………0 – 2.5″
– Die platen float…………0 – 1.3″
Die platen up force…………736 Lbs.
Fill depth/adjustment range…………0 – 2.5″
Core Rod:
– Up/Down range…………1.5″
– Up force…………226 Lbs.
– Down force…………226 Lbs.
Top Punch Hold Down:
– Stroke…………4.5″
– Down force…………393 Lbs.
– Up force…………227 Lbs.
Underfill/Overfill adjustment range…………0 – 0.625″
Dimensions – Actual:
– Machine…………65″(L-R) x 47″(F-B) x 107″(H)
– Control pedestal…………20″(L-R) x 18″(F-B) x 53″(H)
Weight – catalog…………3,790 Lbs.
Powder Metal Press Gasbarre 15T Standard Series EQUIPPED WITH:
Microprocessor-Based programmable limit switch control system
Cam-lift arm ejection system
Top punch hold down assembly [D15132]
Underfill assembly [C12512]
Air core rod (Up/Down float pneumatic core rod) [C14569]
Automatic mechanical powder filling system
*Preliminary specifications, pending confirmation.
15 Ton, Gasbarre Standard Series, 2.5″ Fill, 4.5″ Stroke, 12 – 70 SPM, 4″ Die Max.
