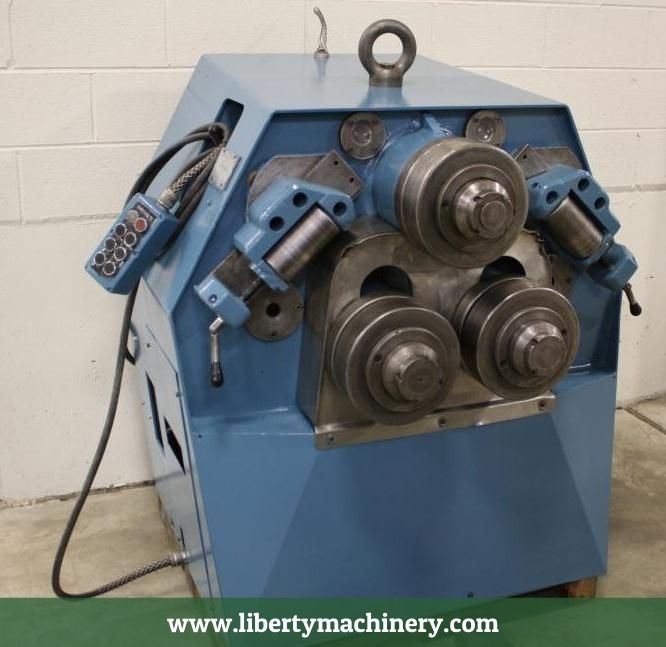

Pullmax Z31 Angle Bending Roll
Serial No. 58340-03
New – 1975
Pullmax Z31 CAPACITY:
Equal Angles – Leg Out…………3″ X 3″ X 5/16″…………28″
Equal Angles – Leg Out…………1″ X 1″ X 1/4″…………14″
Equal Angles – Leg In…………2-1/2″ X 2-1/2″ X 5/16″…………40″
Equal Angles – Leg In…………1″ X 1″ X 1/4″…………14″
Equal T-Bars – Web Out…………4″ X 3″ X 3/8″…………23″
Equal T-Bars – Web Out…………3/4″ X 3/4″ X 1/8″…………14″
Equal T-Bars – Web In…………4″ X 3″ X 3/8″…………34″
Equal T-Bars – Web In…………3/4″ X 3/4″ X 1/8″…………14″
Flats – On Edge…………2-1/2″ X 1/2″…………24″
Flats – On Edge…………1″ X 1/4″…………14″
Flats – On Flat…………5″ X 3/4″…………16″
Flats – On Flat…………1-5/8″ X 3/8″…………14″
Squares…………1-3/4″ X 1-3/4″…………16″
Squares…………3/4″ X 3/4″…………12″
Rounds*…………2″…………16″
Rounds*…………3/4″…………12″
Tubes*…………3″ / 2.704″…………30″
Tubes*…………O.D. 3/4″…………12″
I-Beams* – Taper Flanges…………4″ X 2-5/8″…………40″
I-Beams* – Parallel Flanges…………4″ X 2-5/8″…………40″
Channels* – Flange Out…………5″ X 1-3/4″…………32″
Channels* – Flange In…………5″ X 1-3/4″…………32″
(*) Additional Dies Required
CATALOG SPECIFICATIONS:
Diameter of Bending Rolls…………9-13/16″
Bending Force – Maximum…………12.1 Tons
Diameter of Shafts…………3″
Feed Speed…………20 – 25 FPM
Main Drive Motor…………6.6 HP
Hydraulic Motor…………2.4 HP
Actual Dimensions…………45″ x 45″ x 50″
Actual Weight…………3,775 Lbs.
EQUIPPED WITH:
(1) Set of (3) Angle Rolls that are Reversible and (2) Guiding Rolls
Pendant Control
Fully Hydraulic Drive
Hydraulic Adjustment to Lower Rolls
Locking Device for Angular Adjustment of the Guiding Roll
Indicators for the Height Position of the Bending Rolls
Scales for Indicating the Positions in Depth of the Guiding Roll
This machine is universal, it can be Mounted in Horizontal or Vertical
Sealed Hydraulic System
Books, Manuals and Documentation
*Preliminary Specifications Subject to Verification.
