Renishaw Equator 300 | 11.8" x 11.8" x 5.9"Z, 55 Lb. Cap, 2016 - #50569

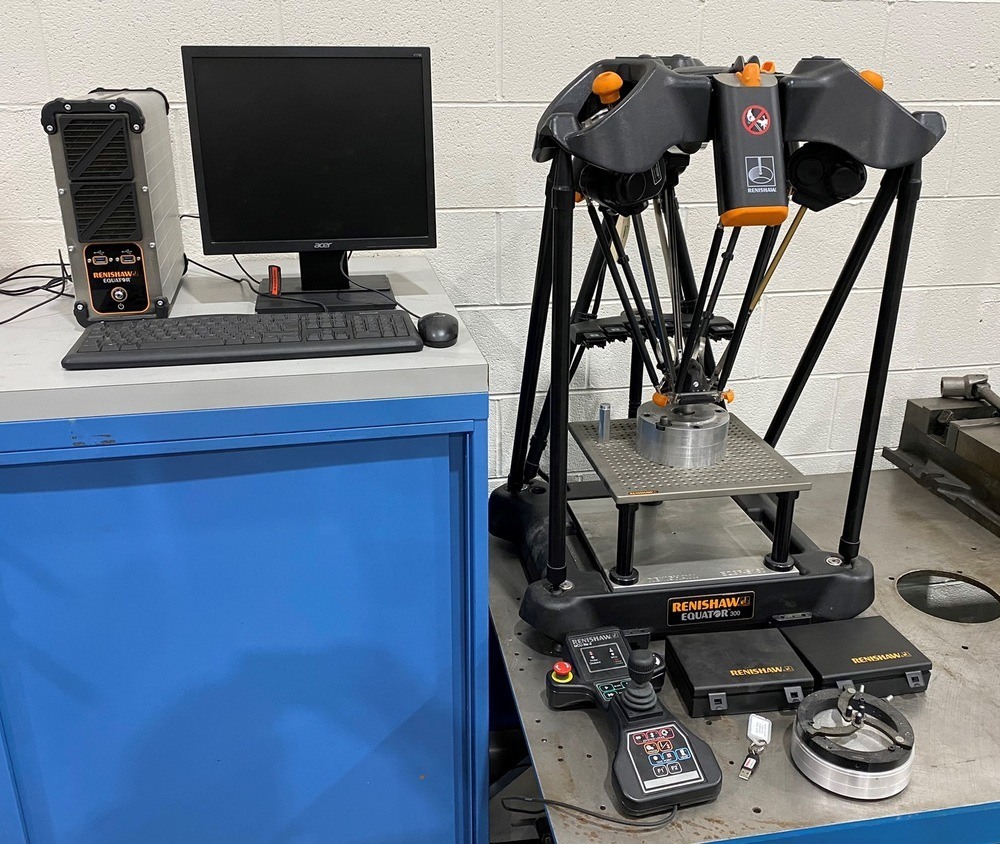

Renishaw Equator 300 Versatile Gauge

New - 2016
Serial No. 2927J1
The Renishaw Equator is an economical inspection system which leverages the principle of comparative measurement against a master part. It is uniquely suited for repeat batch jobs and medium to high volume production.

SPECIFICATIONS:
Working Volume (WV):
XY............11.811"
Z............5.906"
WV Height From Base............8.07"
Workpiece Weight - Maximum............55.12 Lbs.
Comparison Uncertainty............+- 0.002 mm
Scanning:
- Speed (SP25) - Maximum............7.87 Inch/Sec
- Rate (SP25)............1000 Points/sec
Recommended Touch Speed (TP20)............0.39 Inch/Sec
Movement Speed - Maximum............19.685 Inch/Sec
Scale Resolution............0.0002 mm
Fixturing Requirement............+- 0.04"
Machine Air Supply Requirement............No Air Required
Temperature:
- Operating............41 Deg F to 122 Deg F
- Storage............-13 Deg F to 158 Deg F
Relative Humidity Operating Range............Max 80% RH at 104 Deg F, Non Condensing
Power Consumption:
- Maximum............190 W
- Typical............80-100 W
Electrics............100-240V AC +-10%/ 50-60 Hz

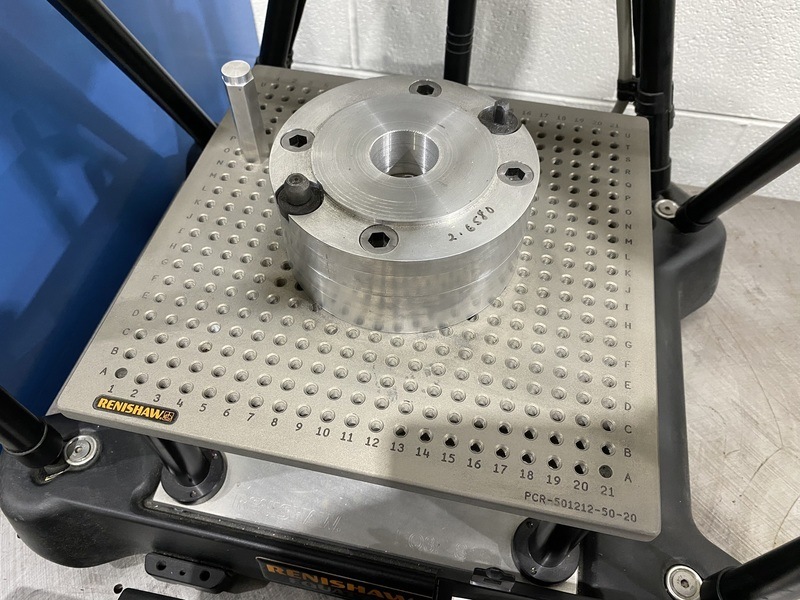

Fixture Plate............12.008" x 12.008" aluminum
Machine Weight - Catalog............60 Lbs.
Dimensions - Catalog............23" x 20" x 34"(H)

EQUIPPED WITH:
Renishaw A-5696-0010-08 Controller
MCU lite-2 Pendant
Renishaw 3-axis TP20 Kinematic Touch-Trigger Probe
Renishaw 3-Axis SP25 analogue Scanning Probe

*Preliminary Specifications Subject to Verification.
