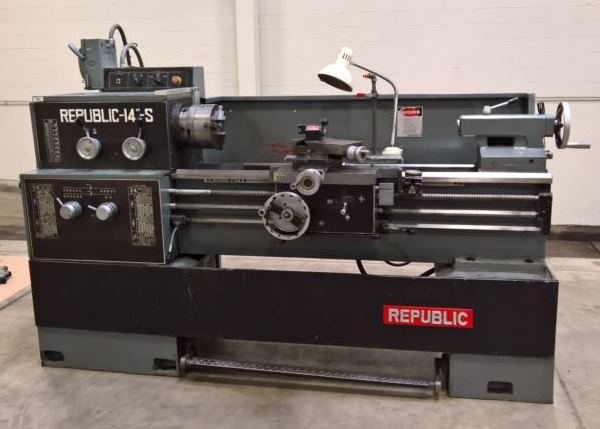

Republic 14/20x40 Gap Bed Lathe | 14"/20" x 40" cc Cap. - #47339

Liberty Machine # 47339 Category Make

Serial No. 9204026
New - 1992

SPECIFICATIONS:
Capacity

Swing Over Bed........................................................14-1/8"
Swing Over Bed within 7-1/2" in Front of Spdl. Nose.......................15"
Swing Over Gap............................................................20"
Swing Over Cross Slide.................................................8-1/2"
Swing over Carriage Wings.................................................14"
Distance between Centers..................................................40"
Hole through Spindle - to Pass.............................................2"
Headstock Spindle Nose.........................................D-1-6" Camlock
Taper Hole in Nose.............................#6 MT w/Reduced Sleeve to #4MT
Spindle Speeds (16)............................................40 - 2,000 RPM
Cross Slide Travel.........................................................9"
Compound Travel (Graduated 180 Deg.).......................................5"
Tailstock Quill Diameter (Hardened and Ground).............................2"
Quill Travel with Dial.................................................6-1/2"
Quill Taper.............................................................#4 MT
Total Thread Changes L.H. or R.H...........................................45
Standard Threads w/Only One Gear Change (45)..........2, 2-1/4, 2-1/2, 2-3/4,
2-7/8, 3-1/4, 3-1/2, 3-3/4, 4, 4-1/2, 5, 6, 7, 7-1/2, 8, 9, 10, 11, 11-1/2
12, 13, 13-1/2, 14, 15, 16, 18, 19, 20, 22, 23, 24, 26, 27, 28, 30, 32, 36,
40, 44, 48, 54, 56, 60, 72
Module (18).....................................................0.3 Up to 3.5
Diametral Pitch (21)...............................................8 Up to 44
Metric Threads (39)..............................................0.2 to 14 mm
Feeds - Longitudinal...........................................0.002" - .066"
Motor - 2 Speeds..........................3 Phase/60Hz/220 V(440 V Opt.)/5 HP
Approximate Overall Dimensions.............................80"L x 30"W x 53"H
Approximate Weight.................................................2,800 Lbs.

EQUIPPED WITH:
Removable Gap
Inch/Metric Threading
Taper Attachment
Steady Rest and Follow Rest

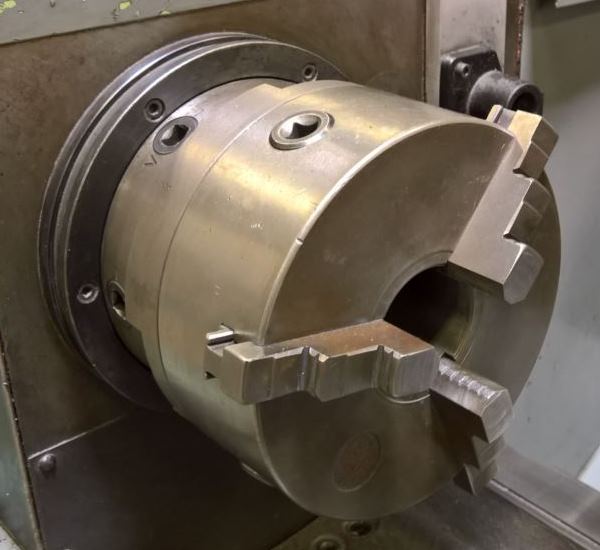

8" 3-Jaw Chuck, 19" Face Plate
Foot Treadle Spindle Braking
Chip Pan Base

*Preliminary Specifications Subject to Verification.
