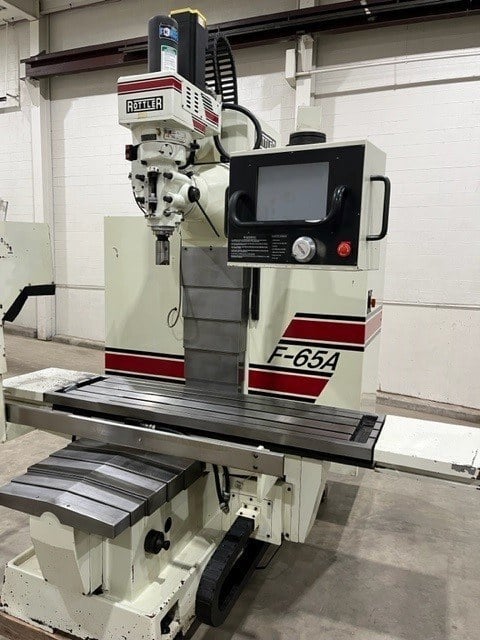

New – 2004
Serial No. 65097
SPECIFICATIONS:
Table:
– Size…………60″ x 17″
– T-Slots (no. x width x distance)…………3 x 0.63″ x 3.94″
Travels:
– X-Axis (Horizontal)…………40″
– Y-Axis (In/Out)…………20″
– Z-Axis (Vertical)…………26″
– Spindle (Manual)…………5″
– Spindle Nose to Table…………4″ – 30″
– Spindle Center to Column…………20.9″
Spindle:
– Taper…………NMTB40
– Diameter…………4.13″
– Rotation Speed…………1 – 1800 RPM
– Head Tilt…………90° (Right and Left)
Performance:
– Rapid Travel – X & Y…………200 IPM
– Rapid Travel – Z…………150 IPM
– Feed Rate…………0.001″ – 0.060″
– Repeatability…………±0.0002″
Motors:
– Spindle…………5 HP, 150 In. Lbs.
– 3-Axis…………40 In. Lbs.
General:
– Floor Space – Catalog…………131″L x 81″W x 104″H
– Actual Shipping Dimensions…………96″ L x 88″ W x 100″ H on Blocks
– Machine Weight – Catalog…………8,000 Lbs.
– Electrical Requirement…………208/240V/1Ph/60Hz
– Air Requirement…………100 PSI
EQUIPPED WITH:
Touchscreen control for programmable automatic machining
Windows based CNC control with Fully Programmable Cycles:
* Bore Centers, Exact Depth, Speed, Feed, etc.
* Bores Complete Bank in Automatic Cycle
* Lower Bore Relief, Off Center Boring for Honing Clearance
* Surfacing – Multiple Pass Programmable for Roughing & Finishing. Can Remove any Amount of Material in One Automatic Cycle.
* Lifter Bore machining – bore housings and ream bushes to exact final size.
* Automatic line bore cycle completes all main bearing housings to within .0002″
* Face Main line Thrust bearing Faces square to Crankshaft centerline
* machine a Radius for Stroker Crank Connecting Rod and Bolt Clearance
* FLEXCAM CNC program allows G Code programming and File Transfer with CAD/CAM programs.
Variable speeds & feeds, AC Servo Brushless Motors and Axis Motors, Precision ball screws
(Optional Equipment Included)
Power Draw Bar
*Preliminary specifications, subject to verification.
