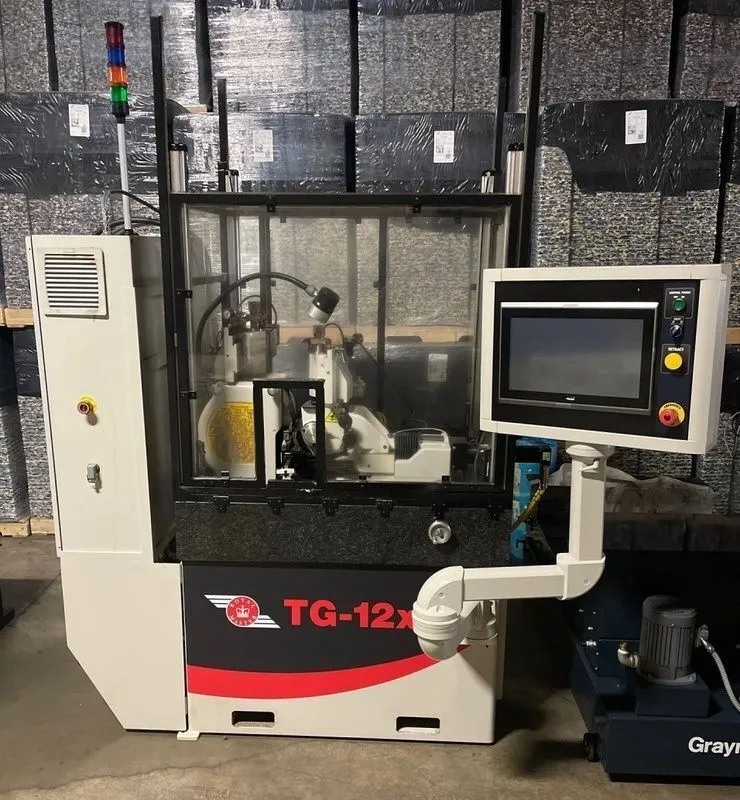

New – 2018
SPECIFICATIONS:
Machine Capacity…………0.002″ – 1.5″
Accuracy…………0.00002″
Sizing Increments…………0.000010″
Grinding Wheel Size…………12″ diameter x 4″ wide
Regulating Wheel Size…………6″ diameter x 4″ wide
Regulating Wheel Speed (Servo Driven)…………0-500 RPM
Spindle Motor…………7.5 HP
Machine Weight – Approximate…………3800 Lbs.
Machine Dimensions – Approximate…………50″L x 70″W x 85″H
Electrics…………230/460V/3Ph/60Hz
EQUIPPED WITH:
Royal Master BEDROCK Series Machine Bed and Base (8″ thick surface plate quality granite with coolant trough ways)
Royal Master Hi-Accuracy Size Compensating Unit for Fully Programmable Infeed Automatic Cycling:
– Larger Machine Bed for better coolant containment and incorporation of Hi-Accuracy system components
– Regulating Wheel Swivel and Digital Swivel Indicator
– Angle Mount Bracket for Regulating Wheel Housing
– SA-1176 Servo Motor will drive the regulating wheel with increase and decrease speed from touch on the operator screen. Single touch to speed regulating wheel to dressing speed.
Parker CTC Color Touch Screen Control
Work Wheel Dresser (air sensing, programmable traverse feed)
Regulating Wheel Dresser (air sensing, programmable traverse feed)
Regulating Wheel Taper Adjustment Feature
Lateral Regulating Wheel Housing Adjustment Feature
Thrufeed Workrest Holder
Thrufeed Wrokrest Blade (1/4″ to 1/2″)
Thrufeed Hold Down Bar

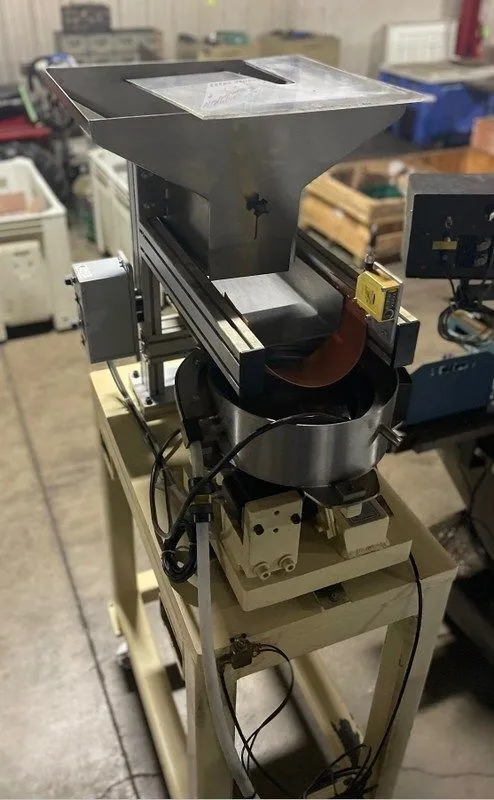

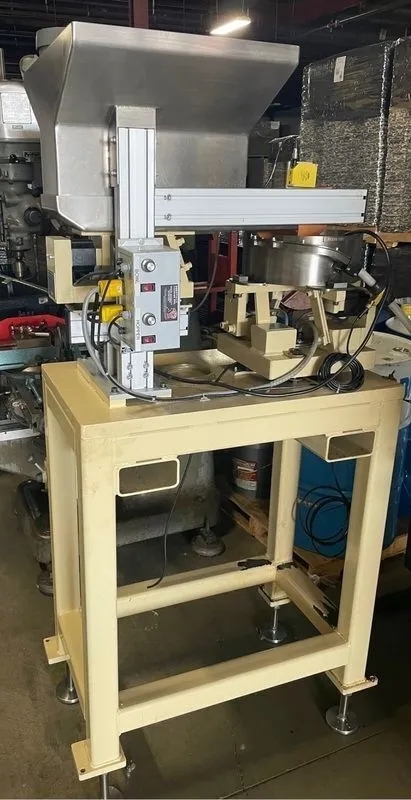

Vibratory Feeder

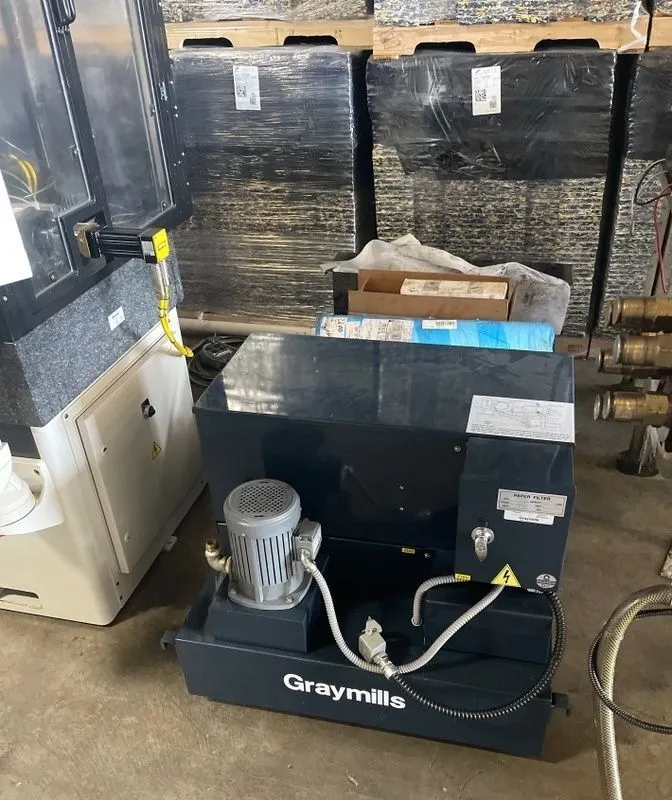

Graymills BFTS160 Fabric Coolant Filtration Unit with MS160 Magnetic Separator (20 gal/min flow capacity, 67 gallon tank)
Royal Master Precision Balancing Package (turned pulleys, poly “v” bets)
Automatic Lubrication of Ram Bed Dovetails
Machine Light and Partial Enclosure
RS232 Port
*Preliminary specifications, pending confirmation.
