Sharp 1118H High Precision Tool Room Lathe | 11" X 18" Cap. - #48538

Liberty Machine # 48538 Category Make

Serial NO. CTL-1251
Year - 1998

SPECIFICATIONS:
CAPACITY
Swing Over Bed....................................................11" (280mm)
Swing Over Carriage................................................9" (229mm)
Swing Over Cross Slide.............................................6" (150mm)
Distance Between Centers..........................................18" (460mm)
SPINDLE:

with Round 5C Collets..............................1-1/16" - 16" (27 - 152mm)
with Hexagon 5C Collets.........................................7/8" (22.2mm)
with Square 5C Collets............................................3/4" (19mm)
with Expanding Chucks...............................................3" (70mm)
with Step Chucks...................................1-1/16" - 16" (27 - 152mm)
with Jaw Chucks....................................................5" (130mm)
Speed Range (Infinitely Variable).............................130 - 4,000 RPM
Nose Taper (Inside)...........................................5C (10 Degrees)
Nose Taper (Outside)................................................4 Degrees
Accuracy TIR..............................................0.000050" (0.001mm)
TRAVEL & FEED RANGE:
Cross Slide Travel.................................................6" (152mm)
Compound Slide Travel...............................................3" (76mm)
Quick-Action Compound Slide Travel...............................0.1" (2.5mm)
Carriage Power Feed Range...............................5/16" - 7" (8 -177mm)
Cross Slide Power Feed Range............................5/16" - 4" (8 -100mm)

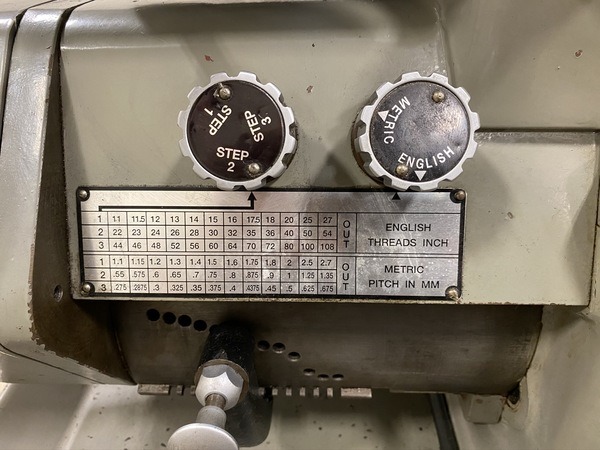

THREADING:
Leadscrew Pitch, Diameter...........................................8 tpi, 1"
Inch Threads (36)....................................................11 - 108
Metric Threads (36)...............................................0.275 - 2.7
Tailstock:

Spindle Diameter................................................1.358" (34mm)
Spindle Taper...........................................................MT #2
Spindle Travel...................................................3.75" (95mm)
Quill with Tang...........................................................Yes
GENERAL:
Electricity Required...........................220V, 3 Phrase or Single Phase
440V Requires Optional Transformer
Main Motor.....................................5HP (Infinitely Variable Speed
Coolant Pump Motor.....................................................0.25HP
Feed Motor (DC).............................................75 Watt, 110 Volt
Weight, Catalog - Approximate......................................2,300 Lbs.

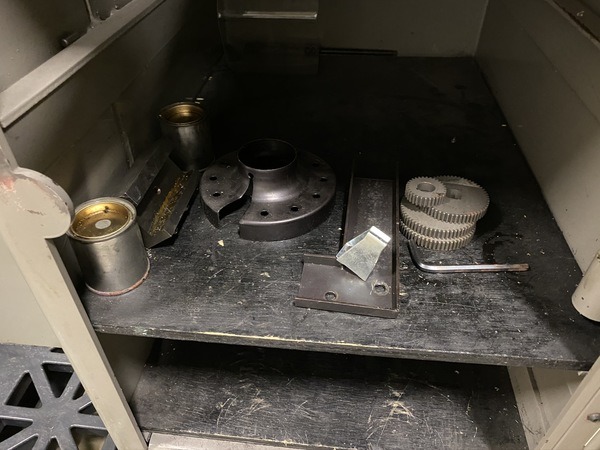

EQUIPPED WITH:
5C Lever Type Collet Closure
Chuck Guard
Drive Plate
Spindle Nose Cover
Headstock Cover
Drive Dog
Drive Gear

*Catalog Specifications Subject to Verification
