Click HERE if you have a Shigiya Grinding Machine to sell.

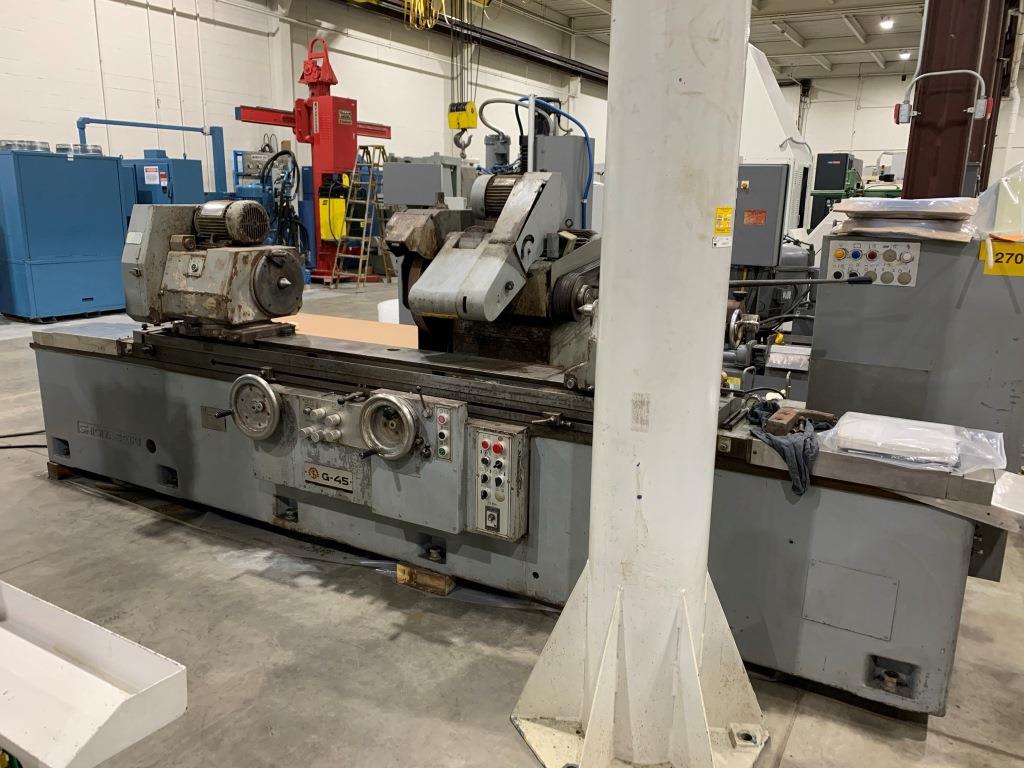

Serial No. 50131
Year Built – 1996
SPECIFICATIONS:
Swing Over Ways…………….17.5″ (444mm)
Distance Between Centers…………59″ (1500mm)
Wheel Head:
Standard Wheel Dimensions…………24″OD x 3″W x 10″ID
Revolution of Wheel (Belt Replacement)…………1040, 1260 RPM
Wheel Rapid Feed…………2-1/3″ (60mm)
Automatic Infeed Stroke – Maximum…………1/32″ (0.8mm)
Plunge Cut – Automatic Infeed Speed (Continuous)…………0.0008″ – 0.06″ (0.02mm – 1.5mm)
Plunge Cut – Spark-Out Adjustment Range…………0-30 sec
Traverse Cut- Automatic Intermittent Infeed Amount Depth…………0.00004″ – 0.04″ (0.001mm – 0.1mm)
Work Head Shigiya Grinding Machine GP-45/150:
– Spindle Revolution and Swivel Angle (Live Spindle)…………120 Deg.
– Work Spindle Revolutions…………13-200 RPM (8 Steps)
– Taper of Center…………No. 5 MT
Tailstock:
– Spindle Stroke…………1-3/4″ (45mm)
– Taper of Center…………No. 5 MT
Table:
– Swivel Range – Maximum (Counterclockwise)…………7 Deg.
– Swivel Range – Maximum (Clockwise)…………2 Deg.
– Feed/Revolutions of Handle…………0.1″ – 1.6″ (3mm – 15mm)
– Automatic Traverse Speed Range (Variable)…………2″ – 118 min
Electric Motor Wheel Spindle…………14.75 HP ( 11kw)
Electrics Currently Configured for………480/3/60
Net Weight-Approximate…………11684.5 Lbs. (5,300kg)
Shigiya Grinding Machine GP-45/150 EQUIPPED WITH:
Swing Down Internal Grinding Spindle
Plunge, Tarry, Spark-Out Timer
Tailstock Mounted Wheel Dresser
Spindle Lubrication Unit
Coolant System

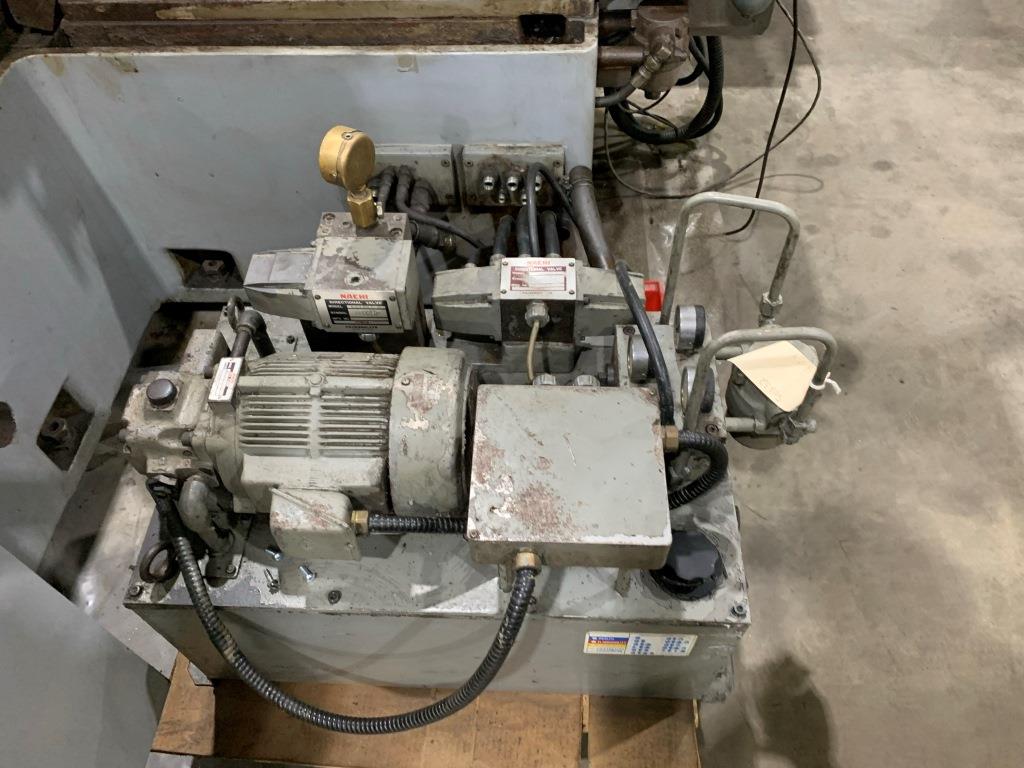

Hydraulic System
Books, Manuals, and Drawings
*Preliminary Specifications Subject to Verification
The cylindrical grinder is a crucial machine tool used in precision engineering. It facilitates the grinding of cylindrical and conical surfaces on workpieces with high accuracy and consistency. Equipped with a rotating abrasive wheel, the Shigiya grinding machine effectively removes material, creating fine surface finishes and achieving tight tolerances. Industries such as aerospace, automotive, and manufacturing heavily rely on cylindrical grinders to produce shafts, rods, and other cylindrical components. These grinders play a vital role in enhancing productivity, ensuring top-notch quality, and meeting stringent engineering requirements. As a result, the Shigiya grinding machine remains a cornerstone in modern manufacturing processes, providing the essential means for achieving precision and excellence.
Click HERE and HERE if you would like to read more about cylindrical grinding machines.
