Shigiya GPS-30B.75 CNC OD Grinding Machine | 16"Sw, 29.5"CC, 16"x2"Whl, 2019 - #50431

Liberty Machine # 50431 Category Make

Shigiya GPS-30B.75 CNC OD Grinding Machine
New - 2019

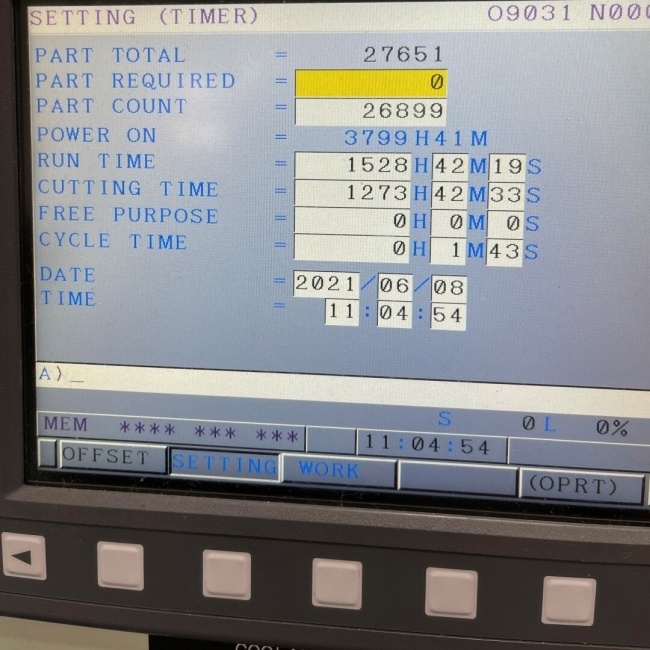

Hours:
- Power On............3799
- Running Time............1528
- Cutting Time............1273

SPECIFICATIONS (Shigiya GPS-30B.75 CNC OD Grinding Machine Catalog):
Capacity:
- Swing Over Table............16.14"
- Distance Between Centers............29.53'
- Grinding Diameter - Maximum............12.8"
- Workpiece Weight When Using Both Centers - Maximum............330.7 Lbs
Wheelhead:
- Swivel Angle............Non-Swivel
- Wheel Size - OD x W x ID............15.94" x 1.97" x 6"
- Wheel Peripheral Speed - Maximum............108.27 Ft/Sec
- Total Feed Amount............12.2"
- Rapid Feed Amount............1.57"
- Feed Speed............0 - 787.4 IPM
- Input Increment - Minimum............0.00000394"
Workhead:
- Swivel Angle............Non-Swivel
- Work Spindle............Dead/Live spindle
- Rotational Speed............15 to 600 RPM
- Taper Hole............MT#4
Tailstock:
- Type............Manual Lever Type
- Spindle Stroke............1.18"
- Taper Hole............MT#4
Table:
- Counter-Clockwise Swivel Angle............9°
- Clockwise Swivel Angle............0°
- Feed Speed............0 - 590.55 IPM
- Input Increment - Minimum............0.00000394"
Motor:
- Wheel Spindle............4.96 HP
- Work Spindle - AC Servo............1.88 HP
- Wheelhead Feed - AC Servo............1.61 HP
- Table Traverse - AC Servo............1.61 HP
- Wheel Spindle Lubrication Pump............0.13 HP
- Hydraulic Pump............1 HP
- Coolant Pump............0.24 HP
Tank Capacity
- Wheel Spindle Lubrication Oil Tank............3.17 gal (ISO VG5)
- Hydraulic Oil Tank............5.28 gal (ISO VG68)
- Coolant Tank............31.7 gal
Machine Height - Approximate............43.5"
Machine Weight - Approximate............9700 Lbs

EQUIPPED WITH:
- Fanuc Series 0i
- Machine Full Cover
- Wheel Lifting Tool (screw fix type)
- Spare Wheel Flange
- Wiring Provision for Inprocess Gauge
- Table Swivel Angle Measuring device
- Longitudinal Positioner (wheelcover mount type/Metrol)
- Dead/Live Spindle with Non-Swivel Base Workhead
- Workhead Air Purge Device
- Hydraulic Tailstock
- Coolant Pan Cleaning Device (including splash gun)
- Indicator for Air Pressure Alarm
- Handle Pulse Encorder Removal Type Specified
- USB Output Device
- 2-Point Steady Rest

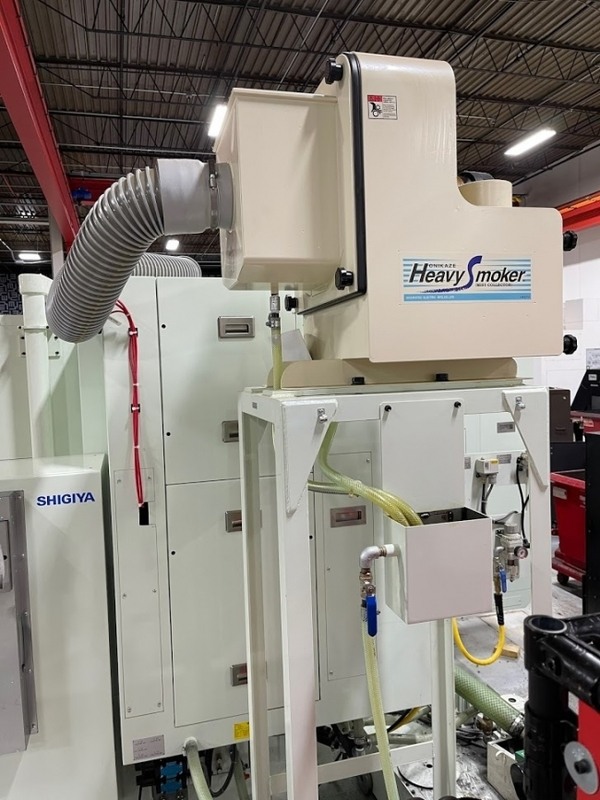

- Oil Mist Collector
- Magnetic Coolant Dust Separator
- Tailstock ADV/RET Foot Switch
- Work Rest (0.79" - 5.12")
- Gap eliminator Device (SBS) AE-100
- Auto Wheel Balancing System (SB-1000 SBS)
- Machine Lighting Equipment (LED)
- Diamond Tool

Preliminary Specifications Subject to Verification*
