Sip Jig Borer MP-43 CNC | 25″ x 30″ Table – #33476

Liberty Machine # 33476 Category Make

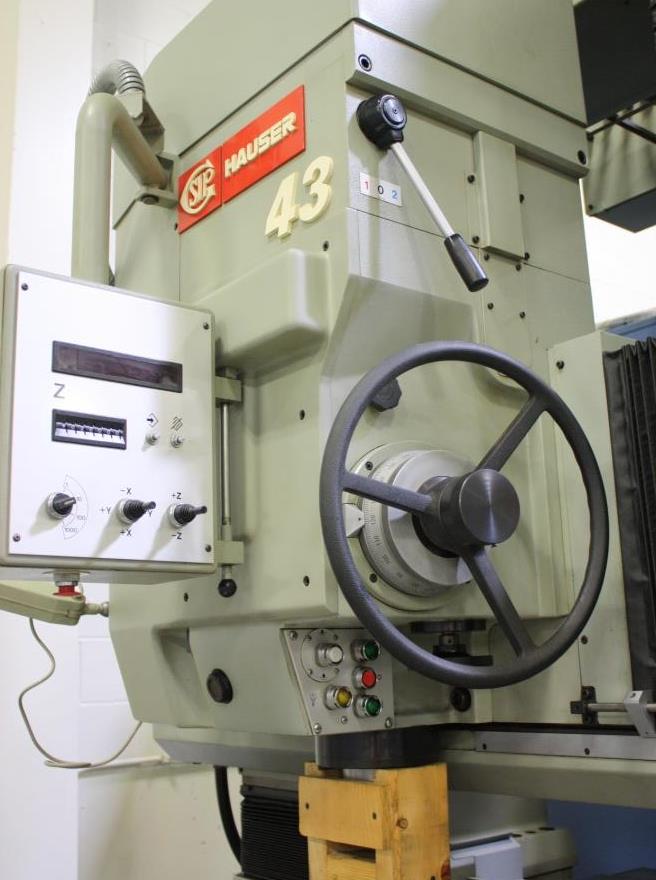

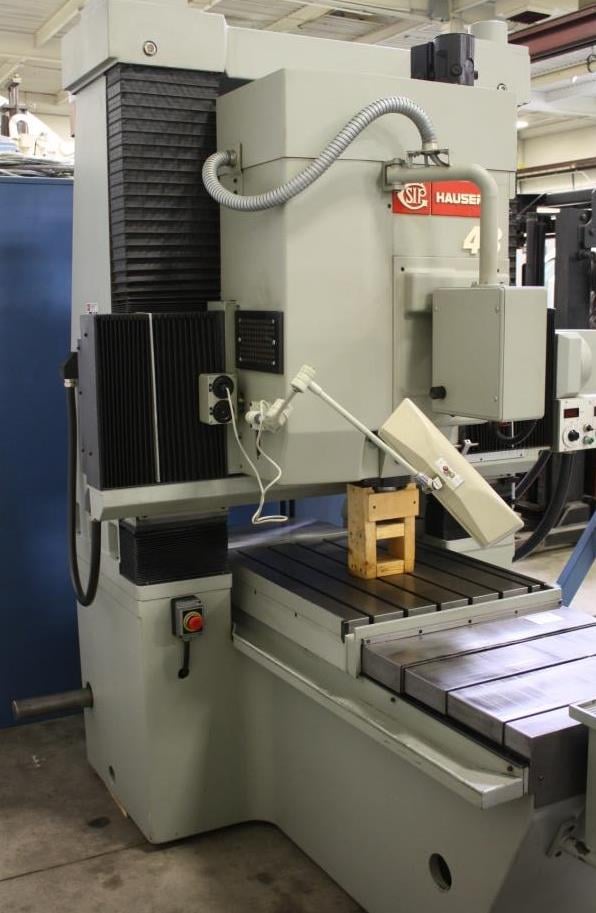

Sip Jig Borer MP-43 CNC

Serial No. 0207 New – 1999
Spindle Hours: 2045
Fanuc Control retrofit (2005) by, Swisstronic Precision.
Sip Jig Borer MP-43 CNC SPECIFICATIONS:

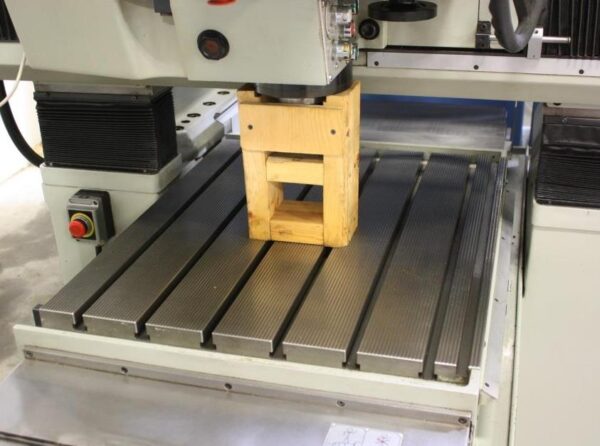

Table Size…………630 X 770mm (24.8″ X 30″)
Table Weight Capacity…………500kg (1,100 Lbs.)
Table T-Slots (6)…………14mm (.55″)
X-Axis Travel – Table Movement…………650mm (25.6″)
Y-Axis Travel – Headstock…………450mm (17.7″)
Z-Axis Travel – Stroke of Quill…………160mm (6.25″)
W-Axis Travel – Headstock Cross Travel…………500mm (19.5″)
Distance Between Columns…………750mm (29.5″)
Distance Between Spindle Nose & Table…………10-670mm (4-26.25″)
Table Travel Speeds…………800mm/min. (31.5 IPM)
Table Feed – Milling Speeds…………0.1 – 6m/min. (.004 – 240 IPM)
Table Feed – Rapid Advance…………6m/min. (240 IPM)
Headstock Feed – Milling Speeds…………0.1 – 6m/min. (.004 – 240 IPM)
Headstock Feed – Rapid Advance…………6m/min. (240 IPM)
Feed Motor…………1.15kW (1.5 HP)
Spindle Speeds -(Low-High) Stepless…………20-1250 and 1250-4000 RPM
Quill Feed – Motorized Advance…………0.01-0.39mm/rev. (0.00039-0.0153″/rev.)
Quill Diameter…………95mm (3.7″)
Spindle Taper…………40 ISO
Spindle Motor…………5kW (6.7 HP)
Electrics…………380V/440V / 3 Phase / 50/60Hz
Approximate Dimensions…………2300 X 2700 X 2400mm(91″L X106″W X95″H)
Approximate Weight…………6000 Kg (13,300 Lbs.)

EQUIPPED WITH:

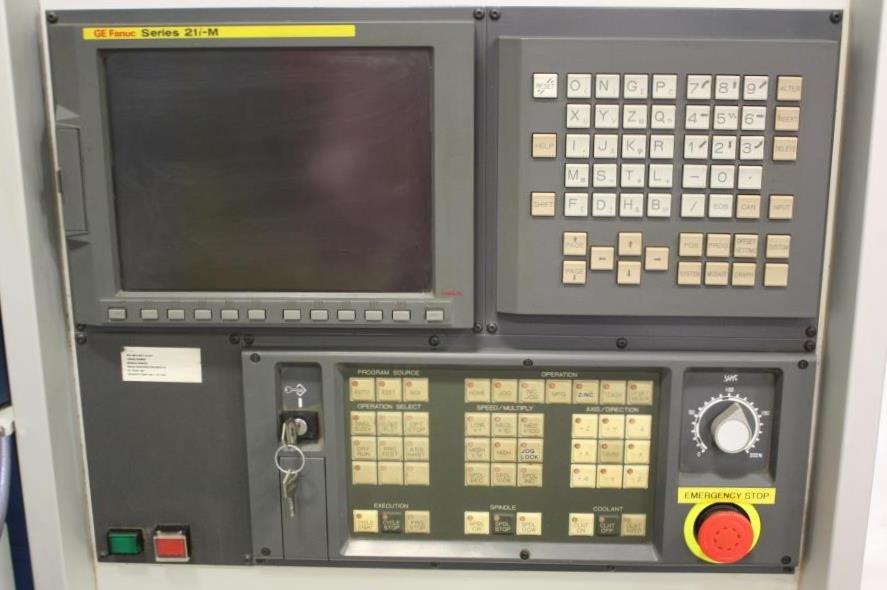

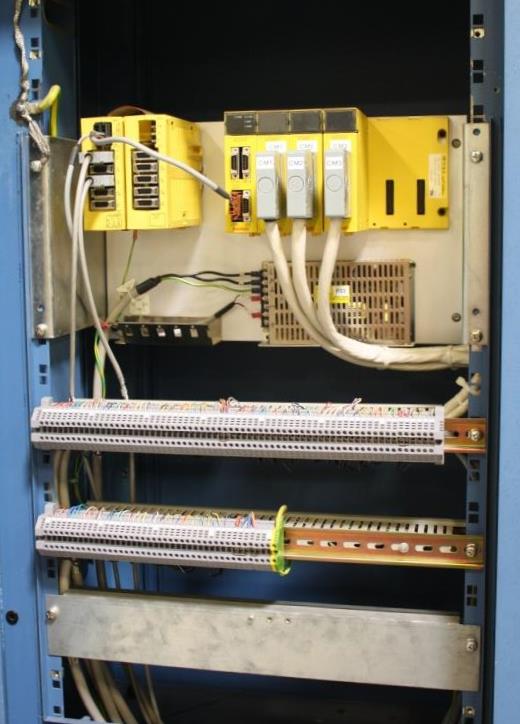

GE Fanuc Series 21i-M Controller and Fanuc Drives (Swisstronic Retrofit, 2005)
Isolated Mounted Control Station w/ Directional Control Screen

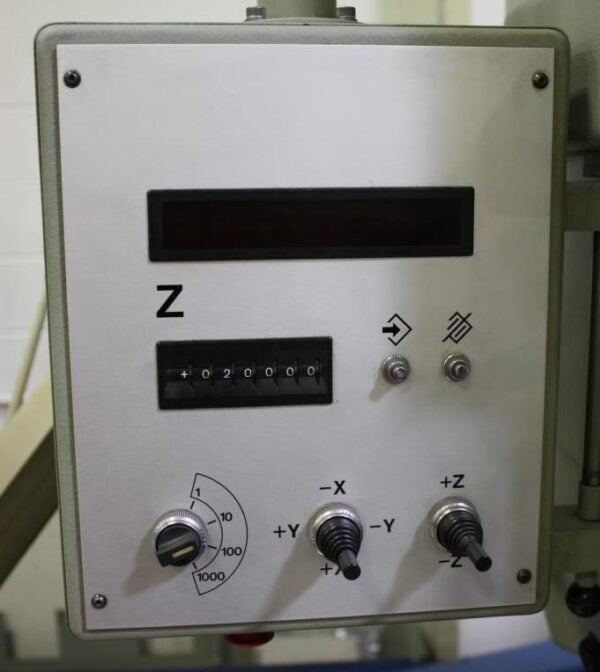

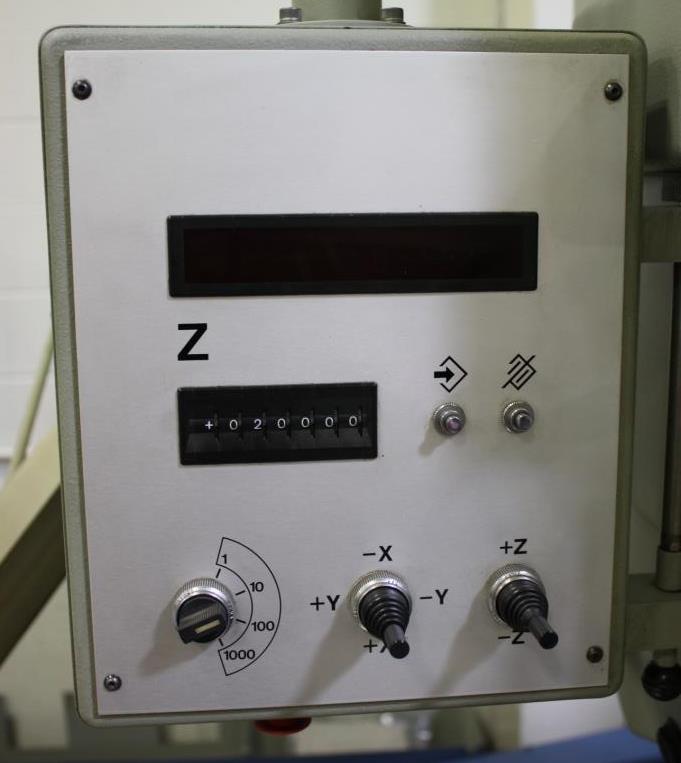

Depth Display Z-Axis (Quill Movement)

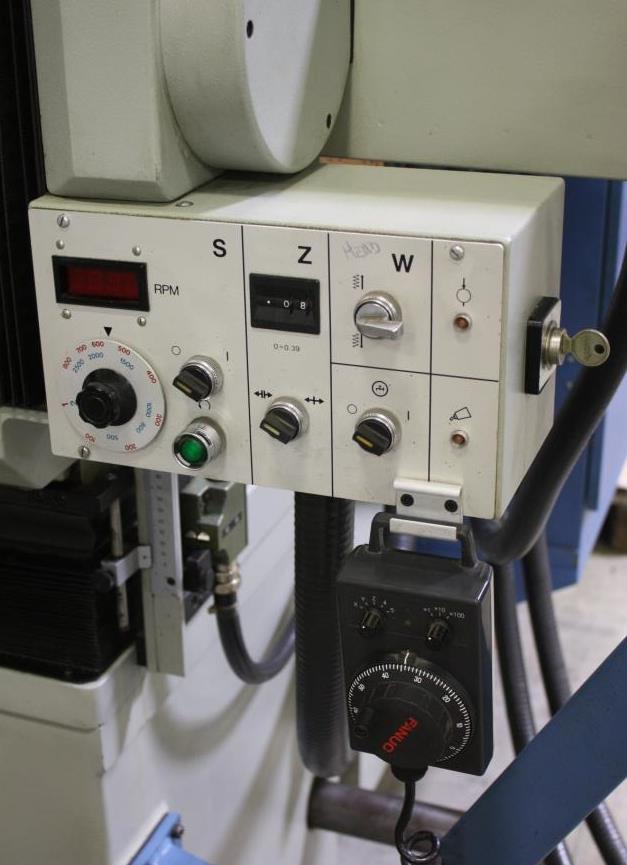

Spindle Speed Gear Selector with Variable Speed Control
Spindle Speed Monitoring
Spindle Direction Reversible
Joystick Control in Jog Mode for X,Y,Z-Axis
(4) Selectable Increments for Quill Movement:0.001/0.010/0.100/1.000mm
Automatic Clamping Pin
Automatic Tool Shutdown

*Preliminary Specifications Subject to Verification.
