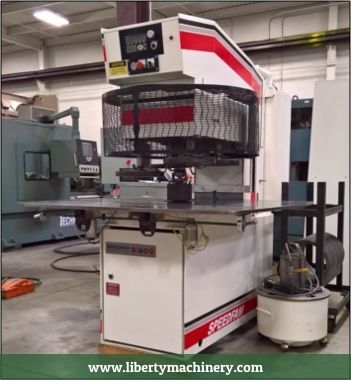

Speedfam 32BTGW Lapping Machine W/ Pneumatic Hold Downs | 32" Cap. - #38951

Liberty Machine # 38951 Category Make

Serial No. G 32 BTGW 2053
New - 1998

SPECIFICATIONS:

Lapping Plate..................................................32" Diameter
Inside Diameter of Rings................................................12"
Total Ring Area..............................................452 Sq. Inches
Segment Thickness......................................................5/8"
Cylinder Size........................................................3-1/4"
Down Pressure, per Head............................................264 Lbs.
Approximate Plate Speed..............................................87 RPM
Electrics........................................230V, 3 PH, 60 Cycle, 3 HP
Actual Lapper Dimensions..............................60" L x 81" W x 80" H
Actual Media Pump Dimensions..........................20" L x 20" W x 28" H
Actual Cart/Tooling Dimensions........................32" L x 20" W x 49" H
Weight - Approximate.............................................4,000 Lbs.

EQUIPPED WITH:

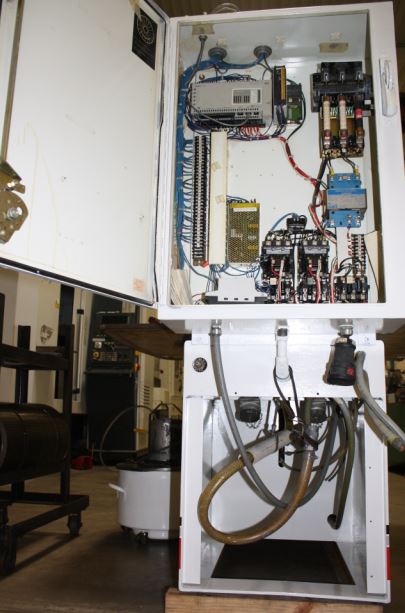

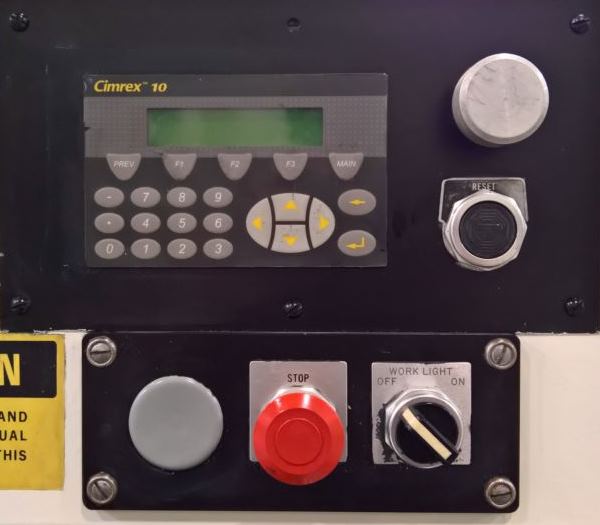

AEG Modicon Micro PLC with Cimrex Operator Interface

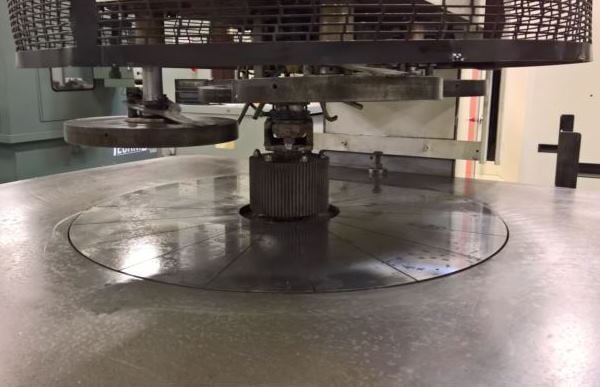

32" Cast Iron Segmented Lapping Plate
Cooled Head
Water Cooled Table
(4) Pneumatic Pressure (hold down) Plates

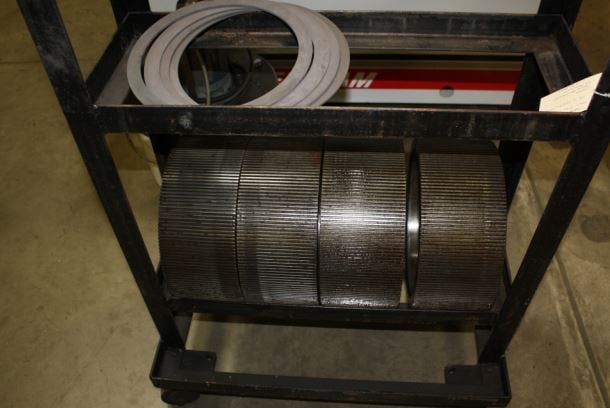

(4) Conditioning Rings
Center Reversing Gear
Pneumatic Lapping Area Safety Gate (Full Enclosure)
Pneumatic Load/Unload Perimeter Table
Anti-Tie Down Safety Control
Graymills Slurry Dispensing System
Worklight

*Preliminary Specifications Subject to Verification.
