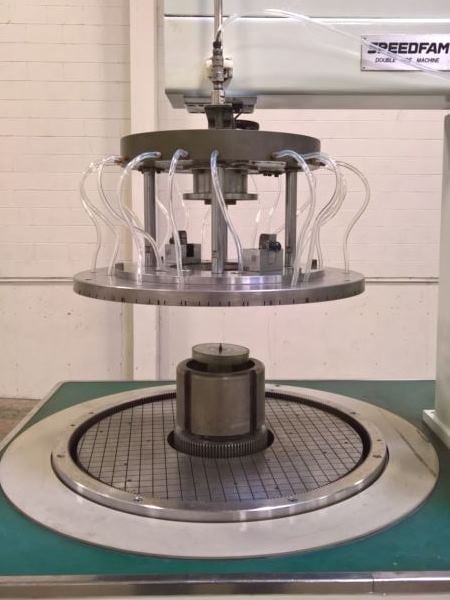

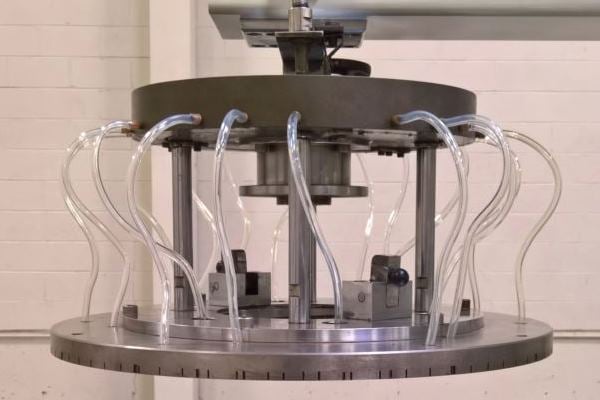

Speedfam 9B-5L Double Sided Lapping Machine | 25" Cap. - #47533

Liberty Machine # 47533 Category Make

Serial No. 9B-5L-TO265
New - 1997

SPECIFICATIONS:
Plate Diameter..........................................................24.8"
Plate Diameter......................................................I.D.9.52"
Plate Thickness.......................................................1-3/16"
Lower Plate Speed..................................................7 - 60 RPM
Work Carrier Speed.................................................6 - 60 RPM
Total Workload Area........................................92.7 Square Inches
Upper and Lower Plate Drive Motors.......................................3 HP
Work Carrier Motor.......................................................3 HP
Number of Workpiece Carriers................................................5
Work Carrier Usable Diameter.............................................5.9"
Workpiece Thickness - Minimum..........................................0.005"
Workpiece Thickness - Maximum...........................................0.98"
Height - Head Up..........................................................98"
Electrical...........................................................208/3/60
Length x Width......................................................66" x 44"
Approximate Weight.................................................3,748 Lbs.

EQUIPPED WITH:

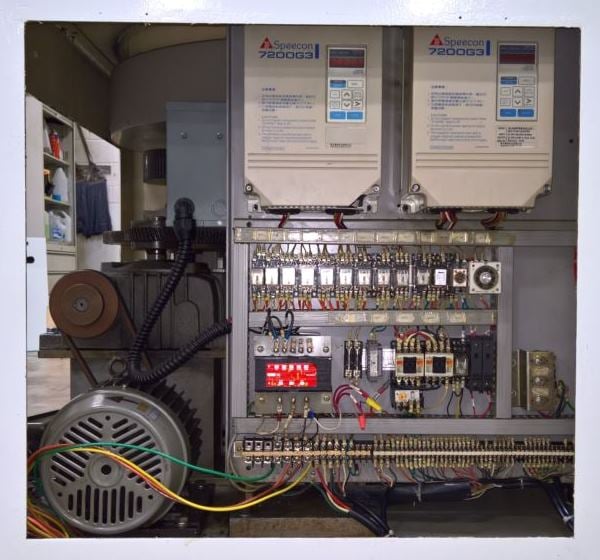

Direct Read System/ Process Controller
Timers for Three Pressure Settings
Sony Model LH31-A Digital Read-Out
Upper Limit and Lower Limit Thumb-wheel Pre-set

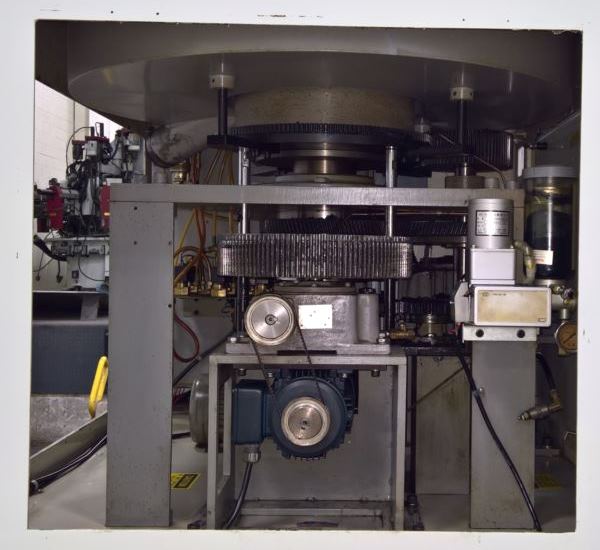

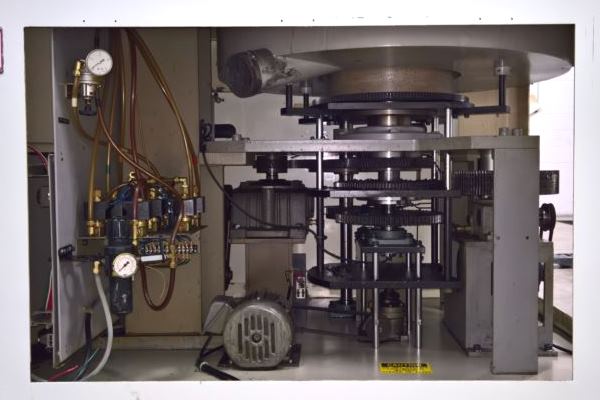

Drive System: The machining plates and work carrier drives are variable speed,
gear reduced, soft starting and electronically controlled.
Rigid Machining Plate Support System

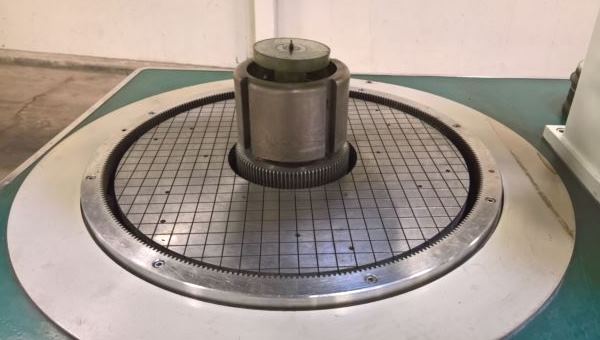

Solid with Slurry Drain Holes Machining Plate
Plumbed for Speedfam Slurry Tank and Pump Distributor with Manual and

Automatic Controls

*Preliminary Specifications are Subject to Verification.
