Serial No. 02.06.909 New – 2002
SPECIFICATIONS:
Working Range:
Wheel Diameter – Maximum…………27.559″/700mm
Wheel Ring Width – Maximum…………7.874″/200mm
Work Piece Height – Maximum…………3.937″/100mm
Speeds:

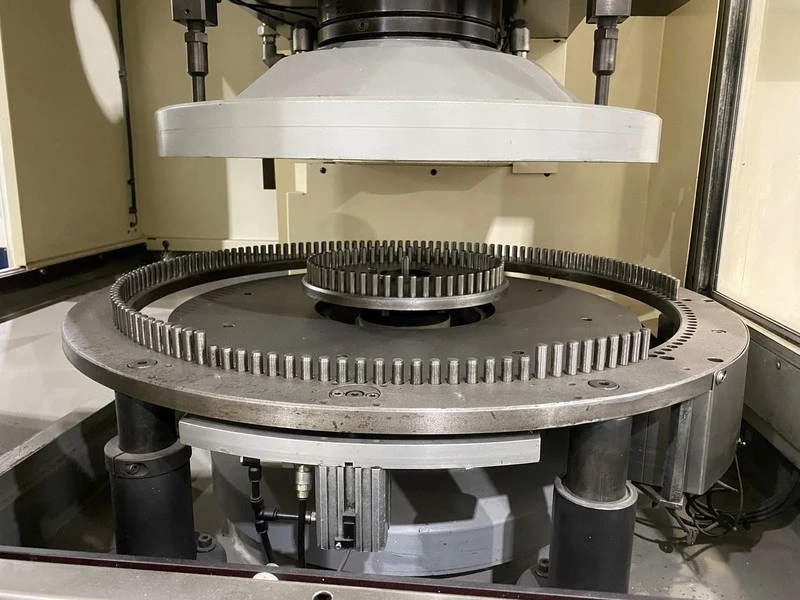

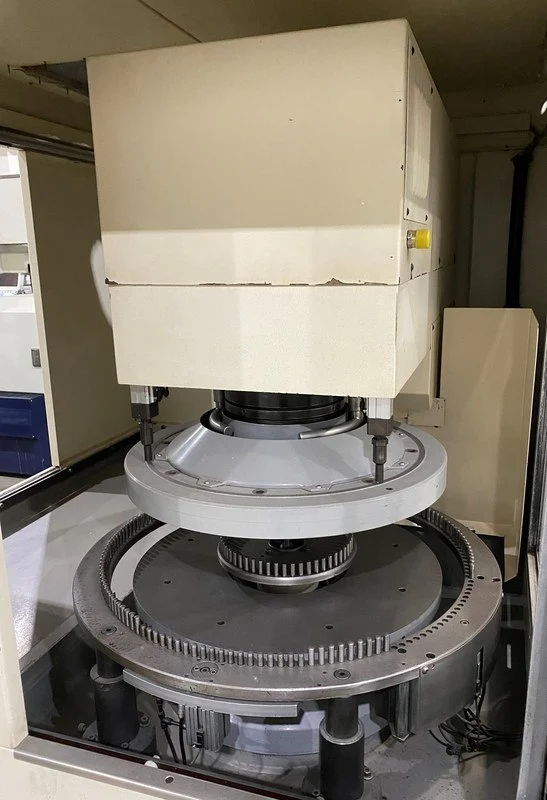

Top Wheel – Continuously Variable…………0 – 200 RPM
Bottom Wheel – Continuously Variable…………0 – 200 RPM
Center Drive – Continuously Variable…………0 – 100 RPM
Drive Power:
Top and Bottom Wheels – Each…………12.7 HP/9.5kW
Center Drive…………5.0 HP/3.8kW
Operating Pressure Adjustment – Continuously Variable…………0-1300 daN (Pneumatic)
Electrical Equipment:
Equipment w/DIN 57 113/VDE Completely Installed
Main Power…………220VAC/60Hz
Control Voltage…………V 230/50+24=
Connected Load/Power Requirement…………23kW/80A
Cable-Cross…………25mm2
Operating Pressure:
Air Connected – Minimum…………6 Bar
Digital Measuring Instrument:
Range…………0.3937″/10mm
Accuracy…………0.00003937″/0.001mm
Workplace-Based Noise Emission Value:
AP 1 – Idle Operation…………Approximately 75dB(A)
Working Noise…………Approximately 78dB(A)
Machine Dimensions without Coolant System…………86.6″L x 76″W x 105″H
Weight without Accessories…………5,071 Lbs/2300 kg
EQUIPPED WITH:

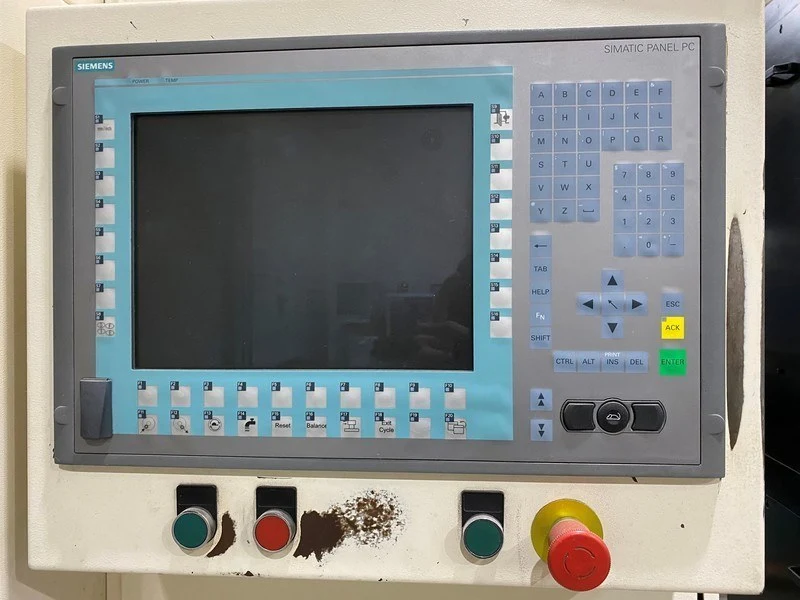

Siemens Simatic Panel PC Controller

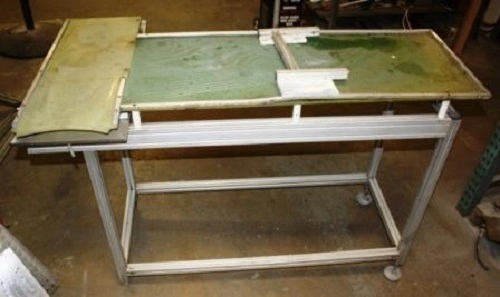

Loading and Unloading Tables
Koolant Koolers Model KV-1000 Chiller
*Preliminary Specifications Subject to Verification.
