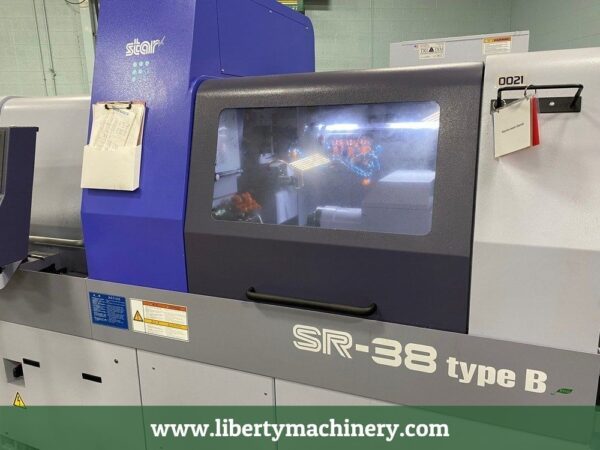

Star CNC SR-38 Type B Swiss Screw Machine - #50247

Liberty Machine # 50247 Category Make

New - 2019

CATALOG SPECIFICATIONS:
Machining Diameter - Maximum............1-1/2"
Headstock Stroke with R.G.B. Unit - Maximum............12-19/32"
Headstock Stroke with R.M.G.B. Unit - Maximum............11/32" : OP
Tools............(5) on the Front - Stationary, (2) on the Rear - X3 Axis Control
4-Spindle Sleeve Holder:
- Number of Tools............Front (5), Rear (5)
- Drilling Capability - Maximum............29/32"
- Tapping Capability - Maximum............M16 x P2.0
Power Driven Attachment:
- Number of Tools............Cross Milling (4), Cartridge Type (At 2 Position)
- Number of Tools (Type A)............Angle Adjustable Power-Driven Tool: At 1 Position (Front 3 tools + Rear 3 Tools)
- Number of Tools (Type B)............B-Axis Controlled Power-Driven Tool Unit: At 1 Position (Front 3 tools + Rear 3 Tools)
- Drilling Capability - Maximum............25/64"
- Tapping Capability - Maximum............M8 x P1.25
- Spindle Speed............Max.6,000min
- Drive Motor............2.95 Hp
Dimensions:
Rapid Feed Rate............36 m/min (X1, Y1, Z, X2, Z2), 24 m/min (Y2, X3)
Main Spindle Indexing Angle............C-Axis Control
Main Spindle Speed............Max.7000min
Main Spindle Motor............10.1 HP (Continuous) / 14.75 Hp (10 min/.25%ED)
Coolant Tank Capacity............66.84 gal
Dimensions............107.9" W x 51.77" D x 83.46" H
Weight............9479.88 Lbs.
Power Comsumption............15.9 KVA

BACKWORKING ATTACHMENT SPECIFICATIONS:
Chucking Diameter - Maximum............1-1/2"
Length for Front Ejection - Maximum............5-7/8"
Parts Projection Length - Maximum............2-3/4"

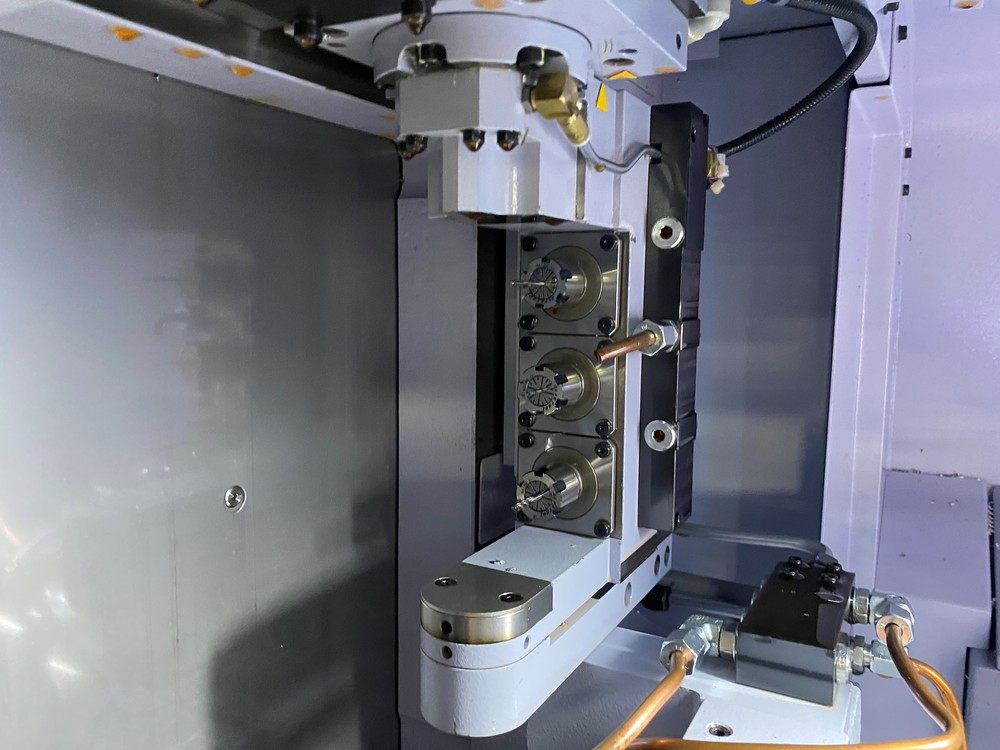

Back 8- Spindle Unit:
- Number of Tools............8
- Stationary Tool Drilling Capacity - Maximum............35/64"
- Power Driven Tool Drilling Capacity - Maximum............8 Tools
- Stationary Tool Tapping Capacity - Maximum............M12 x P1.75
- Power Driven Tool Tapping Capacity - Maximum............M6 x P1.0
Power Driven att. Spindle Speed............Max.6000min
Power Driven att. Drive Motor............1.34 Hp

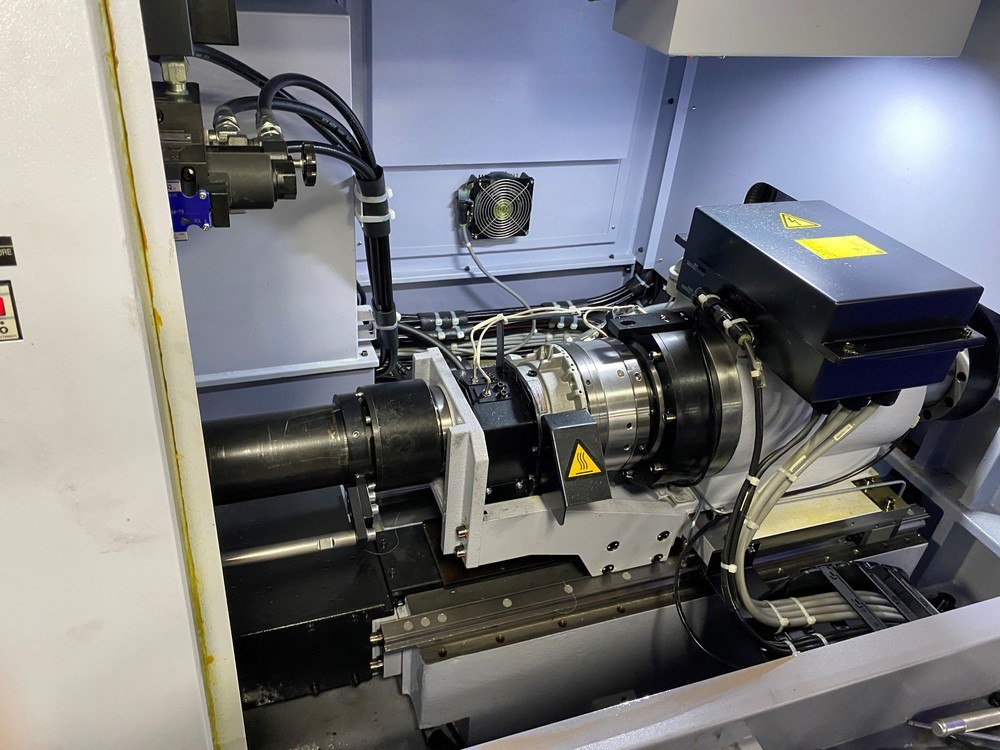

Sub Spindle Indexing Angle............C-Axis Control
Sub Spindle Speed............Max.7000min
Sub Spindle Motor............4.96 HP (Continuous) / 7.38 Hp (10min/40%ED)

EQUIPPED WITH:

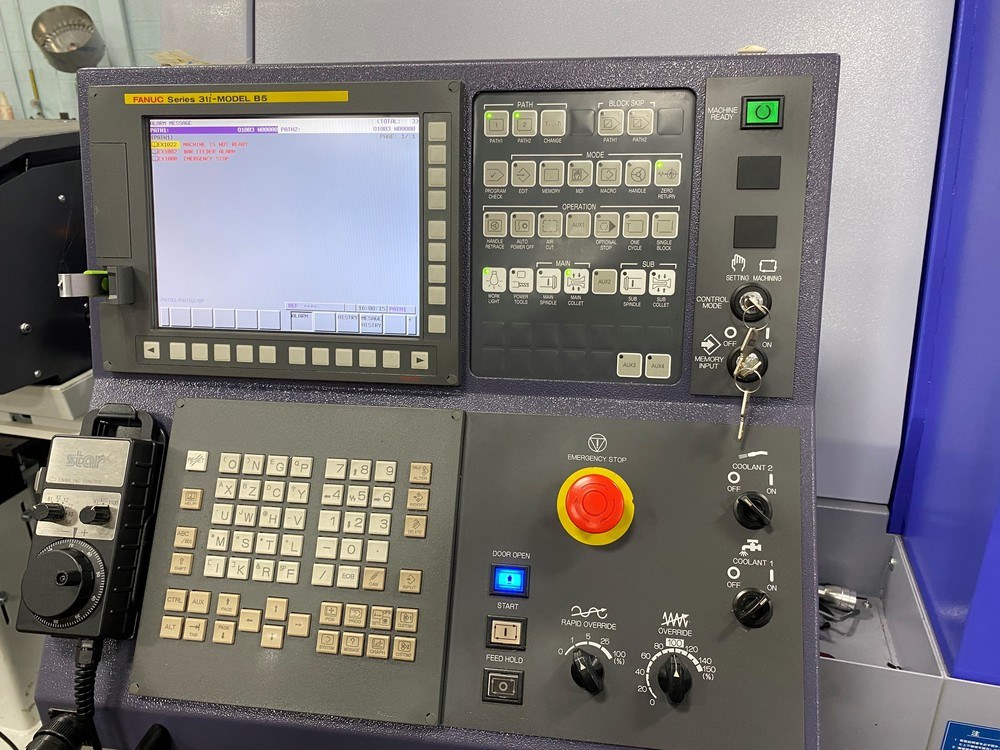

Fanuc 31i-B5 Control

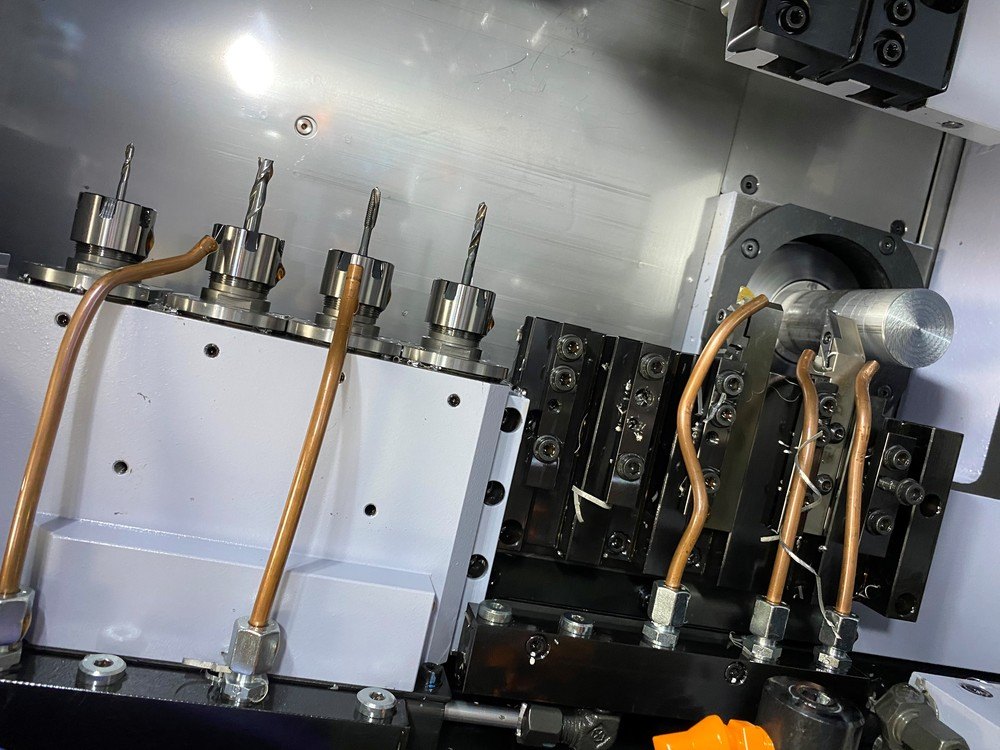

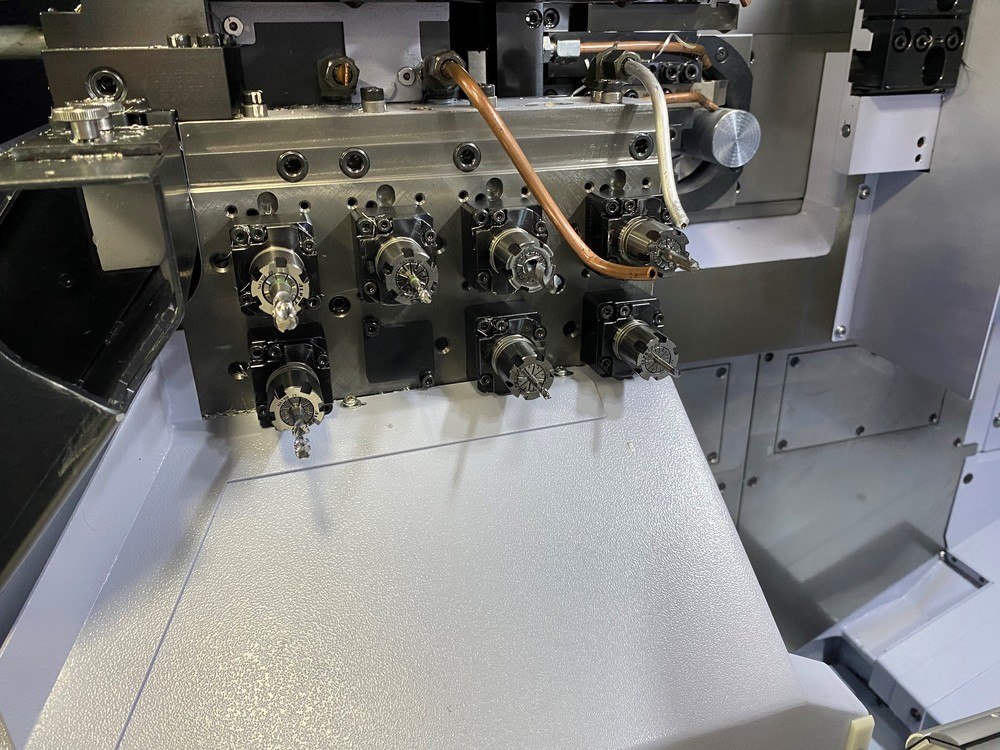

(8) ER-16 Milling Units
Axial Shift Device For C
Pusher Extension Kit

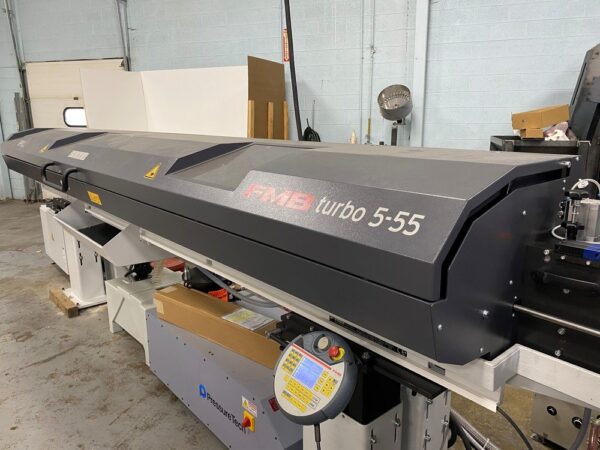

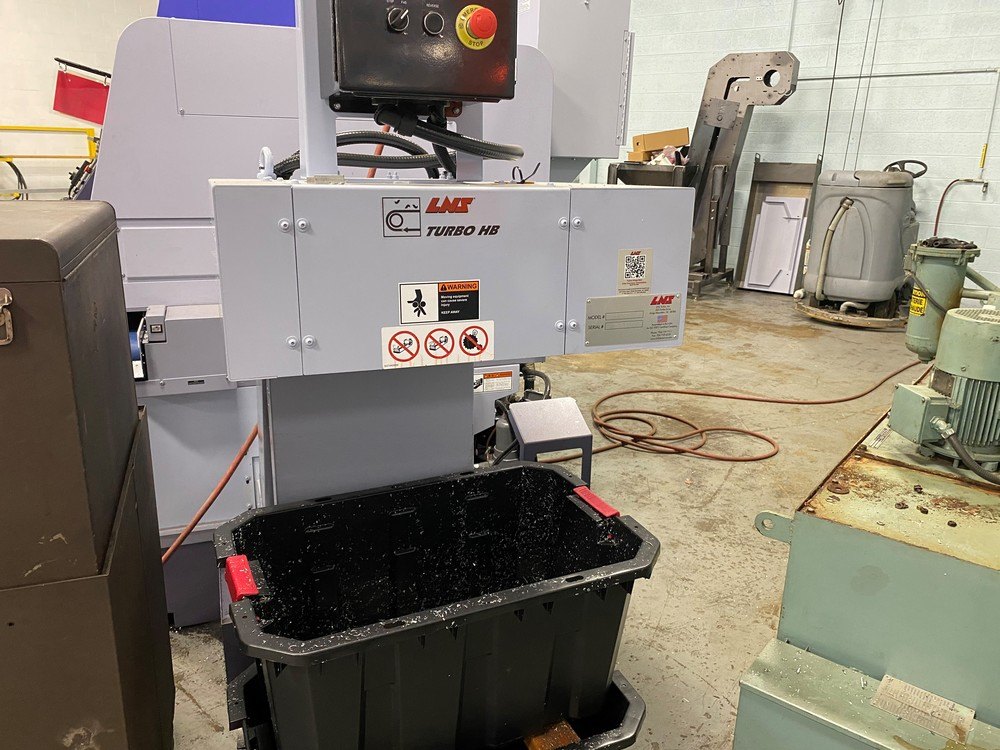

Edge FMB Turbo 5-55 Barfeeder
PressureTech High Pressure Coolant System
Turbo Standard Conveyor

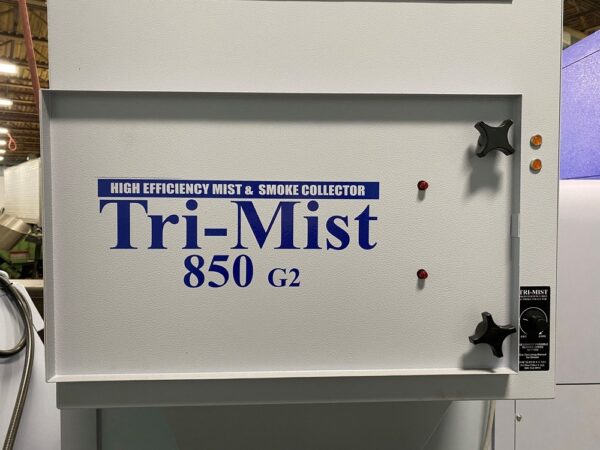

Tri- Mist 850 Gz Mist + Smoke Collector

*Catalog Specifications Subject to Verification
