Studer S30 Lean Pro CNC Universal Three-Wheel Design Cylindrical Grinder | 14" x 40" - #50187

Liberty Machine # 50187 Category Make

Serial No. 022.0092.90.016
New - 1997

SPECIFICATIONS:
Swing - Maximum............13.8"
Center Distance............39.4"
Grinding Length - Maximum............37.8"
Workpiece Weight between Centers - Maximum............286 Lbs.
Longitudinal Slide (Z-Axis):
- Travel - Maximum............41.4"
- Speed - Infinitely Variable............0.000004 - 394 IPM
- Resolution............0.000004"
- Table Swivel - Maximum............5 Deg.
Cross Slide (X-Axis):
- Travel - Maximum............10.8"
- Speed - Infinitely Variable............0.000004 - 394 IPM
- Resolution............0.000004"
Turret Wheelhead:
- Swivel Range (B-Axis).............-15 - 195 Deg.
- Left Grinding Wheel Size............19.7" Dia. x 3.15" Wide x 5" Bore
- Right Grinding Wheel Size............15.75" Dia. x 1.6" Wide x 5" Bore
- Circumfrential Speed............Up To 9,842 SFPM
- ID Spindle Diameter............4"
- ID Spindle Speed............20,000 RPM
"C-Axis"............Standard
Tailstock:
- Taper............Morse No. 3
- Barrel Travel............1.37"
Main Spindle Motor............10 HP
Dimensions - Actual:
- Machine............146"(L-R) x 85"(F-B) x 90"(H)
- Coolant System............96" x 37" x 27"(H)
Machine Weight - Approximate............13,200 Lbs.

EQUIPPED WITH:

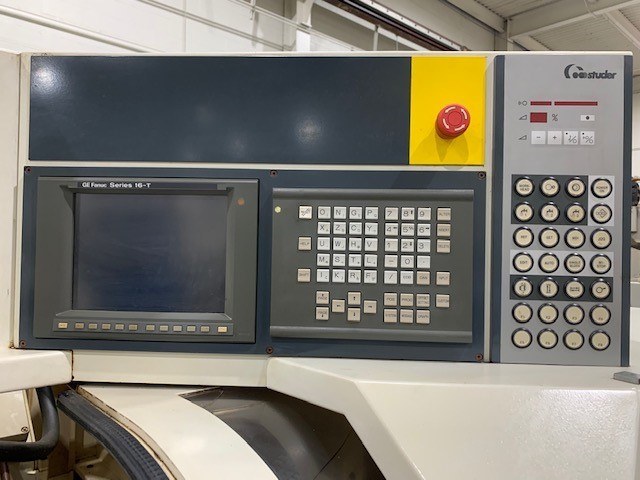

Fanuc 16-T CNC Controller
Three Wheel Design - Left Hand, Right Hand, and ID Spindles
B-Axis
C-Axis
Shoulder Locator
Fortuna FIV45R25044 Max 35000 i/min Spindle
Coolant Filtration System
Full Enclosure, Mist Collector, Transformer

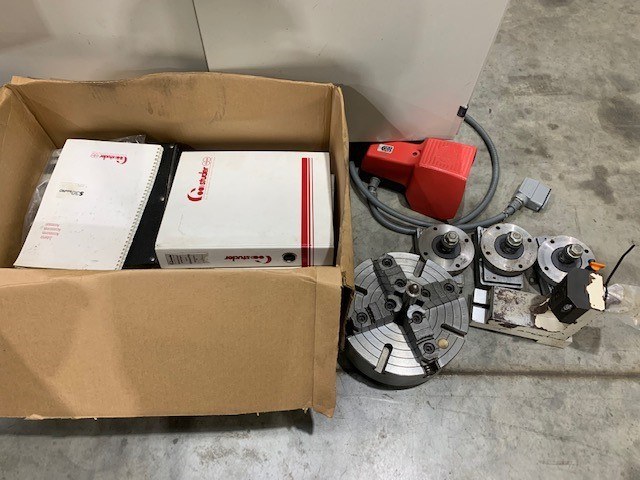

Books, Manuals, and Drawings

*Preliminary Specifications Subject to verification.
