Sugino Jet Clean Center JCC-6535TE | 5000 PSI, 6-Station Turret, 20"X, 12"Y, 12"Z - #50433

Liberty Machine # 50433 Category Make

Sugino Jet Clean Center Model JCC-6535TE High Pressure Deburring, Washing, and Cutting System. The Jet-Clean Center combines a Sugino CNC-based deburring station to remove all types of burrs from complex shaped parts made of many different materials--aluminum, cast iron, stainless steel, plastics and exotics--from a workpiece. It is also used to dislodge and remove compacted chips and debris from blind and tapped holes as well as cross holes and passages. Conventional brush and special deburring tool operations can also be performed on the Sugino Jet Clean Center.

New - 2004
Serial No. JM3041

SPECIFICATIONS:
Pressure…………5000 psi, 35 Mpa
Flow Rate…………7.7 gpm, 29 L/min

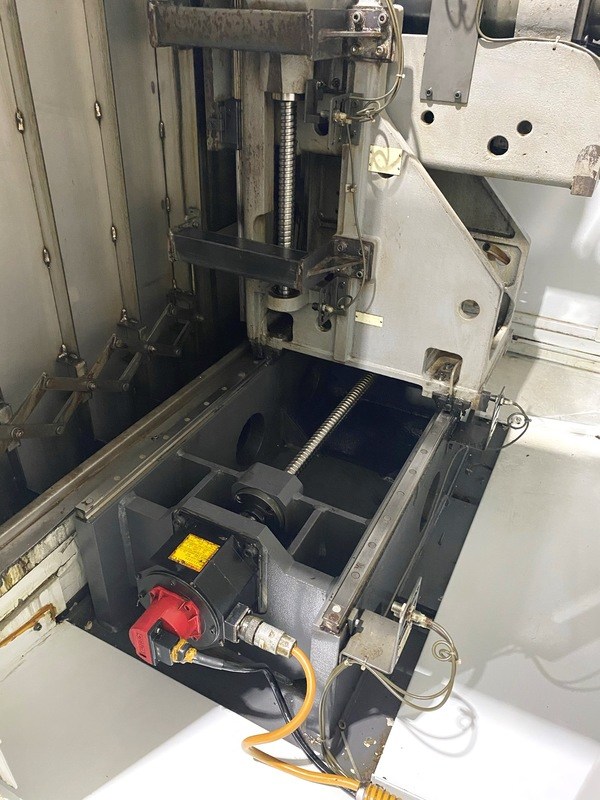

Stroke:
- X-axis…………19.68”
- Y-axis…………11.81”
- Z-axis…………11.81”

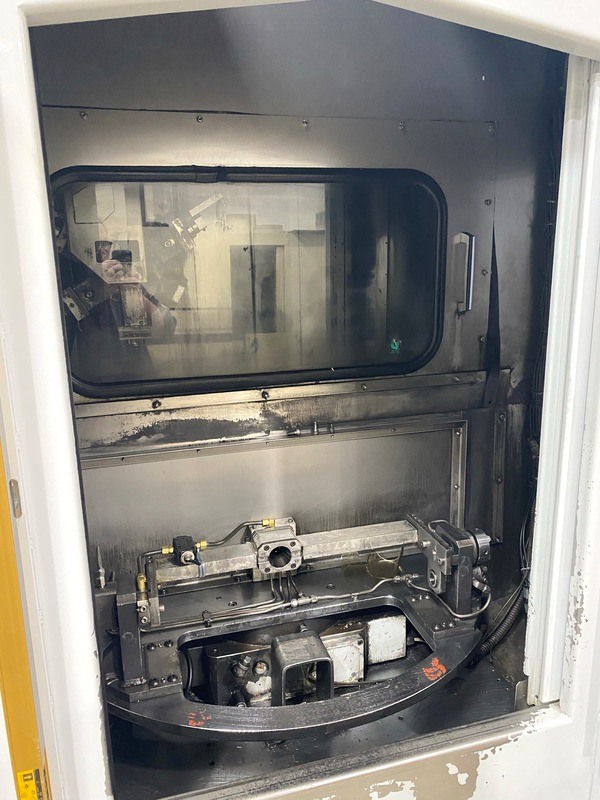

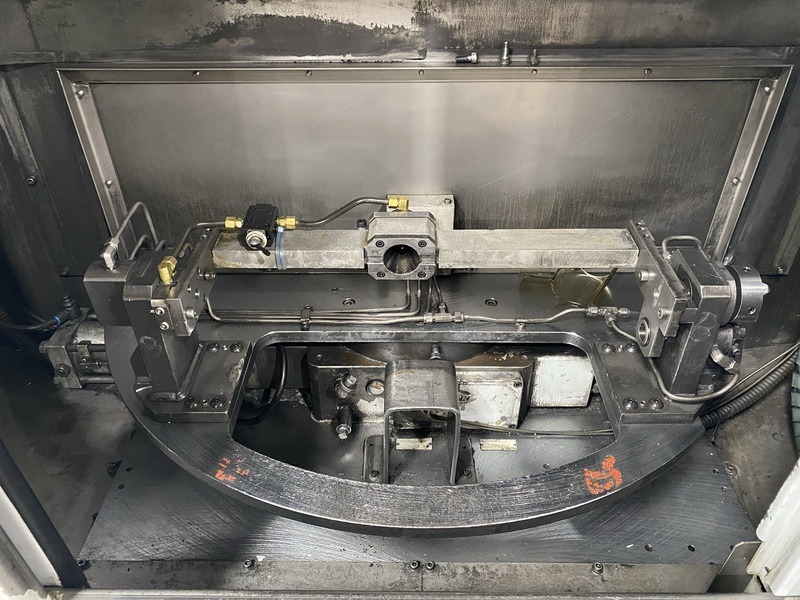

Pneumatic Turntable w/A-axis:
- Positions............0 - 180 - 0
- Diameter............37.4"
- Maximum table load per table side............44lbs

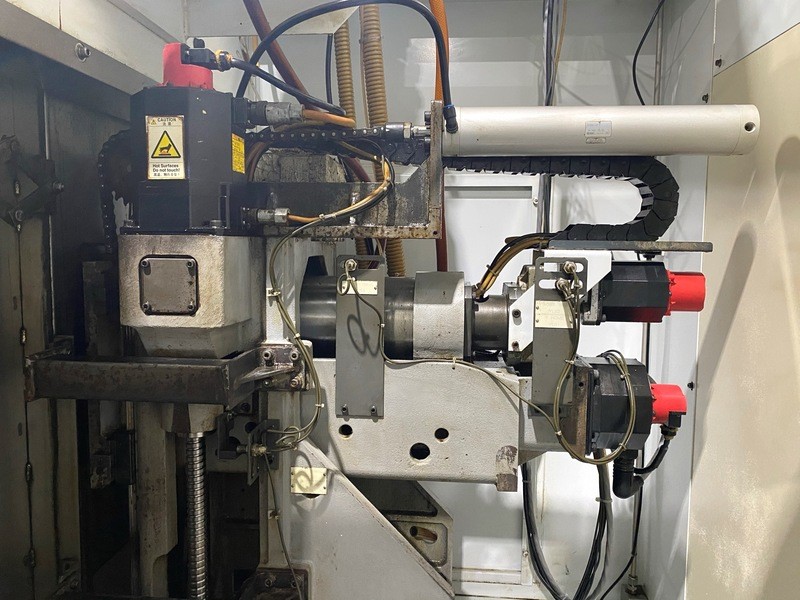

Main Spindle:
- Cutting Speed (Hard Tooling)............1 - 600 RPM
- Washing Speed (w/High Pressure nozzle application)............1 - 150 RPM
- Power AC Spindle............0.67 HP
Rapid Traverse XYZ - Maximum…………98.4 FT/MIN
Working Feed XYZ - Maximum…………32.8 FT/MIN
Stepping Feed (incremental)............0.0039": 0.00039": 0.000039"
Smallest Programmable unit............0.000039"
Full Stroke Positioning Accuracy............0.0031"
Repeatability............+/-0.00191"
Indexing Time............1 second (Random shortest path)

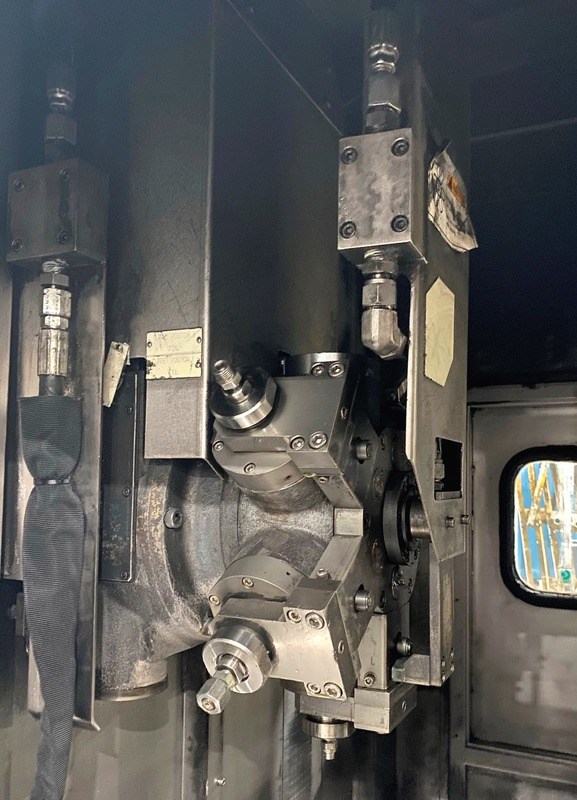

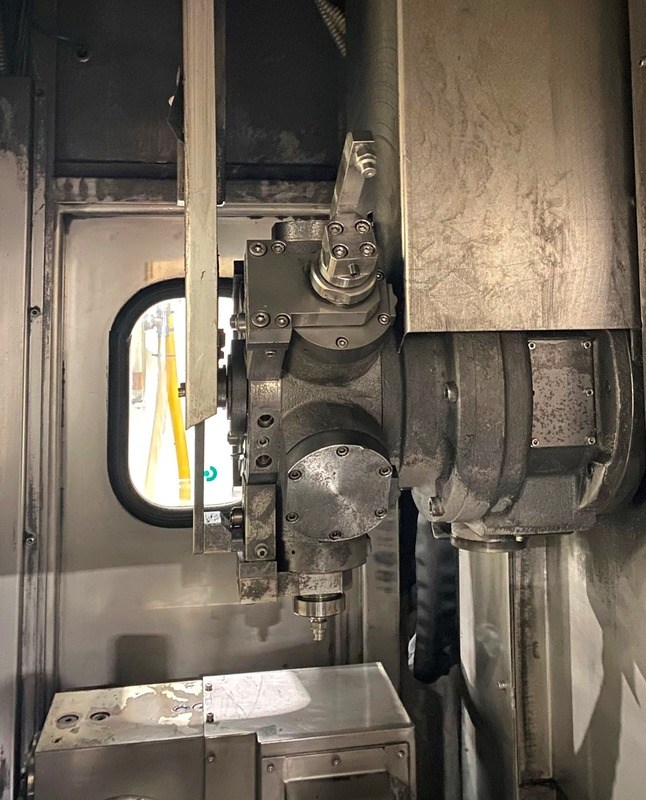

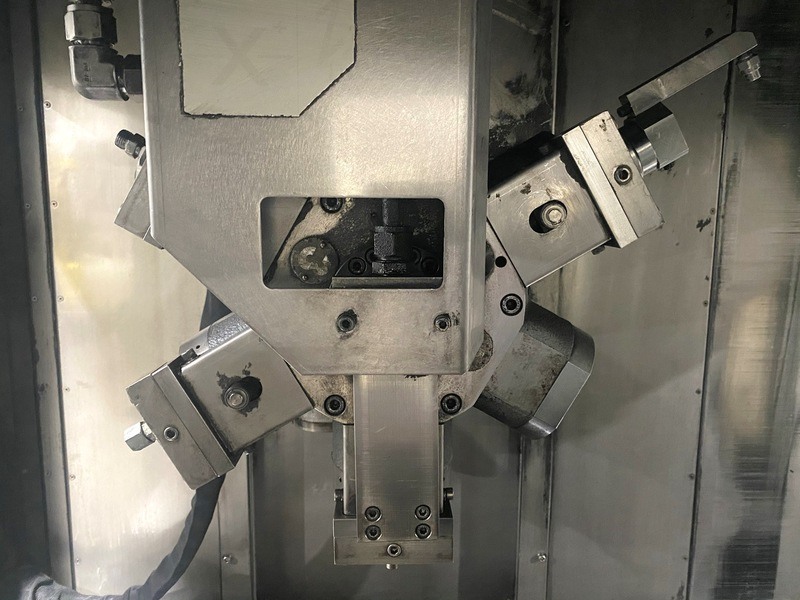

Number of Tools/Nozzles - Maximum............6
Jet Cleaner Pumping Station:
- Capacity of clean water tank............145 gallons
- Capacity of dirty tank............52.8 gallons
Energy Requirements:
- Electrics............208+/- 10% V 3P, 400+/- 10% V 3P, 50/60Hz, 40kVa
- Air Pressure............58 psi
- Compressed Air Consumption............3.53 cfm
Machine Dimensions - Catalog............71.06"W x 178.54"L x 106.29"H
Weight - Catalog............11,023 Lbs

EQUIPPED WITH:

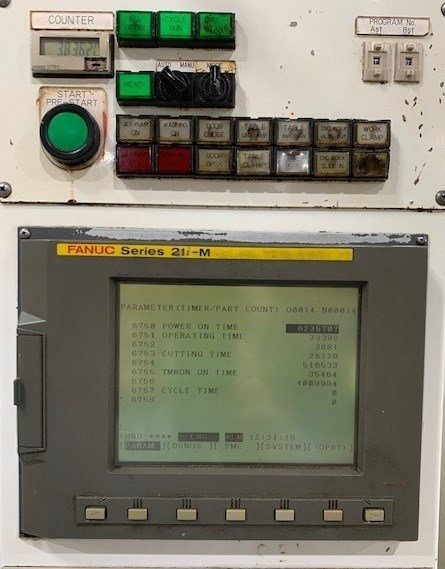

- Fanuc 21i-MB
- 2-Position Turntable w/A-Axis
- Jet Cleaner Pumping Station

*Catalog Specifications Subject to Verification
