Sunnen ML 5000 Power Stroking Horizontal Honing Machine – #50338

Liberty Machine # 50338 Category Make

Sunnen ML 5000 Power Stroking Horizontal Honing Machine

New – 2003
Serial No. 3B1-1012
SPECIFICATIONS:
Diameter Range (ID):
– Manual Stroking…………0.060″ – 6.500″
– Power Stroking…………0.060″ – 4.000″
– Automatic Sizing…………1.25″ – 2.000″
Stroke Length…………0.236″ – 6.700″
Spindle Speeds…………200 – 3000 RPM
Stroke Rate…………60 to 500 SPM
Spindle Motor…………4.1 kW (5.5 HP)
Stroker Motor…………1.1 kW (1.5 HP)
Pump Motor…………0.036 kW (1/2 HP)
Coolant Pump…………11.2 Liters/Minute (3 Gallons/Minute)
Coolant Capacity…………120 Liters (32 Gallons)
Coolant Filtration…………Cartridge Filter, 5 or 10 micron

Sunnen ML 5000 EQUIPPED WITH:

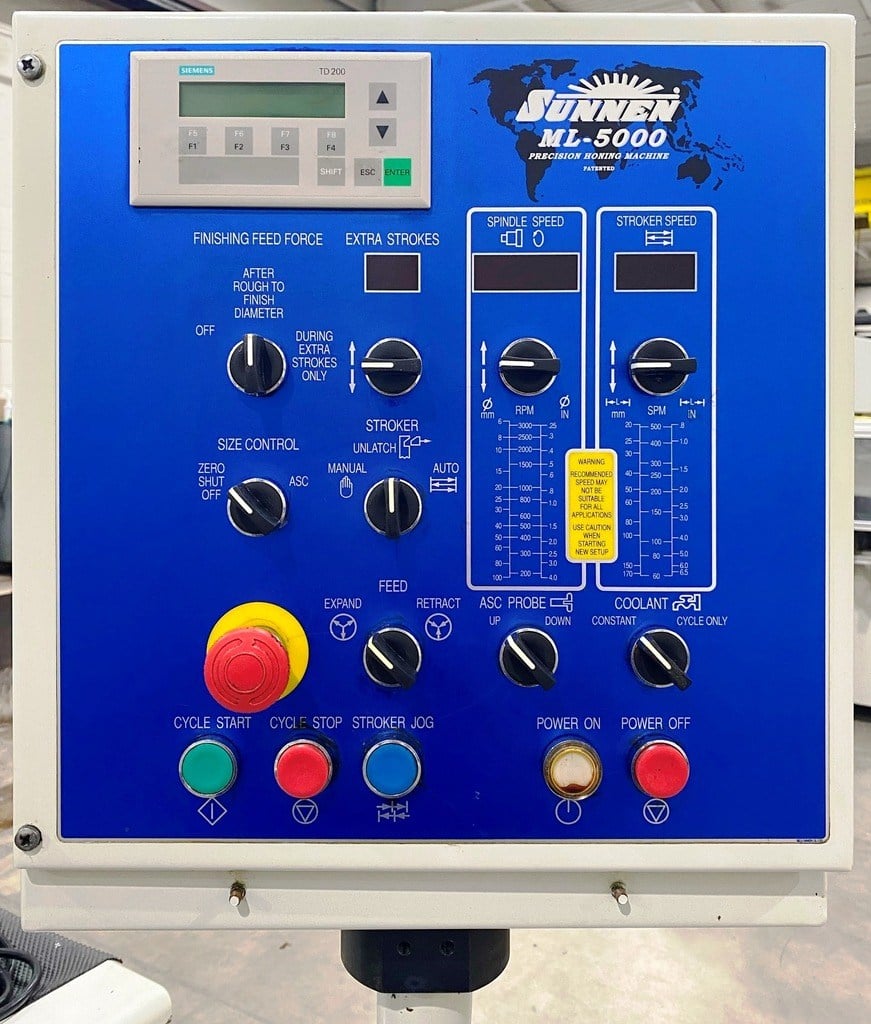

Programmable Stroke Control
Cycle Time Control
Sunnen Automatic Size Control (ASC) w/Probe (Option)
Automatic Stone Wear Compensation
Adjustable Two-Stage Feed Pressure (Settings from 1-16)

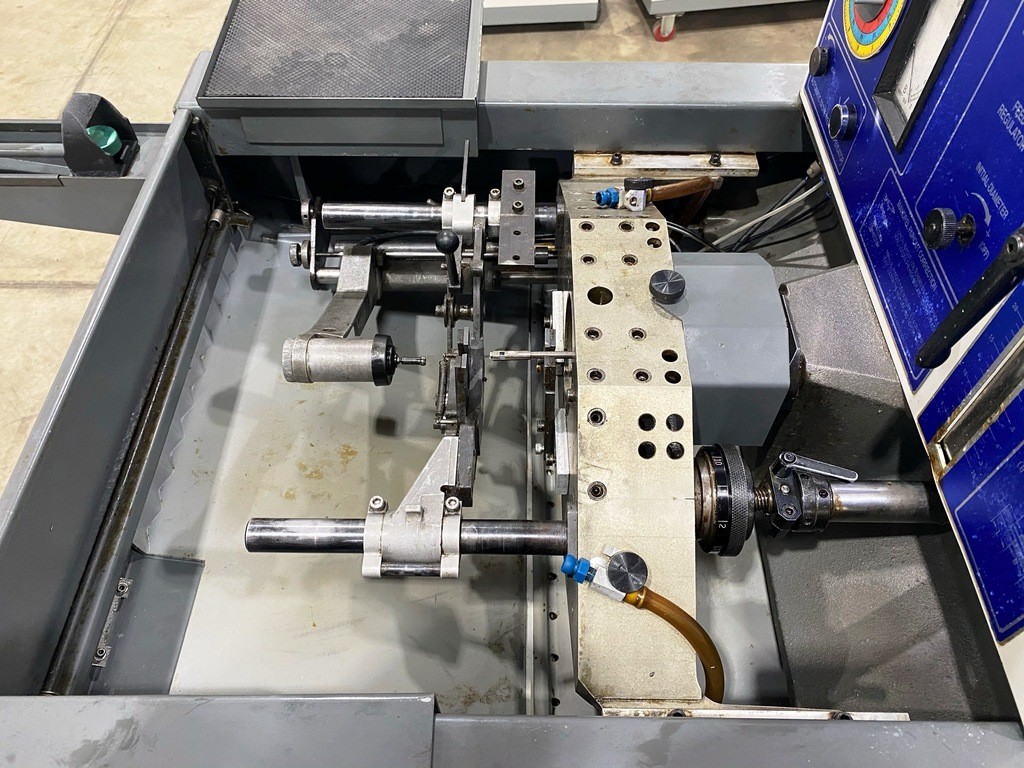

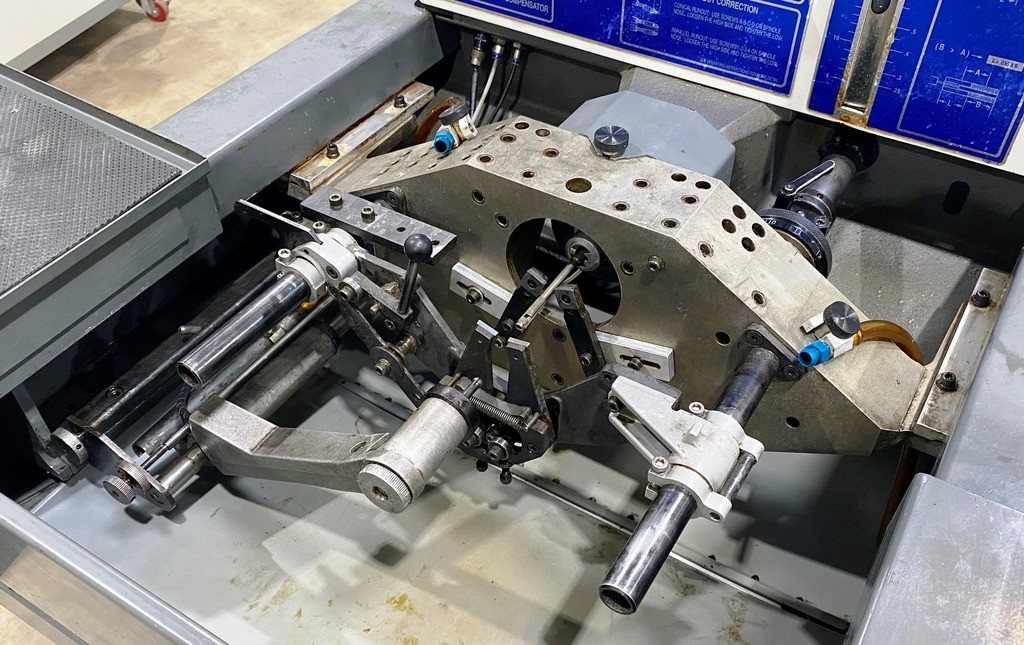

Universal Honing Fixture
Detachable Coolant Cart w/Integral Cartridge Filter (5 or 10 mircon)

*Catalog specifications, subject to verification

Metal honing on a Sunnen ML 5000 is a precision machining process used to improve the surface finish and dimensional accuracy of metal parts. It involves the use of abrasive stones or diamond tools to remove small amounts of material from the surface, resulting in a smoother and more refined finish.

The metal honing process begins with securing the workpiece on a Sunnen ML 5000, which can be a variety of metal components such as cylinders, bores, gears, or tubes. The honing tool, mounted on a spindle, is then passed back and forth along the surface of the workpiece while rotating or reciprocating. The abrasive stones or diamond tools mounted on the honing tool remove material through a combination of cutting and grinding action.

Metal honing offers several benefits in manufacturing and metalworking industries on a Sunnen ML 5000. Firstly, it improves the surface finish by eliminating roughness, machining marks, or imperfections. This enhances the aesthetic appeal of the part and can also improve functionality by reducing friction and wear.

Secondly, metal honing can achieve tight tolerances and precise dimensions. The honing process on a Sunnen ML 5000 allows for fine control over the amount of material removed, ensuring that the final dimensions of the part meet the desired specifications. This is particularly important for parts that require a high level of accuracy, such as engine cylinders or hydraulic components.

Click HERE and HERE to find out more about honing.
